Brand: Santech

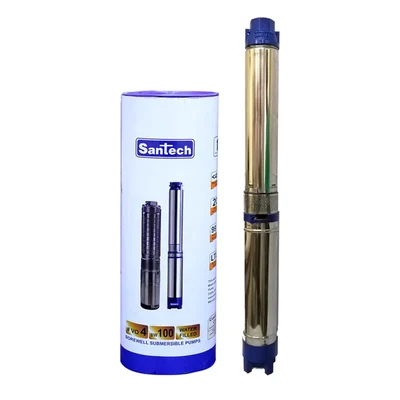

Santech 1.5HP 15 Stage 4 inch(V4) Single Phase Water Cooled Submersible Pump, ISI Marked, 216ft Head - 1 Year Warranty
SKU: TI-S1-17720
MRP : ₹12500
Offer Price : ₹10150 (Including GST)
Get extra ₹152 Discount (On Checkout)
Delivery By: Dec 17 - Dec 19
Qty:
BUY IN BULK
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
Santech 1.5 Hp Single Phase Submersible Pump
15 Stage, 4"(100mm) Borewell Size
66M Max Head, 88 LPM Max. Discharge
ISI & BIS Certified
1 Year Warranty
Country of origin: India
Description
A submersible pump is a device that consists of a hermetically sealed motor close-coupled to the pump body. This entire assembly is submerged in the fluid that needs to be pumped. Santech 4″ STAINLESS STEEL SUBMERSIBLE PUMPSETS are easy to install, efficient and require minimum maintenance. Motors are water lubricated and feature robust thrust bearings. Good quality materials are used to obtain long life and facilitate easy service.
Features
:- The motors are suitable for installation in areas experiencing wide voltages fluctuations.
- Energy efficient motor
- Water filled motor with easily rewindable stator
- Suitable for single phase 230 Volt
- Corrosion resistant stainless steel stator casing
- Energy efficient radial and mixed flow pumps
- Modified PPO 20% glass filled impellers and diffusers
- Stainless steel stage housings (specified models)
- Rubber diaphragm provided at the bottom of the motor to compensate thermal expansion of water
Specification
:- Product Type: Power - 1.5HP
- Brand: Santech
- Product Type : Submersible Pump
- Brand : Santech
- Power : 1.5 HP (1.1 kW)
- Electricity Connection : Single Phase
- Voltage : 230 Volt
- No Of Stage : 15
- Pump Type : V4
- Borewell Size : 4 inch (100 mm)
- Cora : 4
- Head Range : 45 to 66 Meter (147 to 216 Feet)
- Discharge Range : 88 to 55 LPM
- Pipe Size (Suction x Delivery) : 100 x 32 mm
- ISI Certified : Yes
- BIS Certificate Mark : IS8034:2018
- Weight : 22 Kg (Approx.)
Material Of Construction :
- Motor Winding : POLYWRAP Copper Winding
- Motor Body Material : Cast Iron
- Motor Rotor Material : AL.DIE CAST
- Motor Core Length : 200 mm
- Motor Core Quality : CRNO (Cold Rolled Non-Oriented)
- Motor Bearing Bush : LTB 4
- Pump Bush : LTD 4/NITRILE
- Pump Bowl : NORYL 20% GF
- Impeller Material : NORYL 20 % GF
- Motor Pipe Material : Stainless Steel
- Bearing Bush : NITRILE/LTB -4
- Motor Shaft Material : SS. 410
- Thrust Bearing Material : SS/CARBON
- Stamping Material : ELECTRO GRADE
- Rotor Material : ELECTRO GRADE
- Suction/Outlet : C.I
- Diffuser Material : Noryl 20 % GF
- Pump Shaft Material : SS. 410
- Pump Pipe Material : Stainless Steel
Special NOTE :
- All movable parts eg. rotor is protected with a epoxy paint from frozen.
- All casting also protected about cast iron part internally.
Applications
:- Pressure boosting application
- Supply to commercial establishments like Hotels, Lodges and Hospital water supply
- Domestic Water Supply
- Fire Fighting
- Small Farms.
WARRANTY :
- 1 Year Warranty on Manufacturing Defects Only
