Brand: Kirloskar

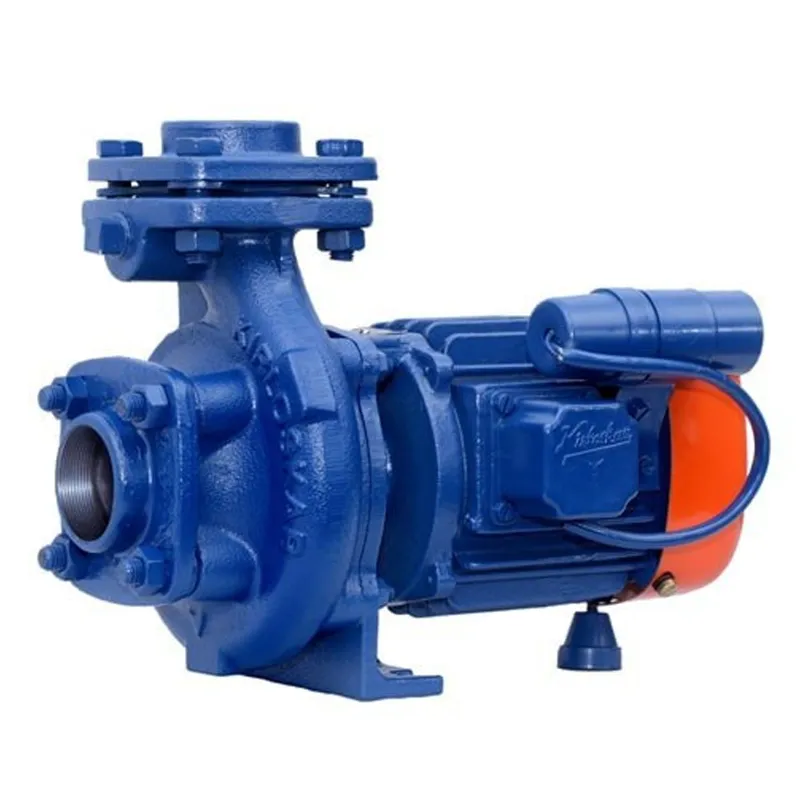

Kirloskar 1.5 HP Single Phase Centrifugal Monoblock Pump, 22m Head, 50X40mm (KDS 1.522) - 1 Year Warranty
SKU: TI-K1-20250
MRP : ₹18780
Offer Price : ₹13999 (Including GST)
Get extra ₹210 Discount (On Checkout)
Delivery By: Dec 25 - Dec 27
Qty:
BUY IN BULK
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
Kirloskar 1.5 Hp Centrifugal Monoblock Pump (KDS 1.522)
Single Phase
22M Max. Head, 378 LPM Max. Discharge
1 Year Warranty
Country of origin: India
Description
A centrifugal monoblock pump is a type of pump that is characterized by its compact and self-contained design, where the pump, motor, and drive shaft are combined into a single unit. Centrifugal monoblock pumps are commonly used in various applications such as water supply, irrigation. These pumps operate based on the principle of centrifugal force, where the rotation of the impeller creates a centrifugal force that pushes the water towards the outer edges of the pump casing, resulting in increased pressure and flow rate.
Features
:- Wide Voltage Design : The motor is designed to withstand wide voltage fluctuations reduces motor burning in case of low voltage.
- Replaceable Wearing Parts : All wearing parts within the pumps are easily accessible and replaceable which facilitates ease of maintenance thereby extending the life of the pump.
- TOP - Thermal Overload Protector : The pumpset features a Thermal Overload protector that protects the motor from overloading, shielding the motor and associated circuit from the effects of fault current.
- CED – Cathodic Electro Deposition : CED is the latest coating technology for corrosion resistance with uniform coating. It provides 5 times more protection over conventional painting, resulting in longer life. All major CI parts of Kirloskar pumps coming in contact with the water are CED coated.
- Automatic Air Release : Automatically releases air when the pump starts which ensures swifter and smoother operations, thus eliminates the necessity of operating air release cock and ensures swifter and smoother operations.
- High Efficiency And Energy Saving Design : Innovative design manufactured at state of art plant, delivers optimum efficiency at lower energy consumption resulting in significant cost savings.
- Dynamically Balanced Rotating Parts : Minimum vibrations protect components from damages during the operations, thus ensuring consistent performance as concentricity is maintained.
- Designed to Prevent Overloading : Lesser chances of motor burning as the motor does not get overloaded even if the pump is operated at a head lower than recommended, thus ensuring substantial cost savings due to low maintenance and breakdown.
Specification
:- Product Type: Power - 1.5HP
- Brand: Kirloskar
- Power : 1.5 hp
- Weight (Approx.) : 32 kg
- Model No. : KDS 1.522
- Product Type : Monoblock Pump
- Brand : Kirloskar
- Power : 1.1 kW
- Electricity Connection : Single Phase
- Rated Voltage : 210 Volt, 50 Hz
- NO Of Pole : 2
- Head Range : 8 to 22 Meter (26 to 72.2 Feet)
- Discharge Range : 378 to 108 LPM (22680 to 6480 LPH)
- Pipe Size (Suction X Delivery) : 50 x 40 mm
Material Of Construction :
- Impeller : Cast Iron
- Delivery Casing : Cast Iron
- Motor Body : Cast Iron
- Pump Shaft : Carbon Steel
- Sealing : Gland Packed
Applications
:- Gardening and small farm irrigation
- Water transfer and circulation
- Air conditioning and refrigeration systems
- Cooling towers
- Clear water handling at high pressure in industries
- Fire fighting systems
WARRANTY :
- 1 Year Onsite Warranty
Shipping Weight & Dimensions
:Verified Package Dimensions
(L X W X H)
: 51.5 cm X 29 cm X 35 cm
Package Weight
:
32.73 Kg
