Brand: CRI

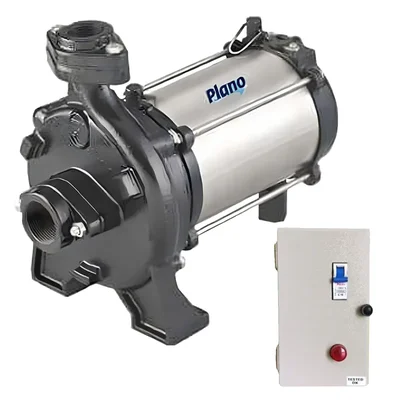

CRI 1.5 Hp Single Phase Openwell Submersible Pump With Control Panel, 39m Head (PLANO 150) - 1 Year Warranty
SKU: TI-C1-20197
MRP : ₹25000
Offer Price : ₹18800 (Including GST)
Get extra ₹282 Discount (On Checkout)
Delivery By: Dec 20 - Dec 22
Qty:
BUY IN BULK
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description

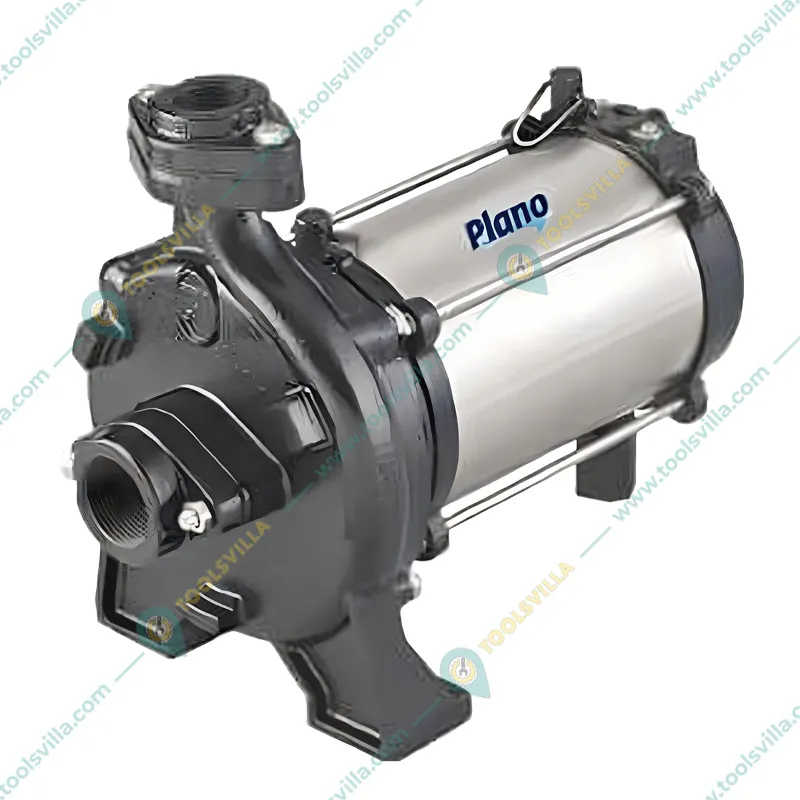

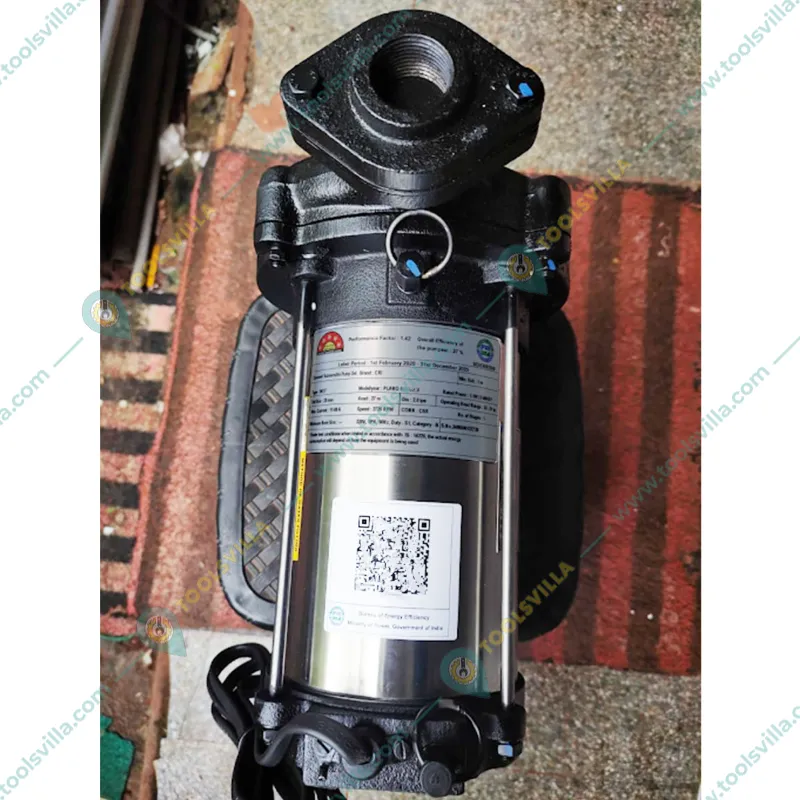

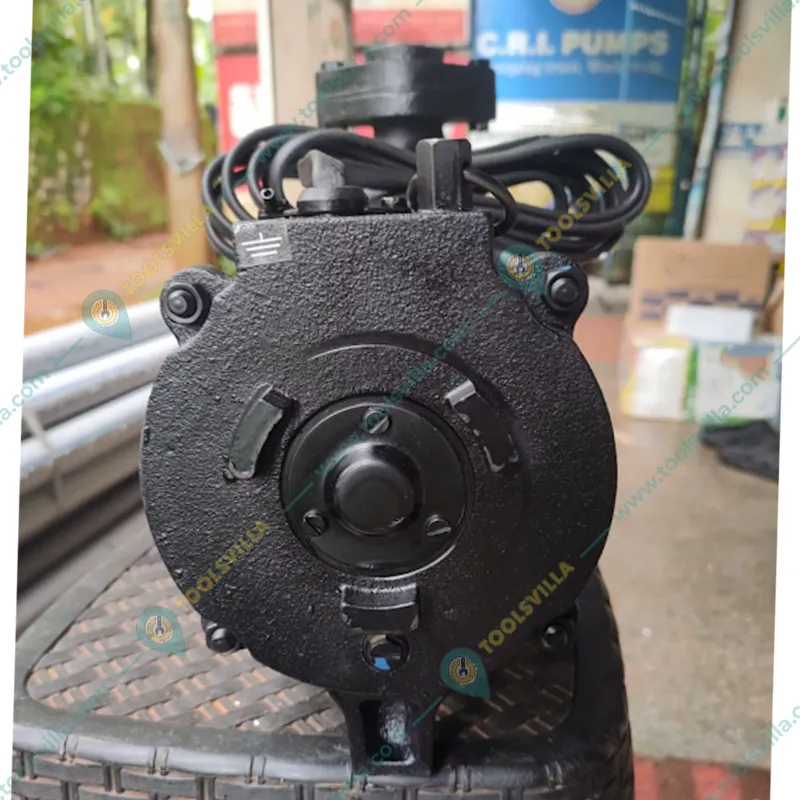

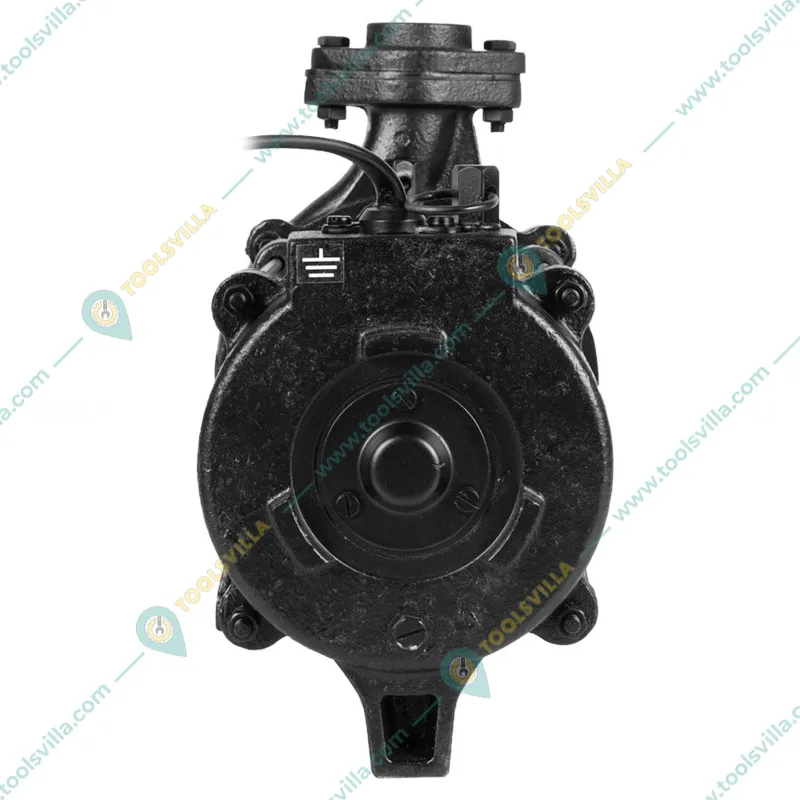

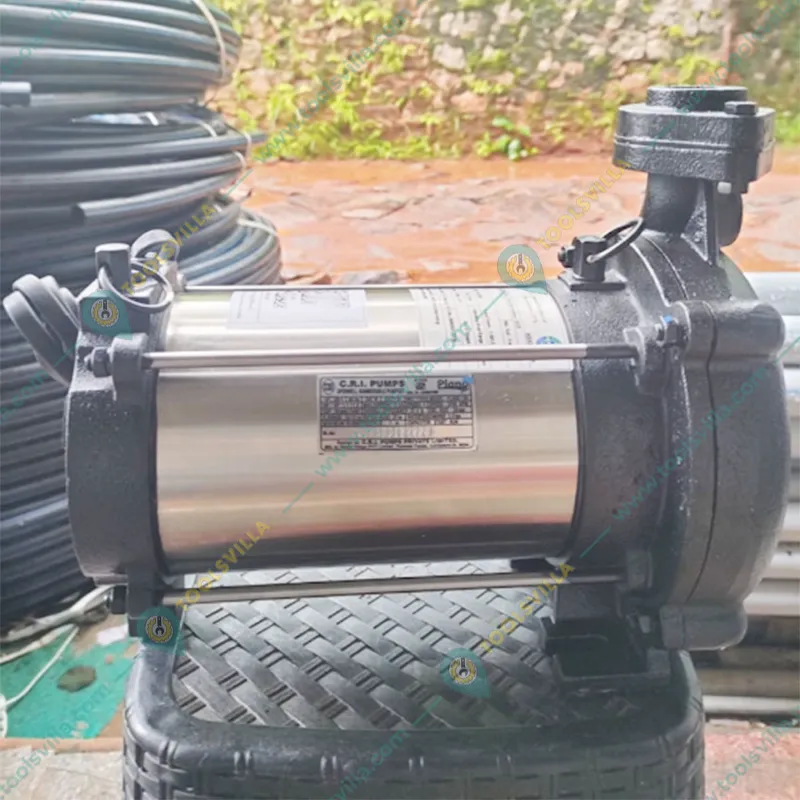

CRI 1.5 Hp Horizontal Openwell Submersible Pump (PLANO 150)
39m Max. Head, 168 LPM Max, Discharge
Control Panel is included with this openwell pump
1 Year Warranty
Country of origin: India
Description
Openwell submersible pumps are a type of water pump that is completely submerged and sealed. These pumps are typically installed at the bottom of underground tanks or reservoirs and are connected to a power source for operation.
C.R.I. Horizontal Openwell Submersible Pumpsets are ideally suitable for Openwell / Tanks where a wide fluctuation of water level occur. The pumpset works underwater and rest at the bottom of the well or Tank. Hence suction and priming problem will not arise. The optimal design of impellers and diffusers enables the best possible hydraulic efficiency. Motor sealing is made by polymers, 'O' rings, oil seals and sand guard to avoid ingress of well water/sand into the motor. Pressure equalizing rubber diaphragm is provided to guard the motor from pressure and volume variation of water inside the motor.
Features
:- Rigid Construction
- Long Durability
- High Operating Efficiency
- Stainless Steel Motor body
- Motor is Designed With Higher Cooling Effect to Ensure the Life.
- Easy to Dismantle & Repair
Specification
:- Product Type: Power - 1.5HP
- Brand: CRI
- Model No : PLANO 150
- Product Type : Horizontal Openwell Submersible Pump
- Brand : C.R.I.
- Power : 1.5 Hp (1.1 kW)
- Electricity Connection : Single Phase
- Rated Voltage : 220 - 240V, 50Hz, A.C. Supply
- Head Range : 39 to 16 Meter (128 to 52.5 Feet)
- Discharge Range : 30 to 168 LPM (1800 to 10080 LPH)
- Winding Material : Copper
- Outlet Size : 32 X 25 mm
- Type of Duty : S1 (Continuous)
- Speed : 2880 RPM
- Weight : 30 Kg (Approx.)
Material Of Construction :
- Motor Body : SS 304
- Impeller : Cast Iron/ Noryl/ SS 304/ High Tensile Brass

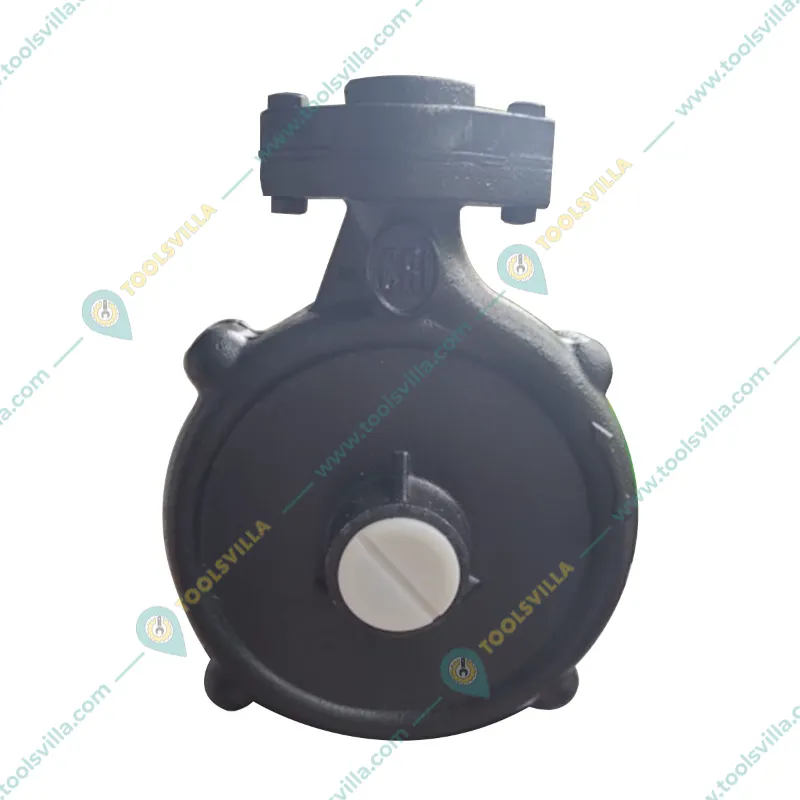

- Casing : Cast Iron
- Rear Cover : Cast Iron
- Shaft : SS 410
- Front Bracket : Cast Iron
- Shaft Seal : Nitrile Butyl Rubber
- Diaphragm : High Nitrile Rubber
Accessories

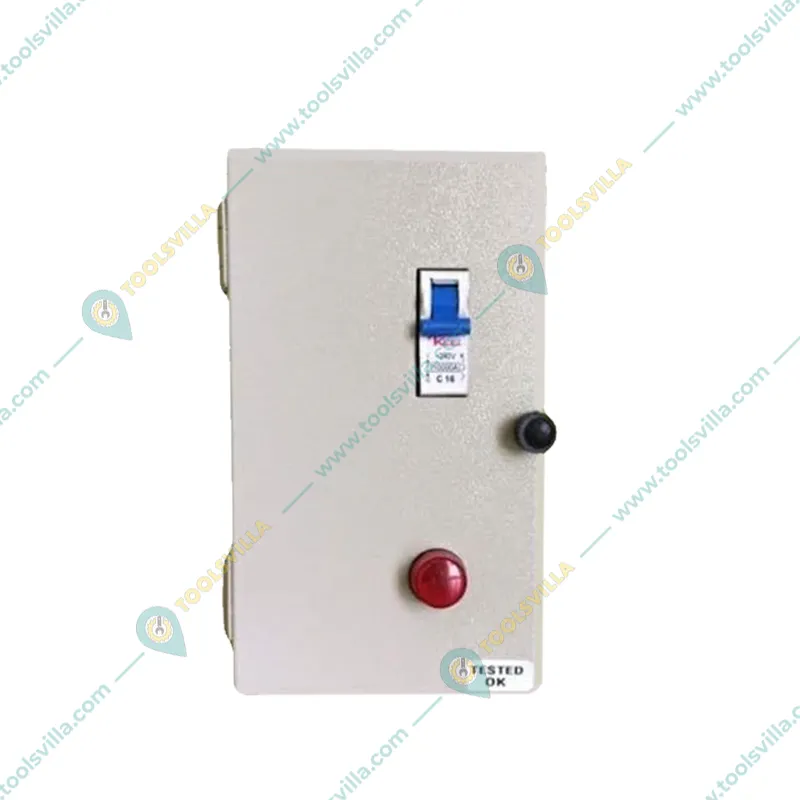

:- Control Panel
Applications
:- Openwell submersible pumps are used in many different industries. These include firefighting, offshore drilling rigs. They are also used in underground storage tanks and reservoirs, swimming pools, cooling water circulating systems, industrial irrigation.
