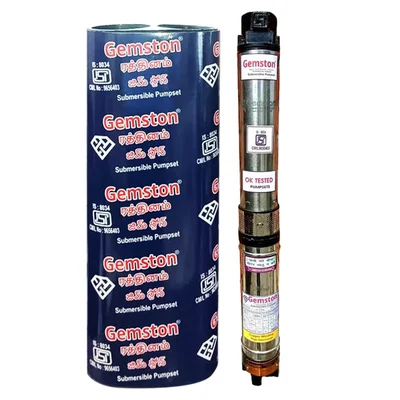

Gemston 1.5 HP 12 Stage(4 inch) V-4 Single Phase Water Filled Submersible Pump, 48M Max. Head, 5000 LPH (1 Year Warranty)

Easy Return
& Refund

Quality
Assurance

Trusted
Delivery

After Sales
Assistance

Buyer
Protection

Short Description

GEMSTON 1.5 HP 12 Stage Submersible Pump

48M Max. Head

5000 LPH Max. Discharge

1 Year Warranty

SPECIAL NOTE : THIS BOREWELL SUBMERSIBLE PUMP WORKS ON AC ELECTRIC POWER SUPPLY AND IS NOT COMPATIBLE WITH SOLAR PANEL SYSTEMS.

Country of origin: India

Description

Gemston 1.5 HP 12 Stage(4 inch) V-4 Single Phase Water Filled Submersible Pump, 48M Max. Head, 5000 LPH (1 Year Warranty)

Features :

• Compact designed, High Operating Efficiency.
• The voltage range is 160 - 220 Volts protects the motor from burning due to lower/higher voltage
• Higher output, lesser power consumption
• ISI Certified.
• IS : 8034
• CM/L : 9656403

Specification :

• Product Type : Submersible Pump
• Brand : GEMSTON
• Wattage : 1.1 kW
• Electricity Connection : Single Phase
• Rated Voltage Range : 160-220 Volt, 50 Hz, AC Power Supply
• Current Rating : 8 Amp
• No Of Stages : 12
• Cora : 5
• Type : V-4
• Delivery : 1.25 Inch (31.75 mm)
• Max. Head : 48 Meter (158 Feet)
• Max. Discharge Rate : 5000 LPH (83 LPM)
• Borewell Size : 100 mm (4 Inch)
• Outlet Pipe Size : 1.5 Inch (38.1 mm)
• Winding Material : 100% Copper
• Cooling Type : Water Filled

Material Of Construction :

• Thrust Bearing : Carbon
• Pump Housing : Stainless Steel
• Pump Shaft : Stainless Steel
• Motor Housing : Stainless Steel
• Motor Shaft : Stainless Steel
• Motor/Pump Bushes : Gun Metal
• Impeller : Noryl
• Diffuser : Noryl
• Non Return Valve (NRV) : Cast Iron

Applications :

• Domestic and community water supply.
• Rural water supply
• Gardening and small farm irrigation.
• Construction site.
• Water supplies for high rise building.

Warranty :

• 1 Year Replacement Warranty On Manufacturing Defects Only

Warranty Terms :

• Dry Run Accidental Damages Are not covered in the warranty
• For claiming the warranty please drop a mail at [email protected] with proper bill or Order ID
• You have to send the product to the sellers warehouse.
• Buyer has to bear the courier charges of both side for sending the product.

Specifications

 :

• Brand: Gemston
• Power : 1.5 hp
• Weight (Approx.) : 18 kg
• Flow Rate : 83 lpm
• Head : 48 meter
