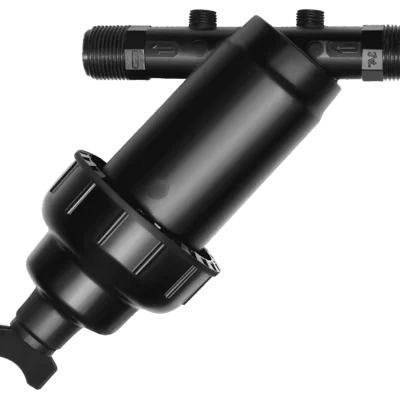

Automat Manual Disc Filter Y-Type 1.5 inch for Small Farm Holdings
SKU: JS-HA-2021191
Price : ₹1800 (Including GST)
Get extra ₹27 Discount (On Checkout)
Delivery By: Jan 2 - Jan 4
Qty:
BUY IN BULK
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
Y Type Manual Disc Filter for Irrigation
1.5 inch (3.81 cm approx) Size
Automat
Country of origin: India
Description
Disc filter is a type of water filter, primarily used in Irrigation.
The filter cartridge is made of a number of plastic discs stacked on top of each other like a pile of proper chips.
The discs (or rings) each have a hole in the middle, forming a hollow cylinder in the middle of the stack.
The water passes through the small passages in between and the impurities are trapped behind.
The filter cartridge is made of a number of plastic discs stacked on top of each other like a pile of proper chips.
The discs (or rings) each have a hole in the middle, forming a hollow cylinder in the middle of the stack.
The water passes through the small passages in between and the impurities are trapped behind.
Features
:- Disk filters designed for Outside to Inside flow.
- Auxiliary Connections : Two pressure gauge ports with 1/4" male threaded connections.
- Filter body and cap connected by threaded connection to sustain high pressure and easy opening and closing.
- High filtration Efficiency.
- Spring loaded Disc cartridge for uniform compression of Disks.
- UV Protected, chemical and high pressure resistant reinforced plastic material used.
Specification
:- Product Type: Disc Filter
- Brand: Automat
- Model No : HT-133YM
- Size : 1.5 Inch (3.81 cm approx)
- Material : Reinforce Polypropylene
- Max. Working Pressure : 8 kg/cm2
- Inlet/ Outlet Connection : 1.5 Inch (3.81 cm approx) BSP Male Threaded
- Range of Flow Rate : 12-16 m3/hr
- Recommended Flow : 15 m3/h (250 ltr/min)
- Filtration Surface Area : 409 cm2
- Distance between End Connections : 237 mm
- Filter Height : 320 mm
- Filter Width : 128 mm
- Cartridge Diameter : 70 mm
- Cartridge Length : 208 mm
- End Plug : 3/4 Inch (1.905 cm approx) Female Threaded
- Available Mesh : 120 Mesh
Applications
:- Household Water filtration
- Agriculture Irrigation
- Green Hose and small Farm Holdings
- Drip Irrigation
- Municipal Garden Irrigation
- Industrial Filtration
- Garden Lawn
Shipping Weight & Dimensions
:Verified Package Dimensions
(L X W X H)
: 36.83 cm X 15.24 cm X 22.86 cm
Package Weight
:
1.14 Kg
