Brand: Kirloskar

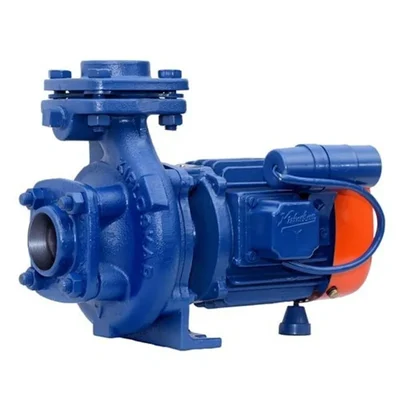

Kirloskar 1HP Single Phase Centrifugal Monoblock Pump, 14m Head, 25200 LPH, 50x50 mm (KDS 113 LPLV) - 1 Year Warranty
SKU: TI-K1-18025
MRP : ₹18900
Offer Price : ₹12699 (Including GST)
Get extra ₹190 Discount (On Checkout)
Delivery By: Dec 27 - Dec 29
Qty:
BUY IN BULK
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
Kirloskar 1 HP Single phase Monoblock Pump (KDS 113 LPLV)
14 Meter Max. Head
420 LPM Max. Discharge
1 Year Warranty
Country of origin: India
Description
The Kirloskar single-phase monoblock pump is specifically designed for use in agriculture to cater to the irrigation needs of farmers. These pumps are known for their efficiency, reliability, and durability, making them a popular choice among farmers.
Features
:- Wide Voltage Design : The motor is designed to withstand wide voltage fluctuations and reduces motor burning in case of low voltage.
- Replaceable Wearing Parts : All wearing parts within the pumps are easily accessible and replaceable which facilitates ease of maintenance thereby extending the life of the pump.
- TOP - Thermal Overload Protector : The pump set features a Thermal Overload protector that protects the motor from overloading, shielding the motor and associated circuit from the effects of fault current.
- CED – Cathodic Electro Deposition : CED is the latest coating technology for corrosion resistance with uniform coating. It provides 5 times more protection over conventional painting, resulting in longer life. All major CI parts of Kirloskar pumps coming in contact with the water are CED coated.
- Automatic Air Release : Automatically releases air when the pump starts which ensures swifter and smoother operations, thus eliminates the necessity of operating air release cock and ensures swifter and smoother operations.
- High Efficiency And Energy Saving Design : Innovative design manufactured at state of art plant, delivers optimum efficiency at lower energy consumption resulting in significant cost savings.
- Dynamically Balanced Rotating Parts : Minimum vibrations protect components from damages during the operations, thus ensuring consistent performance as concentricity is maintained.
- Designed to Prevent Overloading : Lesser chances of motor burning as the motor does not get overloaded even if the pump is operated at a head lower than recommended, thus ensuring substantial cost savings due to low maintenance and breakdown.
Specification
:- Product Type: Power - 1HP
- Brand: Kirloskar
- Power : 1 hp
- Weight (Approx.) : 29 kg
- Model No : KDS 113 LPLV
- Product Type : Monoblock Pump
- Brand : Kirloskar
- Motor Power : 0.75 kW
- No Of Pole : 2
- Rated Voltage : 160 V, 50 Hz, AC Power Supply
- Electricity Connection : Single Phase
- Head Range : 8 to 14 Meter
- Discharge Range : 420 to 126 LPM (25200 to 7560 LPH)
- Pipe Size (Suction X Delivery) : 50 x 50 mm
Materials of Construction :
- Impeller : Cast Iron/Nory
- Delivery Casing : Cast Iron
- Motor Body : Cast Iron
- Pump Shaft : Carbon Steel
- Sealing : Mechanical Seal
Applications
:- Gardening and small farm irrigation
- Lawn sprinklers
- Water supply for high rise buildings
- Domestic and community water supply
- Water transfer and circulation
WARRANTY :
- One Year Onsite Warranty.
Shipping Weight & Dimensions
:Verified Package Dimensions
(L X W X H)
: 46 cm X 28 cm X 34 cm
Package Weight
:
29.61 Kg
