Brand: CG Power and Industrial Solutions Ltd.

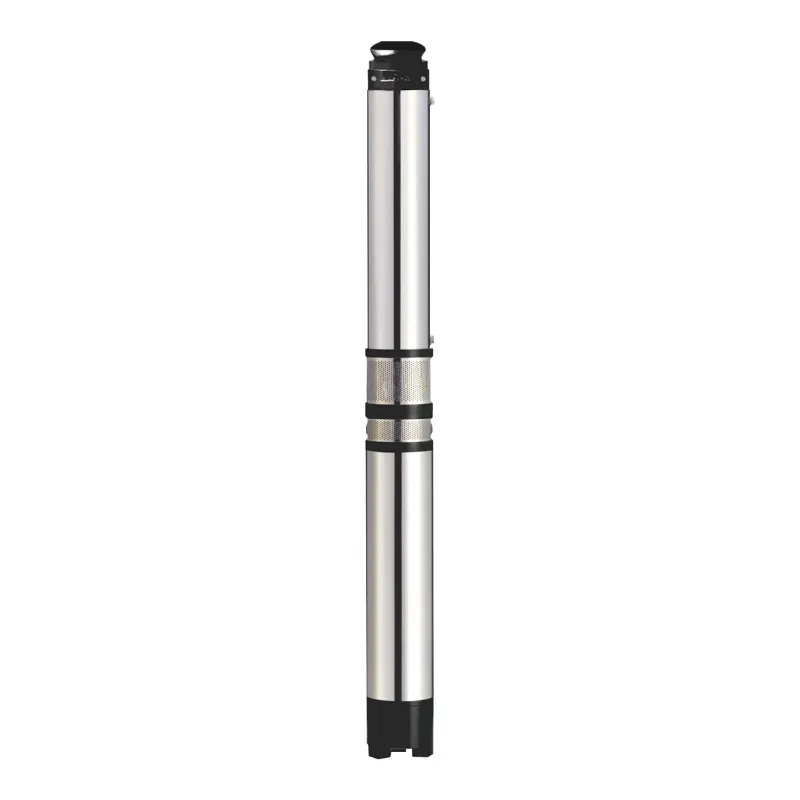

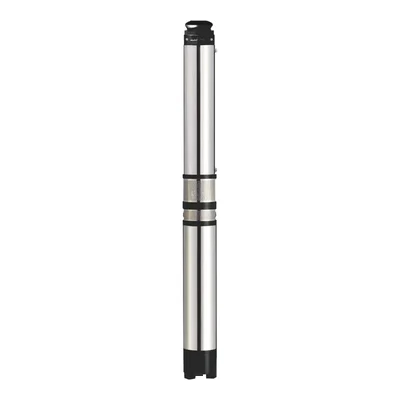

CG Power 1Hp 80mm(3 inch) 12 Stage 1Phase Water Filled Borewell Submersible Pump - 1 Year Warranty (V3W1012C1-FA/AF)
SKU: TI-CP-23372
MRP : ₹14500
Offer Price : ₹11800 (Including GST)
Get extra ₹177 Discount (On Checkout)
Delivery By: Dec 16 - Dec 18
Qty:
BUY IN BULK
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
CG Power (V3W1012C1-FA/AF) 1Hp 1Ph 12 Stage Borewell Submersible Pump
45m Max. Head, 80 LPM Max. Flow Rate
3 inch Borewell, 12 Stage
1 Year Warranty
Country of origin: India
Description
CG Power V3W1012C1-FA/AF borewell submersible pump is a type of submersible pump specifically designed for use in boreholes or wells. These pumps are submerged deep into the water source, such as a borewell, to efficiently lift water to the surface. Whether you have a small-scale farm or a large plantation, there's a suitable model to match your requirements. Moreover, the pump is designed for ease of installation and operation, with user-friendly features that simplify setup and maintenance tasks. Additionally, it incorporates safety mechanisms to protect against overheating, overloading, and other potential issues, ensuring reliable and trouble-free operation.
Features
:- Designed for high efficiency water lifting
- Cast Iron Components are CED Coated
- Copper Rotor.
- Wide Voltage Band
- Inbuilt Non Return valve (NRV)
Specification
:- Product Type: Power - 1HP
- Brand: CG Power and Industrial Solutions Ltd.
- Weight (Approx.) : 20 kg
- Power : 1 hp
- Model No. : V3W1012C1-FA/AF
- Product Type : Borewell Submersible Pump
- Brand : CG Power and Industrial Solutions Ltd.
- Power : 1 Hp (0.75 kW)
- Electricity Connection : Single Phase
- Rated Voltage : 160-240 Volt
- Frequency : 50 Hz
- Stage : 12 Stage
- Outlet size : 32 mm
- Borewell Size : 80 mm (3 inch)
- Head : 45 to 8 Meter (147 to 26 Feet)
- Flow Rate : 15 to 80 LPM (900 to 4800 LPH)
- Motor Cooling Type : Water Filled Mixed Flow
- Best Use For : Agriculture Use
- RPM (Synchronous) : 3000 RPM
Material of Construction :
- Motor Body & Pump Casing : Stainless Steel 202
- Motor and Pump Shaft : Stainless Steel 410
- Motor Stamping : High grade electrical stamping
- Winding : Poly wrapped Copper
- Motor : Water
- Motor Bearing : Thrust Bearing - SS Vs Carbon
- Bush : Bronze LTB-4
- Diffuser / Bowl : Noryl
- Impeller : Noryl
- Fasteners : SS 304
- Sealing : Oil Seal
- Cable Length : 1.5 Mtr
- Discharge Outlet : Cast Iron
Applications
:- Drinking water supply for domestic and community, Sprinkler and Drip irrigation, Gardening, Farm Irrigation, Educational Institutes, High rise buildings, Industrial water supply, Construction site and Hotels etc.
