Brand: Kirloskar

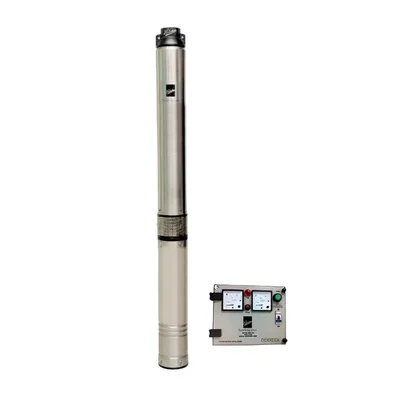

Kirloskar 1HP 8Stage 10Cm 1Ph Oil Filled Submersible Pump With CP, 210ft Head-2 Year Warranty(KP4 JALRAAJ UVA 60-1008)
SKU: TI-K1-18708
MRP : ₹19580
Offer Price : ₹12200 (Including GST)
Get extra ₹183 Discount (On Checkout)
Delivery By: Dec 16 - Dec 18
Qty:
BUY IN BULK
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
Kirloskar (KP4 JALRAAJ UVA 60-1008) 1 HP Submersible Pump With Control Panel
100 LPM Max. Discharge Rate
64M Max. Head Range
10Cm (4 inch) Boring Size
1 Year Warranty
Country of origin: India
Description
This Kirloskar KP4 JALRAAJ UVA 60 series borewell submersible pump is consists of a motor at the bottom and pumps on the top. The pump is submerged in water, eliminating the need for priming as the water pressure itself moves the water into the pump.
Features
:- High Efficiency And Energy Saving Design : Higher output, lesser power consumption.
- Wide Voltage Design : The voltage range is 150 to 240 Volts. It protects the motor from burning due to lower/higher voltage.
- Dynamically Balanced Rotating Parts : Resulting in lesser vibrations and longer trouble-free operation.
- Designed To Prevent Overloading : Lesser chances of motor burning as motor did not get overloaded even if the pump is operated at a head lower than recommended and saving substantial cost from maintenance and breakdown.
- Lightweight And Compact Design : Constructed with special grade engineering materials, compact designs for ease of handling and installation.
- Flatter Efficiency Curve : Minimal drop in efficiency during entire operating range, resulting in lower operating cost.
- Suitable For Horizontal Applications : High capacity angular ball bearing motor construction suited to operate in the horizontal position.
Specification
:- Product Type: Power - 1HP
- Brand: Kirloskar
- Model No. : KP4 JALRAAJ UVA 60-1008
- Product Type : Borewell Submersible Pump
- Brand : Kirloskar
- With Control Panel : Yes
- Motor Power : 1 HP (0.75 kW)
- No. of Stages : 8
- Power Supply : 220V, 50 Hz, AC Supply
- Electricity Connection : Single Phase
- Cooling Type : Oil Filled
- Outlet Size : 32 mm
- Current Rating : 6.7 Amp
- Boring Size : 10 Cm (4 inch)
- Max. Head : 210 Feet (64 Meter)
- Max. Discharge Rate : 100 LPM (6000 LPH)
- Insulation : F Class
- Protection : IP 68
- Winding Material : Copper
- Weight : 17 Kg (Approx.)
Material Of Construction :
- Pump Housing : Stainless Steel
- Pump Shaft : Stainless Steel
- Motor Housing : Stainless Steel
- Motor Shaft : Stainless Steel
- Motor Bearing : Ball Bearing
- Pump Bushes : NBR
- Impeller : Noryl
- Diffuser : Noryl
- NRV : Cast Iron
- Suction : Cast Iron
Accessories
:- Control Panel
Applications
:- Domestic and community water supply
- Water supply for high rise building
- Gardening and small farm irrigation
- Construction site
- Groundwater supply to waterworks
Warranty :
- 1 Year on site Warranty
