Brand: XLO

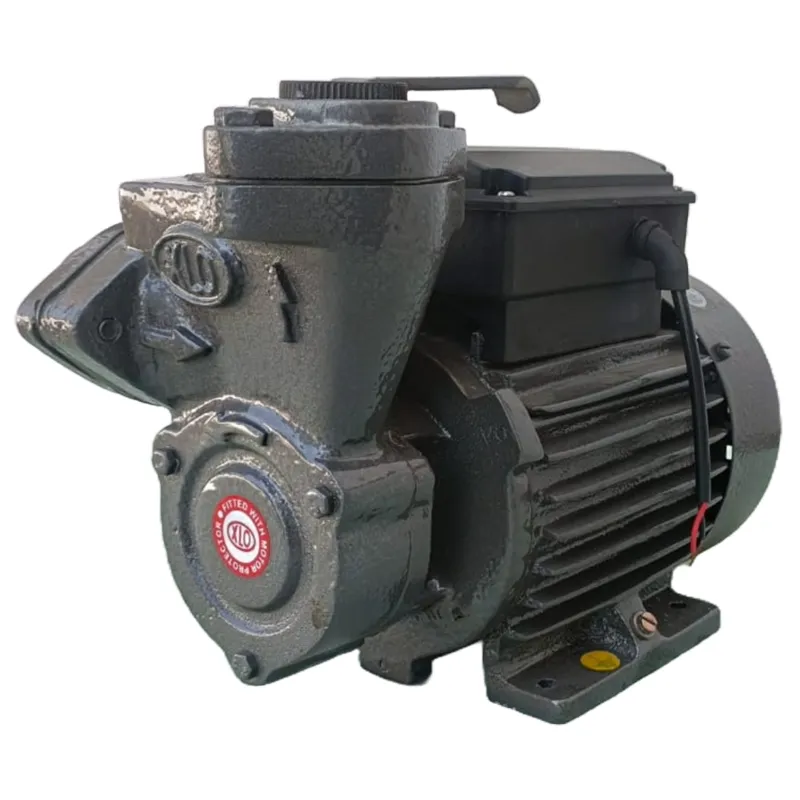

XLO 0.5Hp 1Ph Self Priming Monoblock Pump With 100% Copper Winding, 32m Head, 2800LPH, 25x25mm (DIAMOND)-1 Year Warranty
SKU: TI-X0-28798
₹5549 (Including GST)
MRP : ₹6600
Get extra ₹83 Discount (On Checkout)
Delivery By: Apr 23 - Apr 25
Qty:
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
XLO 0.5 Hp Single Phase Self Priming Monoblock Pump
32m Max. Head, 46 LPM Max. Discharge
Copper Winding
1 Year Warranty
Country of origin: India
Description
The XLO 0.5Hp Single Self Priming Monoblock Pump is a reliable and efficient water pump designed for various uses. With a powerful 0.5 horsepower motor, this pump can easily handle your water needs, whether for home use or gardening. High head makes it great for transferring water quickly and efficiently. Made with 100% copper winding, this pump is built to last and perform well over time.
Features
:- TEFC capacitor start & run motor
- Motor can with stand wide voltage fluctuation
- Fitted with Thermal Overload Protection (TOP)
- Insulated class 'B'
Specification
:- Brand: XLO
- Power : 0.5 hp
- Weight (Approx.) : 12.5 kg
- Flow Rate : 46 lpm
- Head : 32 meter
- Model No : DIAMOND
- Product Name : Self Priming Monoblock Pump
- Wattage : 0.37 kW
- Electricity Connection : Single Phase
- Rated Voltage : 230 Volt ± 6%, 50 Hz
- Speed : 3000 RPM
- Pipe Size (Suction x Delivery) : 25x25 mm
- Head Range : 6 to 32 Meter (19 to 104 Feet)
- Discharge Range : 2800 to 900 LPH (46 to 15 LPM)
- Winding Material : Copper
CONSTRUCTIONAL DETAILS :
- Pump Casing : It is made of graded casting FG 200 of IS:210 to withstand both working pressure as well as sudden Impact.
- Impeller : It is made of Bronze Grade LTB2 of IS: 318 to withstand wear and tear, having vanes machined to smooth finish for higher efficiency.
- Shaft : The shaft is made from alloy steel, accurately finished to microns to ensure Long Life of the bearing and Pump.
- Mechanical Seal : Rotary Seal of Stainless steel spring, with fine lapped surface is used.
- Motor Frame or Enclosure : It is made of graded casting of high tensile strength also available in alm, extruded body and is totally enclosed fan cooled type. Cooling ribs are provided both on Cl and alm. Body to facilitate heat dissipation thus improving motor life.
- Stamping (I) (Stator) : It is of CRNO material with grade M_45C with lower losses
- Stamping (II) (Rotor) : The rotor is die cast and dynamically balanced for vibration free noiseless running and long bearing life.
- Bearing : High speed or equivalent Imported bearings are used and mounted on shaft by press for smooth running, low noise and loge life.
- Non-Return Valve : The monoblock pump is fitted with specially designed spring loaded non-return valve, which does not allow water to return in the suction line and helps in priming when pump is switched on.
- Starting : Motor is of capacitor Start & Run design. No centrifugal switch is required.
- Winding : Motors are manufactured with insulation class 'B' Modified polyester enameled Copper wire which is tested as per IS: 13730 is used for winding of motors. Additionally high quality and mechanical strength material is used for slot insulation. Stator Varnished in vacuum empragnated plants.
- Packing : Monoblock pump is packing in corrugated box with polythene lamination with durable adjustable packing inside for prevent the to and for in transportation.
- After Sale Service : Efficient after sale service is provided through dealer network and all spare parts are ready made available.
Applications
:- Domestic
- Irrigation
- Small Farms
- Pressure Boosting Units
- Industrial Water Supply
- Washing Systems
Warranty :
- Pumps are warranted or a period to 12 months from the date of dispatch against any manufacturing defects in material, workmanship under normal use and service.
