Brand: ALGO

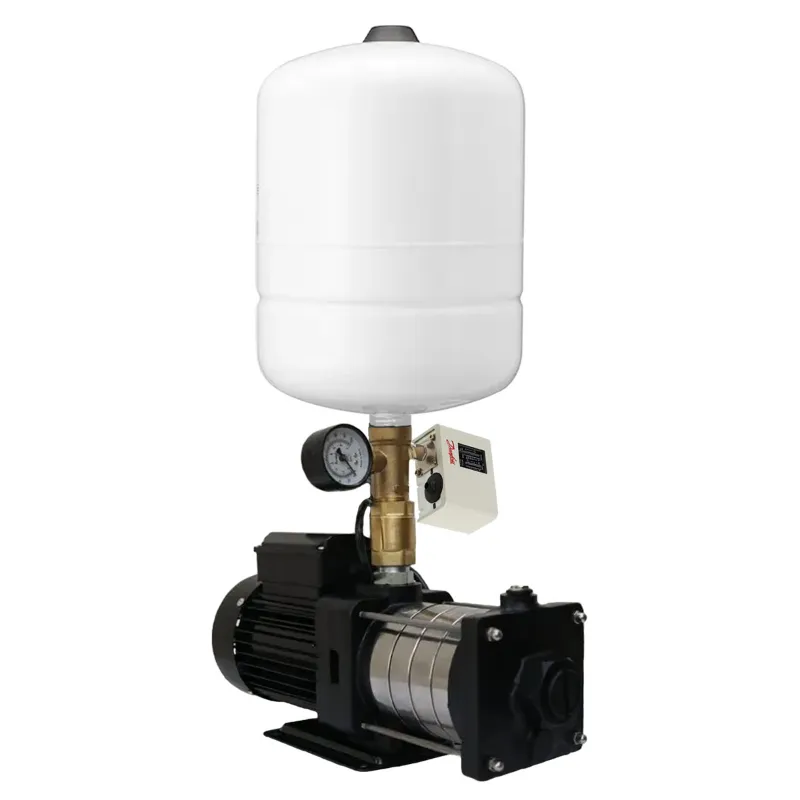

Algo 0.5HP 3 Stage Single Phase SS Booster Pump With 24 Ltr. Impel Tank & Accessories (PMS4-50) - 1 Year Warranty
SKU: TI-A0-19947
MRP : ₹20000
Offer Price : ₹16200 (Including GST)
Get extra ₹243 Discount (On Checkout)
Delivery By: Dec 30 - Jan 1
Qty:
BUY IN BULK
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
Algo 0.5 Hp 1Ph Multistage Horizontal Water Pressure Booster Pump
30m Max. Head, 80 LPM Max. Discharge
24L Impel Tank & Other Accessories are Included
1 Year Warranty
Country of origin: India
Description
A multistage horizontal booster pump is a type of pump that consists of multiple impellers arranged in series along a horizontal shaft. These pumps are designed to increase water pressure incrementally as the water passes through each impeller stage. By pulling water from the main water supply line and pushing it into the home plumbing system at a pressure greater than the incoming water, it raises the water pressure. When demand is strong, the 24 liter tank's reserve of pressurized water can be used. The pump will activate to maintain pressure and refill the tank when it is empty.
Specification
:- Product Type: Power - 0.5HP
- Brand: ALGO
- Model No : PMS4-50
- Product Type : Multistage Horizontal Water Pressure Booster Pump
- Brand : Algo
- Power : 0.5 Hp (0.37 kW)
- Electricity Connection : Single Phase
- Rated Voltage : 230 Volt, 50 Hz
- Pipe Size : 25X25 mm
- No Of Stages : 3
- Head Range : 30 to 5 Meter (98.4 to 16.4 Feet)
- Discharge Range : 0 to 86 LPM (0 to 5160 LPH)
- Max. Operating Pressure : 7 Bar
- Winding Material : Copper
- Tank Capacity : 24 Liter
- Speed : 2900 RPM
- Duty : S1 (Continuous)
- Protection : IP 44/IP 55
- Insulation Class : B/F
- Max. Liquid Temperature : 120°C
- Max. Ambient Temperature : 40°C
- Thermal Overload Protection : Yes
- Suitable For : 2-3 Bathrooms
- Weight : 20 Kg (Approx.)
Material Of Construction :
- Pump Suction & Delivery : SS 304
- Motor Body : Aluminium
- Impeller : SS 304
- Shaft : SS 304
- Mechanical Seal : Carbon Ceramic
- Bearing : Double Shielded Ball Bearing
Accessories
:- 24 Liter Impel Pressure Tank
- Danfoss Pressure Switch
- Pressure Gauge
- 5 Way Brass Connector
- Y Strainer
Applications
:- Domestic Pressure Boosting
- Hotels/Restaurants
- Commercial Centres
- Washing Systems
WARRANTY :
- 1 Year Warranty.
