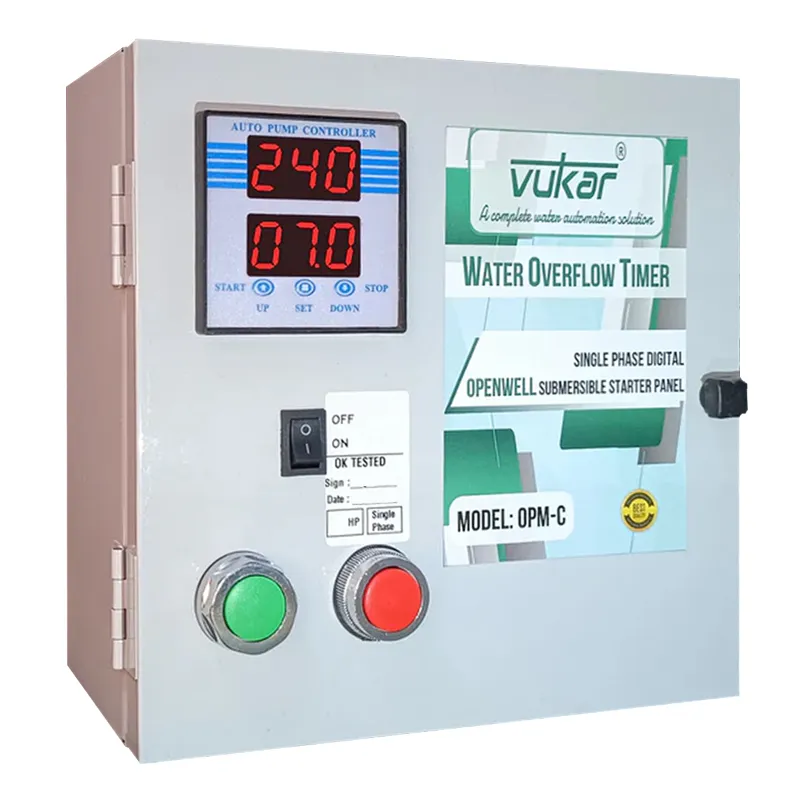

Vukar 0.75 Hp 1Phase Semi-Automatic Openwell Starter Panel With Overflow Timer & Motor Safety (OPM-C)- 3 Months Warranty

Features

• Semi Automatic Operation : It works in a semi automatic mode. It has an inbuilt motor run timer. Users need to turn on the motor manually, the motor will automatically turn off after the motor run timer. No need to connect external level sensor wiring as it has an inbuilt timer that will turn off the motor automatically based on the run timer set by the user.
• Cyclic Timer : It has inbuilt cyclic timer to turn ON and OFF the motor as per timer.
• Motor Overload Protection : It has inbuilt overload protection to protect the motor. Users can set the overload setting as per motor rating.
• Motor dry run protection : It has inbuilt motor protection device. It has dry run protection to protect the motor. Users can set the dry run setting as per motor rating.
• Voltage protection : It has an inbuilt voltage protection device. Motor will turn off when the supply voltage is not within the range of overvoltage and under voltage set by the user. It protects the motor from voltage fluctuation.
• Digital Display : It has a dual display. It displays voltage, ampere, timer and fault of the motor.
• ISI Wiring : This starter panel uses the lug based ISI wiring. Ampere capacity of the wires used is 2x capacity of the rated ampere. ISI standard wires are recommended to use with the rated amperage as per HP rating of the motor. It is necessary to use the lug wiring with the power wiring for water pump application to ensure the long life of the motor.
• Use of Transformer Coil : It has inbuilt heavy quality transformer coil. Transformer coil isolates the main input power to the control unit. This increases the reliability, safety and life cycle of the control unit.
• Electric contactor : Electric contactor is used to isolate the input power and motor connections. Ampere rating of the electrical point of the contactor is 2x capacity of the rated ampere.
• Powder coated metal enclosure : It has a shockproof heavy duty powder coated metal enclosure. Powder coated metal enclosures ensure the product should be delivered to the customer without any physical damage to the customer.
• Premium quality capacitor : Capacitor is the one of the most crucial parts of this single phase digital starter panel. The performance of the motor is dependent on the capacitor. Capacitor value reduces by time. To ensure the maximum retention of run capacitor value, best quality capacitor is used with this submersible starter panel.
• Spare parts availability : Each Spare part is easily available in local markets all over India. User is not dependent on a specific manufacturer in case of immediate repair of any spare parts.
• Plug & Play : External wiring is not required. Electrician is not required for the installation.
• 100% Technical support :We offer excellent technical customer care support to our clients.

Specification

• Model : OPM-C
• Item Code : OPM-C1
• Product Type : Openwell Pump Starter Panel
• Brand : Vukar
• Power : 0.75 Hp (0.55 kW)
• Electricity Connection : Single Phase
• Rated Voltage : 220 Volt, 50 Hz
• Run Capacitor : 36 MFD
• Water Overflow Timer : Yes
• Dimension (LxWxH) : 290 x 280 x 150 mm
• Weight : 2.9 Kg (Approx.)

Applications

• Domestic
• Industrial
