Brand: Crompton

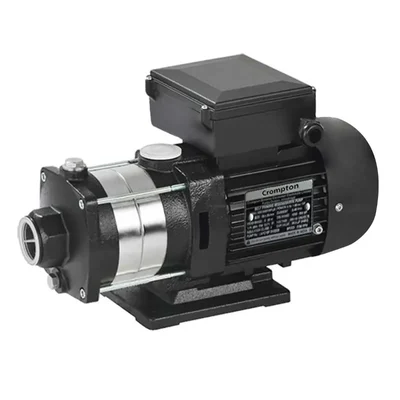

Crompton 0.75 Hp 5 Stage Single Phase Booster Pump, For 2-3 Bathrooms, SS Impeller (CHM5D0.75(1PH)B-38)-1 Year Warranty
SKU: TI-C0-19836
MRP : ₹18450
Offer Price : ₹16450 (Including GST)
Get extra ₹247 Discount (On Checkout)
Delivery By: Dec 29 - Dec 31
Qty:
BUY IN BULK
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
Crompton 0.75 Hp Water Pressure Booster Pump
Single Phase, 5 Stage
48m Max. Head, 61 LPM Max. Discharge
1 Year Warranty
Country of origin: India
Description
This single-phase multistage booster pump is a type of water pressure booster system designed to increase water pressure and flow rate in homes and small businesses. It ensures a steady flow of water by eliminating fluctuations. Water enters the booster pump from the input and exits through the outlet thanks to its stainless steel impeller. The impeller is rotated by the motor.
Features
:- With SS Insert & Cartridge type Mechanical Seal : Carbon/SiC/Viton suitable for Hot water (Suitable up to 120O C temp)
- Top Fitted : Motor fitted with Thermal Overload Protector (TOP)
- High Operating Efficiency : Higher efficiency results in higher performance & lower electricity consumption.
- Easy for Maintenance : Easily replaceable wear & tear Parts.
- Constant Pressure Application : Gives constant pressure at all taps.
Specification
:- Product Type: Power - 0.5HP
- Brand: Crompton
- Model No. : CHM5D0.75(1PH)B-38
- Product Type : Water Pressure Booster Pump
- Brand : Crompton
- Power : 0.75 Hp (0.55 kW)
- Electricity Connection : Single Phase
- No Of Stages : 5
- Pipe Size (Suction X Delivery) : 25 X 25 mm
- Head Range : 25 to 48 Meter (82 to 157 Feet)
- Discharge Range : 67 to 17 LPM (4020 to 1020 LPH)
- No. of Bathrooms Recommended : 2-3 Bathrooms
- Winding Material : Copper
- Weight : 14 Kg (Approx.)
Material Of Construction :
- Impeller : Stainless Steel-SS304
- Diffuser Bowl : Stainless Steel-SS304
- Motor Body Material : Aluminium Extruded-HE9 Grade
- Shaft : Stainless Steel-SS410
- Stamping Material : CRNGO M47
- End Shield : Aluminium ADC12
- Delivery Casing : Cast Iron-IS210 Grade FG 200
- Fan : NYLON 6
- Fan Cover : PP GF 30%
- Mechanical Seal : Tungsten Carbide Vs Sintered carbon + Viton Rubber (FKM)
Applications
:- Domestic Water Boosters
- Sprinkler
- Raw Water Feed pump in RO
- Water Treatment Plants
- Seawater Pumping
- Chemical / Processing
- Food Processing
- Boiler Feeding
WARRANTY :
- 1 Year Warranty
