Brand: Kirloskar

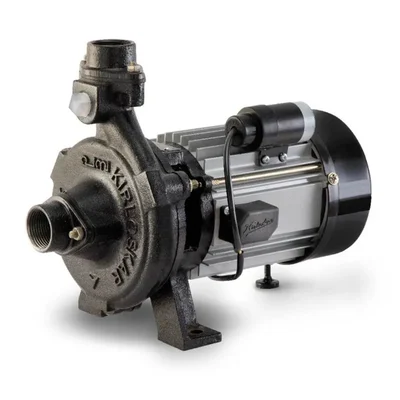

Kirloskar 0.5Hp Single Phase Centrifugal Monoblock Pump, 6840LPH, 25x25mm, ISI Certified (PUMBA PUZHA) - 1 Year Warranty
SKU: TI-K0-18047
MRP : ₹9100
Offer Price : ₹6800 (Including GST)
Get extra ₹102 Discount (On Checkout)
Delivery By: Dec 26 - Dec 28
Qty:
BUY IN BULK
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
Kirloskar (PUMBA PUZHA) Monoblock Pump
0.5 HP, Single Phase
18M Max. Head, 114 LPM Max. Discharge
1 Year Warranty
Country of origin: India
Description
A monoblock pump is a type of pump that is characterized by its compact and self-contained design, where the pump, motor, and drive shaft are combined into a single unit. Centrifugal monoblock pumps are commonly used in various applications such as water supply, irrigation. These pumps operate based on the principle of centrifugal force, where the rotation of the impeller creates a centrifugal force that pushes the liquid towards the outer edges of the pump casing, resulting in increased pressure and flow rate.
Features
:- Wide Voltage Design : The motor is designed to withstand wide voltage fluctuations and reduces motor burning in case of low voltage.
- Designed to Prevent Overloading : Lesser chances of motor burning as the motor does not get overloaded even if the pump is operated at a head lower than recommended, thus ensuring substantial cost savings due to low maintenance and breakdown.
- Dynamically Balanced Rotating Parts : Minimum vibrations protect components from damages during the operations, thus ensuring consistent performance as concentricity is maintained.
- Replaceable Wearing Parts : All wearing parts within the pumps are easily accessible and replaceable which facilitates ease of maintenance thereby extending the life of the pump.
- Automatic Air Release : Automatically releases air when the pump starts which ensures swifter and
- smoother operations, thus eliminating the necessity of operating air release cock and ensures swifter and smoother operations.
- CED – Cathodic Electro Deposition : CED is the latest coating technology for corrosion resistance with uniform coating. It provides 5 times more protection over conventional painting, resulting in longer life. All major CI parts of Kirloskar pumps coming in contact with the water are CED coated.
- Shielded Ball Bearing : The pumps are fitted with shielded ball bearing which results in low noise
- level and so no external lubrication is required throughout the life cycle.
- High Efficiency and Energy Saving Design : Innovative design manufactured at state of art plant, delivers optimum efficiency at lower energy consumption resulting in significant cost savings.
Specification
:- Product Type: Power - 0.5HP
- Brand: Kirloskar
- Model No. : PUMBA PUZHA
- Product Type : Monoblock Pump
- Brand : Kirloskar
- Power : 0.5 HP (0.37 kW)
- Electricity Connection : Single Phase
- Rated Voltage : 220 Volt, 50 Hz
- Full Load : 2.6 Amp
- No Of Pole : 2
- Head Range : 9 to 18 Meter (29 to 59 Feet)
- Discharge Range : 114 to 24 LPM (6840 to 1440 LPH)
- Pipe Size (Suction X Delivery) : 25 x 25 mm
- Weight : 10.3 Kg (Approx.)
Material Of Construction :
- Impeller : Noryl
- Delivery Casing : Cast Iron
- Motor Body : Extruded Aluminium
- Pump Shaft : Carbon Steel
Applications
:- Domestic and community water supply
- Gardening and small farm irrigation
- Lawn sprinklers
- Fountains
- Water transfer and circulation
WARRANTY
- One Year Onsite Warranty.
Shipping Weight & Dimensions
:Verified Package Dimensions
(L X W X H)
: 36.5 cm X 29 cm X 21.5 cm
Package Weight
:
10.60 Kg
