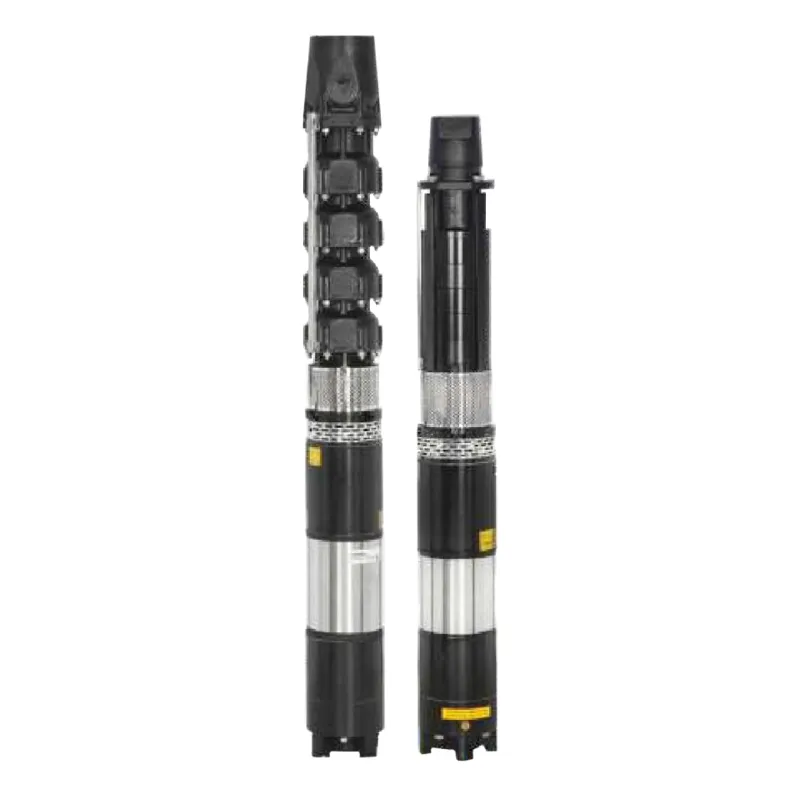

Kirloskar 10 Hp 5 Stage 15Cm(6") 3Phase Water Filled Borewell Submersible Pump, 64m Head (KS6G-1005R) - 1 Year Warranty

Features

• Wide Voltage Motor Designs with Copper Rotor : Motors are designed with extra overload capacities, more water spaces and engineered with 99.99% pure Electro Grade Copper performs well in low voltage with minimum discharge drops and suitable for wide voltage applications
• Sand Fighter Designs : Innovative Sand Fighter Designs restricts the entry of sand in motors, protects the pump and motor bushes to perform well in sandy borewells and increase the pumpset life
• Dynamically Balanced Rotating Parts : Minimum vibrations protect components from damages during the operations, consistent performance as concentricity is maintained
• Longer And Trouble Free Life : High grade engineering materials like Graded Cast Iron Components, Stainless Steel Shalt, Noryl Impellers, Bronze Bushes, Heavy duty Carbon SS Heavy duty Carbon Thrust Plate, 99.9% electro Grade Cooper Rotor and Winding Wires for longer and trouble free life.
• High Efficiency And Energy Saving Design : Innovative design manufactured at state of art plant, delivers optimum efficiency at lower energy consumption resulting in significant cost savings.
• CED-Cathodic Electro Deposition : CED is the latest coating technology for corrosion resistance with uniform coating, provides 5 times more protection over conventional painting, resulting in longer life. All major Cl parts of Kirloskar pumps coming in contact with the water are CED coated
• Design To Prevent Overloading : Lesser chances of motor burning as motor did not get overloaded even if the pump is operated at a head lower than recommended and saving substantial cost from maintenance and breakdown
• Glycol Mixed Water : Motors filled with specially developed Glycol mixed water to improve the anti-freezing properties of motor and prevent corrosion.

Specification

• Model No. : KS6G-1005R
• Product Name : Borewell Submersible Pump
• Wattage : 7.5 kW
• Electricity Connection : Three Phase
• Rated Voltage : 415 Volt, 50 Hz
• No. Of Stages : 5
• Outlet Size : 100 mm (4 inch)
• Borewell Size : 150 mm (6 inch)
• Max. Head : 64 Meter (209 Feet)
• Max. Discharge Rate : 1200 LPM (72000 LPH)
• Cooling Type : Water Filled
• Winding Material : Copper

Applications

• Irrigation in horticulture & agriculture.
• Domestic and community water supply.
• Sprinkler and drip irrigation.
• Rural water supply.
• Ground Water supply to water works
