Brand: V-Guard

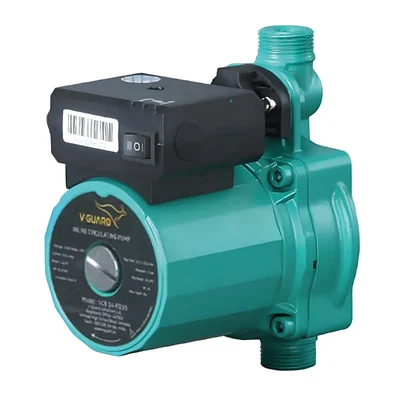

V-Guard 140 Watt 1.25 inch 30 LPM Single Phase Automatic Inline Hot & Cold Water Circulator & Booster Pump (VCB14-F030)
SKU: TI-V1-21833
MRP : ₹7000
Offer Price : ₹4090 (Including GST)
Get extra ₹61 Discount (On Checkout)
BUY IN BULK
Out of Stock
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
V-Guard (VCB14-F030) Inline Water Circulator & Booster Pump
140W(0.18 Hp) Power, Single Phase
1 Bar Pressure
9m Max. Head, 30 LPM Max. Discharge
Country of origin: India
Description
V-Guard 140-Watt(0.18 HP) Automatic Hot & Cold Water Circulator and Booster Pump is a necessary plumbing item that is designed to maintain a constant water temperature in home and commercial water systems. Its main job is to automatically move water from the water heater to the faucets so that hot or cold water is always available when needed. Furthermore, this circulator pump raises water pressure in low-pressure zones, acting as a booster.
Features
:- High efficiency Inline circulating pump.
- Vibration less, noiseless operation.
- Generates constant pressure.
- B class electrical insulation.
- IP 44 protection.
- Automatic & Manual Operation
- Suitable for Hot water application.
Specification
:- Product Type: Power - 0.5HP
- Brand: V-Guard
- Model No. : VCB14-F030
- Product Type : Inline Water Circulator & Booster Pump
- Brand : V-Guard
- Power : 140 Watt (0.18 Hp)
- Electricity Connection : Single Phase
- Rated Voltage : 160-230 Volt, 50 Hz (Voltage required at motor input terminal)
- Pressure : 1 Bar
- Max. Discharge : 30 LPM (1800 LPH)
- Max. Head : 9 Meter (29 Feet)
- Current : 0.54 Amp.
- Pipe Size (Suction X Delivery) : 1.25 X 1.25 Cm
- Weight : 2.5 Kg (Approx.)
Precautions to Use Booster Pump :
- Pump should be protected against weather by giving proper covering.
- The pump must be used for handling clear, cold fresh water, having the (Max. liquid temperature 45°C, Equipped with hot water seal upto 90°C) characteristics specified as Max. Chloride ion density 500 ppm, Total solids - 3000 ppm, pH value - 6.5 to 8, Specific gravity 1.004, Hardness: 300 mg.
- All pipe joints must be leak proof; it is advisable to use GI/PVC pipes with ISI mark.
- Check the pre-charged air pressure inside the pressure tank periodically to ensure the smooth working of pressure booster pump.
- A bypass line should be provided to facilitate normal flow of water in the absence of electricity.
- The difference in pressure should not be lesser than 1.9 bar in Centrifugal Booster Pumps.
Shipping Weight & Dimensions
:
Verified Package Dimensions
(L X W X H)
: 19 cm X 12 cm X 15 cm
Package Weight
:
2.93 Kg
