Brand: SUJAY

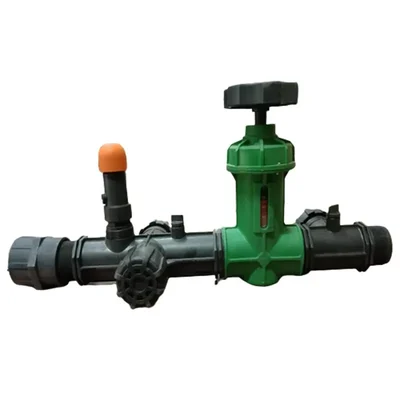

2.5 inch Header Assembly Threaded with Throttle Valve 2.5 inch Inlet and Outlet Manifold
SKU: JS-HA-2021214
MRP : ₹6239
Offer Price : ₹5199 (Including GST)
Get extra ₹78 Discount (On Checkout)
Delivery By: Dec 30 - Jan 1
Qty:
BUY IN BULK
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
2.5 inch (6.35 cm approx) Throttle Valve with Header Assembly
Plastic Control Throttle Valve
Female Threaded Type
Country of origin: India
Description
2.5 inch Header Assembly Threaded with Throttle Valve 2.5 inch Inlet and Outlet Manifold
Description :
- Throttle valves are designed to regulate the supply of a fluid (as steam or gas and air) to an engine and operated by a hand wheel, a lever, or automatically by a governor especially.
Features :
- Multi turn Linear motion throttle valve.
- End connections: Female Threaded type
- Max. Pressure : 6 Bar/ 85 Psi
- Straight through flow with minimal pressure loss
- Its slow operation prevents water hammer
- Visual float position indicator to show us % throttle of piping system
- Steel Rod inserted in full length during injection moldings of Shaft made of Reinforced Nylon, that gives excellent strength without breakage during rough usage.
- Float Body profile is matched by CNC machines for smooth operation and keeping the leakage under permissible limit during complete shut off.
- Dowel pin inserted in the shaft to prevent extra travel of float which do not transfer load on during extra tightening by farmers. This prevents breakage of cap.
- During assembly of throttle valve, 2 nos. lock pins inserted to avoid any slippage or loosening of threads of throttle valve cap..
- Maintaining seat leakage permissible limit as per standard ANSI/FCI-70-2-2006 in Class III (0.10%).
- Chemical / Corrosion resistant, Color UV stabilized
Specifications :
- Model No. : BPAS25
- Product Type : Throttle Valve
- Brand : SUJAY
- Size : 2.5 Inch /65 mm/ (6.35 cm approx)
- Thd./In : 11 BSP & 8 NPT
- Body : Reinforce PP
- Flange, Disc, Handle : Reinforce PA
- Cylinder : Reinforce PP
- PC Housing : Polycarbonate
- Shaft : Reinforced PA+MS
- Shaft O-Ring : NBR
- Bottom & Sleeve Gasket : NBR
- Handle Screw : MS
- Teflon Seal Big & Small : Teflon
- Housing Gasket : NBR
- Locking Pin : SS-304
- Dowel Pin (4*30) SS : SS-304
Components :
- 2.5 inch (6.35 cm approx) Manifold inlet and outlet
- 2.5 inch (6.35 cm approx) Port open both side threaded
- 2.5 inch (6.35 cm approx) Single union pp ball valve
- 2.5 inch (6.35 cm approx) socket threaded
- 2.5 inch (6.35 cm approx) Throttle Valve
Specifications
:- Product Type: Throttle Valve
- Brand: SUJAY
