Brand: HONDA

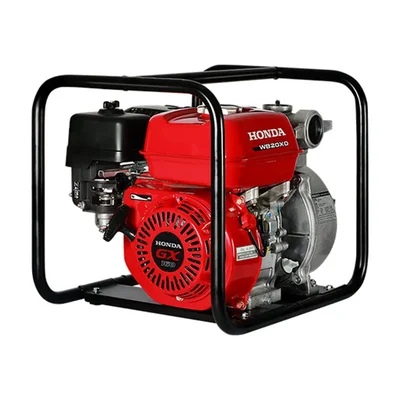

Honda WB20XD 4-stroke, Air-Cooled 2 inch Petrol Water Pump (with 2-Year Warranty)
SKU: SI-HW-15707
₹29990 (Including GST)
Get extra ₹450 Discount (On Checkout)
Delivery By: Feb 10 - Feb 12
Qty:
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
Honda WB20XD Petrol Water Pump
4 Stroke Single Cylinder Air Cooled Engine
3.6 kW Net Power
Country of origin: Japan
Description
Honda WB20XD Water pump delivers water with the best in class performance at up to 32 meters head and 670 litres discharge volume per minute. It is used for agriculture, irrigation, water logging, commercial buildings, gardening, hotels, flooding, transfer water, and empty pools etc. It is backed by Honda Advanced 4-Stroke Technology OHV Petrol Engine for superior Performance, Reliability and Portability. It has a net power of 3.6 kW. It has suction and discharge port diameter of 50 mm.
Features
:- Potable Design : It is designed to handle the most toughest jobs like irrigating a field, draining a pool in no time, pump out a flooded trench, fill or empty a water storage tank.
- Extra Lifting Capacity: It has higher suction power and give high discharge in its operating range.
- Highly efficient, energy-saving, lightweight, and compact easily maintainable design that is required in irrigation.
Specification
:- Product Type: 2 inch Petrol Water Pump
- Brand: HONDA
- Power : 3.6 kw
- Weight (Approx.) : 26 kg
- Fuel Used : Petrol
- Displacement : 163 cc
- Stroke : 4
- Model No : WB20XD
- Inlet/Outlet Size : 2 Inch (5.08 cm)
- Rated Power : 2.9 kW
- Fuel Tank Capacity : 3.1 L
- Speed : 3600 RPM
- Suction Port Diameter : 50 mm
- Discharge Port Diameter : 50 mm
- Total Head : 32 m
- Maximum Discharge : 670 LPM
- Suction Head : 7.5 m
- Suitable for : Agriculture
Note : 2-Year Warranty by Honda (Only on Manufacturing Defects)
Applications
:- Use for Agriculture, Irrigation, Water Logging, Commercial Buildings, Gardening, Hotels, Flooding, Transfer Water, and Empty Pools.
Usage
:Before you start:
- Fill the tank with unleaded petrol
- Attach the suction hose to the pump's intake and the delivery hose to the outlet.
- Ensure all connections are secure and leak-free.
- You prime the pump by filling it with water through the priming plug. This removes air and prepares it to draw water effectively
Starting the Engine:
- Ensure the fuel valve is open, allowing petrol to flow to the engine .If the engine is cold, engage the choke.
- Pull the recoil starter cord gently until you feel resistance, then give it a sharp tug.
- Repeat until the engine starts.
- Once the engine starts, gradually disengage the choke as it warms up.
- Adjust the throttle to control the water flow rate
**Turn off the engine and allow it to cool before refueling.
Shipping Weight & Dimensions
: Package Dimensions
(L X W X H)
: 45 cm X 40 cm X 55 cm
Package Weight
:
20.00 Kg
