Brand: Automat

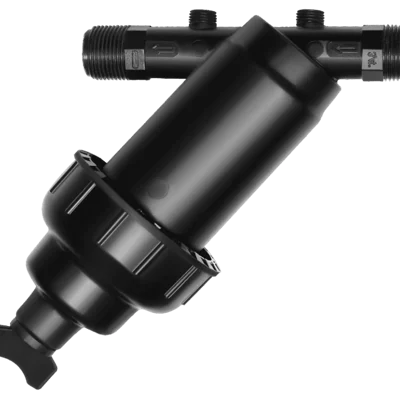

Automat Manual Disc Filter Y-Type 3/4 inch for Small Farm Holdings
SKU: JS-HA-2021188
MRP : ₹1020
Offer Price : ₹850 (Including GST)
Get extra ₹13 Discount (On Checkout)
Delivery By: Jan 1 - Jan 3
Qty:
BUY IN BULK
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
Automat Y Type Manual DiscFilter (8m3/hr) for Irrigation
3/4 inch (1.905 cm approx) Size
Country of origin: India
Description
Disc filter is a type of water filter primarily used in Irrigation.
The filter cartridge is made of a number of plastic discs stacked on top of each other like a pile of proper chips.
The discs (or rings) each have a hole in the middle, forming a hollow cylinder in the middle of the stack.
The water passes through the small passages in between and the impurities are trapped behind.
Filter designed for maximum operating pressure of 6 Bar.
The filter cartridge is made of a number of plastic discs stacked on top of each other like a pile of proper chips.
The discs (or rings) each have a hole in the middle, forming a hollow cylinder in the middle of the stack.
The water passes through the small passages in between and the impurities are trapped behind.
Filter designed for maximum operating pressure of 6 Bar.
Features
:- Disk filters designed for Outside to Inside flow.
- Auxiliary Connections : Two pressure gauge ports with 1/4" (0.635 cm approx) male threaded connections.
- Filter body and cap connected by threaded connection to sustain high pressure and easy opening and closing.
- High filtration Efficiency.
- Spring loaded Disc cartridge for uniform compression of Disks.
- UV Protected, chemical and high pressure resistant reinforced plastic material used.
Specification
:- Product Type: Disc Filter
- Brand: Automat
- Model No : HT-131Y
- Size : 3/4 Inch (1.905 cm approx)
- Material : Reinforce Polypropylene
- Max. Working Pressure : 8 kg/cm2
- Inlet/ Outlet Connection : 3/4 Inch (1.905 cm approx) Male Thread
- Range of Flow Rate : 3-5 m3/hr
- Recommended Flow : 3 m3/h (50 ltr/min)
- Filtration Surface Area : 147.5 cm2
- Distance between End Connections : 155.5 mm
- Filter Height : 252 mm
- Filter Width : 86.5 mm
- Cartridge Diameter : 47.5 mm
- Cartridge Length : 143 mm
- End Plug : 1/4 Inch (0.635 cm approx) Male Threaded
- Filter Disk (Standard) : 120 Mesh PP Disk (One removable Cartridge)
Applications
:- Household Water filtration
- Agriculture Irrigation
- Green Hose and small Farm Holdings
- Drip Irrigation
- Municipal Garden Irrigation
- Industrial Filtration
- Garden Lawn
