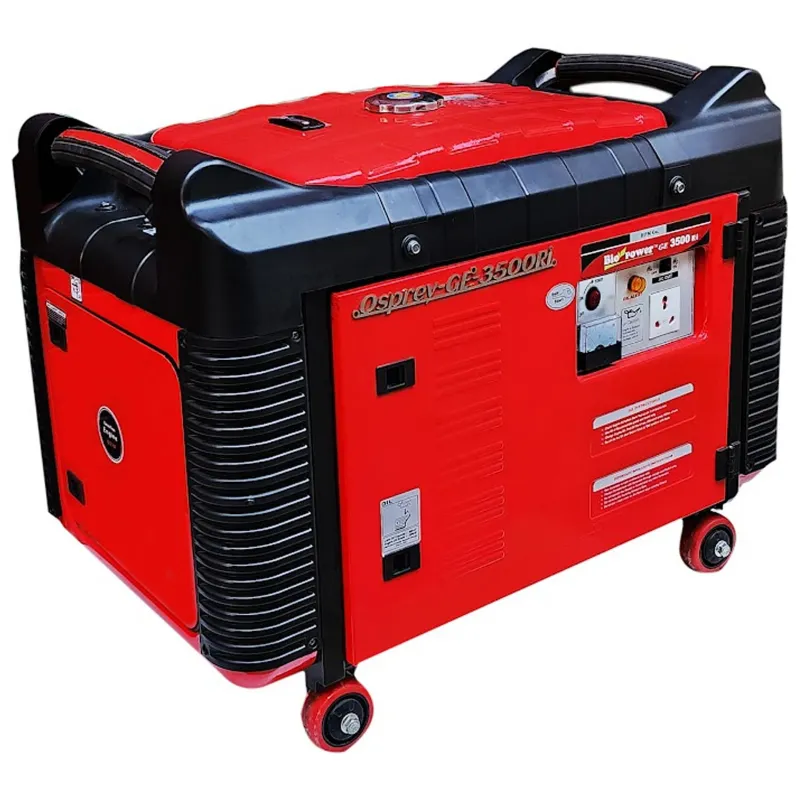

HPM 3.5 KVA Recoil Start Portable Petrol Generator (Osprey GE-3500Ri)

Features

• This is a very Light Weight & Powerful Portable Petrol Generator.
• Suitable to run 1 Ton Air Conditioners, Submersible Pump, Deep Freezers, Inductive & Motor Loads.
• Pure sine wave & THD<5%, Suitable for sensitive electronic equipments.
• Ability to withstand high over loading capacity.


Specification

• Model : Osprey GE-3500Ri
• Dimensions (L x W x H) : 785 X 520 X 608 mm

• Max AC. Output VA : 3500
• Rated AC. Output VA : 3000
• Rated Current Amps : 13
• NFB Amps : 13
• AC. Voltage at Rated Load : 220 Volts ± 10 Volt 50 Hz, Single Phase
• AC. Voltage at No Load : 230 Volts ± 5 Volt

• Alternator Max. Current Capacity : 20 Amps
• Alternator : Brushless, Rare Earth Magnetic Rotor, THD 5 %, Pure Sine Wave

• Model : HM170P
• Type : OHV25°Inclined, single cylinder, 4 strokes, S.I, Forced air cooling
• Maximum Power : 6.5 HP
• Speed : 3600
• Bore x Stroke : 70 x 58 mm
• Displacement : 223 cc
• Generator Starting System : Recoil Start
• Fuel : Petrol
• Fuel Tank Capacity : Petrol -20.5 Ltr.
• Fuel Consumption at Rated Load : Petrol - 1.4 ltr/hr (Approx.)
• Continues Running (With One Filling) : 15 Hrs.
• Lube. Oil Capacity : 600 ml
• Lubricating Oil Consumption : 2.5 gm./Hr
• Sound level (from 1 meter) : < 72 Db

• Voltmeter : Analogue
• Oil Alert System : Yes
• Fuel Level Gauge : Yes
• Overload Protection (NFB) : Yes
• Castor Wheels : Yes


Accessories

Applications

• Very much Suitable for Domestic, Institutional, Field jobs, Industrial & Commercial Use due to ability for Overloading
