Brand: Kirloskar

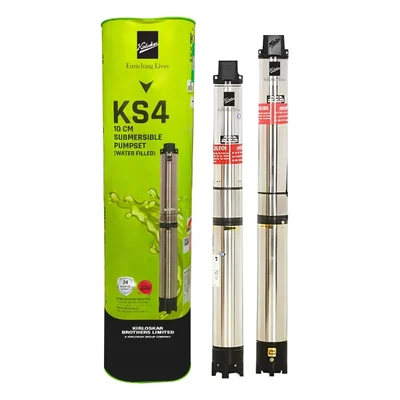

Kirloskar 3 HP 8 Stage 100mm(4") 3 Phase Water Filled Borewell Submersible Pump, 141ft Head- 2 Year Warranty (KS4H-3008)
SKU: TI-K3-19126
MRP : ₹42000
Offer Price : ₹28500 (Including GST)
Get extra ₹428 Discount (On Checkout)
Delivery By: Dec 17 - Dec 19
Qty:
BUY IN BULK
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
Kirloskar (KS4H-3008) 3 HP Submersible Pump
420 LPM Max. Discharge Rate
43M Max. Head Range
10Cm (4 inch) Boring Size
2 Years Warranty
Country of origin: India
Description
Submersible pumps like the Kirloskar KS4 series have gained widespread popularity due to their numerous advantages over conventional above-ground pumps. By positioning the motor below the water level, these pumps eliminate the need for priming – a time-consuming process that involves filling the pump chamber with water before starting operation. Moreover, submersible pumps offer improved cooling efficiency compared to their above-ground counterparts. In this case, Kirloskar’s KS4 series pumps are equipped with water cooling systems that circulate water around the motor windings to dissipate heat generated during operation.
Features
:- Wide Voltage Design : The motor is designed to withstand wide voltage fluctuations from 280 to 440 volts and reduces motor burning in low voltage
- High efficiency and Energy Saving Design : Innovative design manufactured at state of art plant, delivers optimum efficiency at lower energy consumption resulting in significant cost savings.
- Dynamically Balanced Rotating Parts : Minimum vibrations protect components from damages during the operations, consistent performance as concentricity is maintained
- Longer and Trouble Free Life : High grade engineering materials like Graded Cast Iron Components, Stainless Steel Shaft, Noryl Impellers, Bronze Bushes, Heavy duty Carbon + SS Thrust Plate, 99.9% pure Copper Rotor and Winding Wires for longer and trouble free life.
- Advanced Water Cooled Motors Designs : The motor is filled with potable water, protects from overheating and facilitates smoother and trouble free operation for the years.
- Wide Voltage Motor Designs with 100% Copper Rotor : Motors are designed with extra overload capacities, more water spaces and engineered with 100% pure Electro Grade Copper performs well in low voltage with minimum discharge drops and suitable for wide voltage applications.
- CED-Cathodic Electro Deposition : CED is the latest coating technology for corrosion resistance with uniform coating, provides 5 times more protection over conventional painting, resulting in longer life. All major Cl parts of Kirloskar pumps coming in contact with the water are CED coated.
Specification
:- Product Type: Power - Above 2HP
- Brand: Kirloskar
- Model No. : KS4H-3008
- Product Type : Borewell Submersible Pump
- Brand : Kirloskar
- Motor Power : 3 HP (2.2 kW)
- No. of Stages : 8
- Power Supply : 415V, 50 Hz, AC Supply
- Electricity Connection : Three Phase
- Cooling Type : Water Filled
- Outlet Size : 65 mm
- Current Rating : 6.9 Amp
- Boring Size : 100mm (4 inch)
- Max. Head : 43 Meter (141 Feet)
- Max. Discharge Rate : 420 LPM (25200 LPH)
- Insulation : B Class
- Protection : IP 68
- Winding Material : Copper
- Weight : 38.6 Kg (Approx.)
Material Of Construction :
- Pump Housing : Stainless Steel
- Pump Shaft : Stainless Steel
- Motor Housing : Stainless Steel
- Motor Shaft : Stainless Steel
- Thrust Bearing : Carbon + Stainless Steel
- Motor/Pump Bushes : Gun Metal
- Impeller : Noryl
- Diffuser : Noryl
- NRV : Cast Iron
- Suction : Cast Iron
Applications
:- Domestic and community water supply
- Rural water supply
- Gardening and small farm irrigation
- Construction site
- Water supplies for high rise building
WARRANTY :
- 2 Years Onsite Warranty
