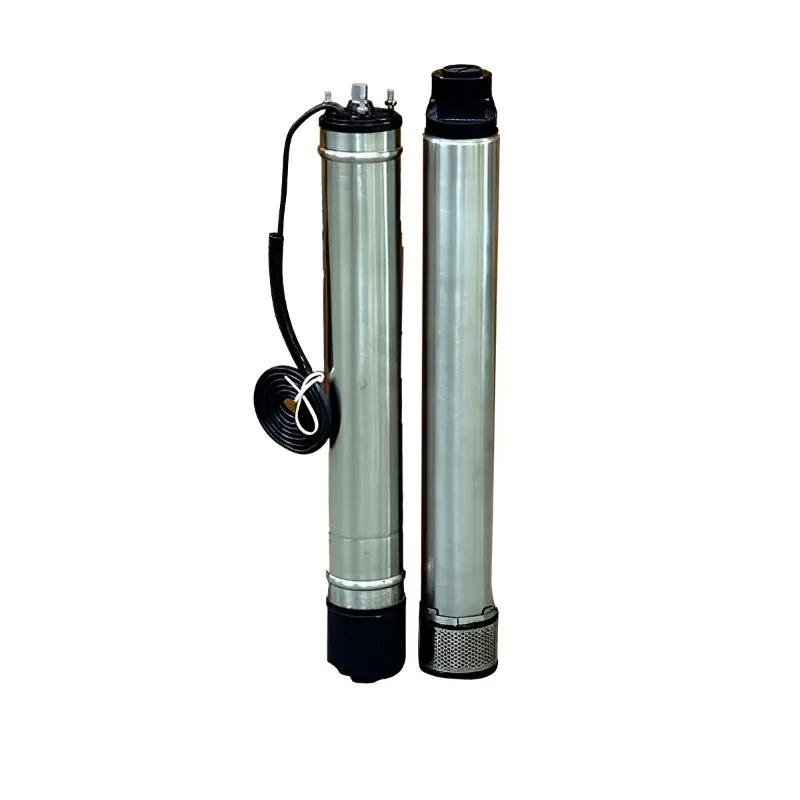

Oswal 1.25 HP 1Phase 3 inch(V3) Oil Filled Borewell Submersible Pump, 13 Stages, 1 Year Warranty (OSO-5 SF E-1PH)

Easy Return
& Refund

Quality
Assurance

Trusted
Delivery

After Sales
Assistance

Buyer
Protection

Short Description

Oswal 3 inch (75 mm) Borewell Submersible Pump

1.25 HP (0.92 kW) Single Phase, Oil Filled Motor

35 LPM Discharge Range

1 Year Warranty

Country of origin: India

Description

Oswal 1.25 HP 1Phase 3 inch(V3) Oil Filled Borewell Submersible Pump, 13 Stages, 1 Year Warranty (OSO-5 SF E-1PH)

Features :

• Superior Material of Construction, Easy Assembling and Dismantling, Rigid Cast Iron Parts, High grade Anti Corrosive Stainless Steel Stater pipe and Jacket of the pump, Impeller and diffusers are made of high grade engineering polymers, Polymers parts are protected by the metallic wear rings.
• Better efficiency and consistent  performance, All rotating parts are dynamically balanced to ensures long life and thus saving cost of maintenance, Vibration free smooth operation.
• Designed to withstand wide voltage fluctuations thus preventing burning of motors at low voltage and even smooth operation at low voltage.
• Built In NRV reduces the friction losses, Bearing Sleeves are Hard chrome coating for longer life, Easy availability of the spare parts,Sand Guard prevents the ingress of impurities.
• Used for water supply domestic use, Flats, Societies, water supply, Used for Irrigation of small Farms, Hatcheries and Hotels.

Specifications :

• Model No. : OSO-5 SF E-1PH
• Product Type : Borewell Pump
• Brand : Oswal (Made in India)
• Motor Power : 1.25HP (0.92 kW)
• Power : 220 V AC Supply
• Electricity Connection : Single Phase
• Motor Cooling Type : Oil Filled
• Borewell Size : 3 Inch (75 mm)
• Head : 26 to 37 meters
• Outlet Size : 25 mm
• No. of Stage : 13
• Bore Outlet : 80 x 25 mm
• Speed : 2850 RPM
• Current : 7 Amps
• Winding : Copper
• Class : B
• Degree of Protection : IP 68
• Method of Starting : Capacitor Start and Run (CSR)
• NRV Housing : Stainless Steel
• Impellers : Noryl
• Diffusers : Noryl
• Pump Jacket : Stainless Steel
• Pump Shaft : SS 410
• Suction inter Connector : Stainless Steel
• Coupling : SS 410
• Discharge Range : 35 liters per minute
• Dimensions : (L x W x H) : (60 x 20 x 10) cm
• Weight : 13 Kg (Approx.)

Suitable For :

• 3 inch (75 mm) Boring

Warranty :

• 1 year warranty on manufacturing defects only.


Specifications

 :

• Brand: Oswal (Made in India)
• Power : 1.25 hp
• Weight (Approx.) : 13 kg
• Flow Rate : 0 lpm
• Head : 0 meter
