Brand: Generic ( Made in India )

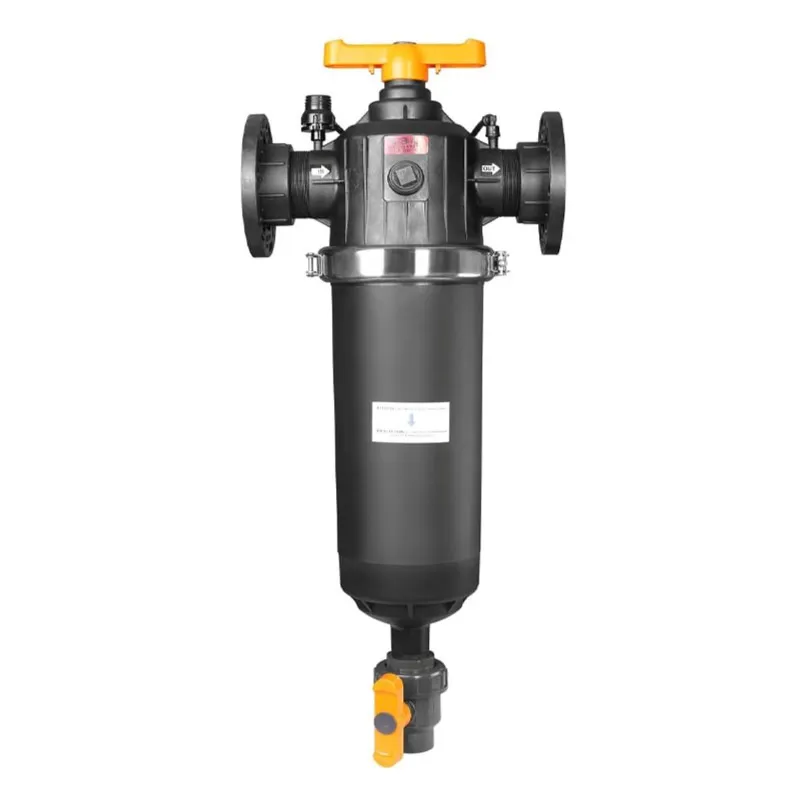

3 Inch Semi Automatic Disc Filter for Primary & Secondary Filtration For Small Farm Holding
SKU: TI-JB-16529
Price : ₹8100 (Including GST)
Get extra ₹122 Discount (On Checkout)
Delivery By: Dec 30 - Jan 1
Qty:
BUY IN BULK
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
3 Inch (7.62 cm approx) Semi Automatic Disc Filter for Primary & Secondary filtration
¾" (1.905 cm approx) Male Threaded End Plugs
Country of origin: India
Description
3 Inch Semi Automatic Disc Filter for Primary & Secondary Filtration For Small Farm Holding
Description :
- Semi Automatic Disc Filter is made with engineering plastic so it does not easily get rust.
- It work on the process of flow passes outside from inside of Disc cartridge.
- It has uniform distribution of flow into filter housing optimizes the filtration process.
- It is designed for pressure rating PN8 (8bar).
- It has 2 male threaded pressure port at the top for easy visibility of pressure.
- Disc cartridge enabled with spring-loaded for full compression of the disc and loosen during cleaning
- During the cleaning operation, all inlet water passes through the pipe, and water jets remove dirt from the discs
- Semi Automatic Disc Filter has a barrel with 1 and 1/2 inch ( 2.54 cm and 1.27 cm approx) Drain port.
- The filter has handle for the rotation in process of cleaning the discs without dismantling the filter
- Grooved disc design with dimensional consistency proven with more than 95% filter efficiency.
Features :
- Filter designed for Pressure rating PN8 (8bar)
- 2 male threaded pressure port at the top for easy visibility of pressure.
- Disc cartridge enabled with spring loaded for full compression of disc and loosen during cleaning.
- Filter with Clogging indicator, Red pop up comes out at x 0.6 kg/cm² pressure differential, indicated end user to clean filter manually.
- During cleaning operation, all inlet water passes through the pipe, and water jets removes dirt from the discs.
- Barrel with 1½" (3.81 cm approx) Drain port.
- Handle for 90 degree rotation for cleaning of disc without dismantling of filter.
- Disc housing fan gives hydro cyclonic effect which makes particles in suspension that reduces cleaning frequency.
- Grooved disc design with dimensional consistency proven with more than 95% filter efficiency
Specifications :
- Brand : Generic (Made in India)
- Product Type : Semi Automatic Disc Filter
- Recommended flow : 667 lit/m (40 m3/hr)
- Max. Working Pressure : 8 kg/cm2
- Range of Flow Rate : 35-50 m3/hr
- Filter Disc (standard) : 120 mesh PP Red disc (Single Removable cartridge)
- Filtration Surface area : 1590 cm2
- Inlet/outlet connection : 3" (7.62 cm approx) BSP/NPT male thread
- Closing System : Stainless Steel / Hybrid Clamp
- Distance between End connections : 344 mm
- Filter height (With Ball Valve) : 930 mm
- Filter width (With End Plug) : 235 mm
- Cartridge Diameter : 121 mm
- Cartridge Length : 510 mm
- Drain Valve (1 no.) : 1½" (3.81 cm approx) Female x Female threaded
- End Plugs (1 no.) : ¾" (1.905 cm approx) Male Threaded
Cleaning Instructions :
- Cleaning of the filter must be done when pressure differential across the disc reaches 0.6 kg/cm2 (8.5psi) or when the clogging indicator red button pops up.
- Cleaning the semi-automatic filter must be done while the filter is under pressure
- Gradually open the flushing valve below the filter
- To start cleaning mode of filter, turn the handle (top of the filter) 900 degree in clockwise direction.
- Cleaning operation starts, system pressure might increase during cleaning operation.
- When cleaning operation done, first filter handle direction should be at filtration mode. And then flushing valve gradually close.
- In case the the filter is still clogged (pressure indicator button is up). Repeat the above steps for effective disc cleaning.
Warning : In order to prevent water hammer (surge) always open or close filter handle valves in a gradual motion.
Specifications
:- Product Type: Disc Filter
- Brand: Generic ( Made in India )
Shipping Weight & Dimensions
:
Verified Package Dimensions
(L X W X H)
: 81 cm X 40 cm X 25 cm
Package Weight
:
12.10 Kg
