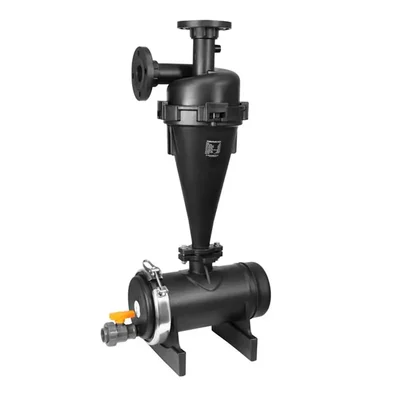

Automat 3 Inch (80 mm) Hydro Cyclone Filter with 1 Ball Valve & 2 Fixed Flanges is ideal for when need to pre-filter water with high loads of sand, before passing it through filters. It is incredibly easy to operate and maintain as it has no moving parts. It separates sand and other solid matter with very little head loss, and with 90% or greater efficiency than other separators in the market. It is able to effectively move the solid particles outwards.
Features
:
Dirt can be easily flushed out through drain port.
Easy to install and low maintenance
Collector chamber can be easily cleaned by opening collector cover.
Stand for Height Increase
Hybrid Nylon Clamp with SS Lock used to open/close collector cover from collector chamber.
Specially designed High Wear Resistant Special Plastic inserted in the bottom of cone to avoid wear due to strong sand vortex
Specification
:
Brand: Automat
Weight (Approx.) : 10 kg
Model No : HT-146M
Maximum Operating Pressure: 6 kg/cm
Material of Construction: Reinforced Polypropylene/Nylon
Available Connections: BSP Male Threaded/Flange/Victaulic
Range of Flow : 35-50 m3/HR
Nominal flow rate : 50 m3/HR
Applications
:
Used for the separation of sands and other solid materials from water or other liquids
Protects pump, valves and irrigation systems from damage and abrasion that is often caused by suspended solids
Pre-filtering of liquids prior to gravel filtration and screen filter systems
For agriculture, domestic, industrial and municipal usage
