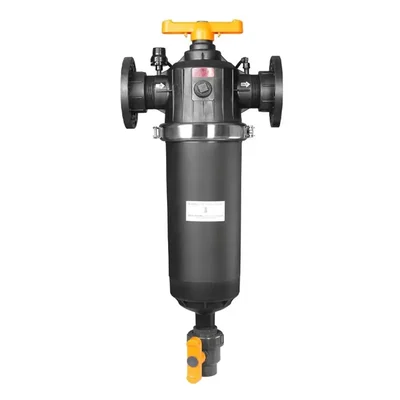

Automat 3 Inch Semi Automatic Disc Filter for Primary & Secondary Filtration
SKU: JS-HA-2021244
MRP : ₹13199
Offer Price : ₹10999 (Including GST)
Get extra ₹165 Discount (On Checkout)
Delivery By: Dec 30 - Jan 1
Qty:
BUY IN BULK
Easy Return & Refund
Quality Assurance
Trusted Delivery
After Sales Assistance
Buyer Protection
Short Description
3 Inch (7.62 cm approx) Semi Automatic Disc Filter for Primary & Secondary filtration
Country of origin: India
Description
Semi Automatic Disc Filter is made with engineering plastic so it does not easily get rust.
It work on the process of flow passes outside from inside of Disc cartridge. It has uniform distribution of flow into filter housing optimizes the filtration process. It is designed for pressure rating PN8 (8bar). It has 2 male threaded pressure port at the top for easy visibility of pressure. Disc cartridge enabled with spring-loaded for full compression of the disc and loosen during cleaning During the cleaning operation, all inlet water passes through the pipe, and water jets remove dirt from the discs Semi Automatic Disc Filter has a barrel with 1 and 1/2 inch (2.54 cm and 1.27 cm approx) Drain port. The filter has handle for the rotation in process of cleaning the discs without dismantling the filter Grooved disc design with dimensional consistency proven with more than 95% filter efficiency
Features
:
Filter designed for Pressure rating PN8 (8bar)
2 male threaded pressure port at the top for easy visibility of pressure.
Disc cartridge enabled with spring loaded for full compression of disc and loosen during cleaning.
Filter with Clogging indicator, Red pop up comes out at x 0.6 kg/cm² pressure differential, indicated end user to clean filter manually.
During cleaning operation, all inlet water passes through the pipe, and water jets removes dirt from the discs.
Barrel with 1½" (3.81 cm approx) Drain port.
Handle for 90 degree rotation for cleaning of disc without dismantling of filter.
Disc housing fan gives hydro cyclonic effect which makes particles in suspension that reduces cleaning frequency.
Grooved disc design with dimensional consistency proven with more than 95% filter efficiency
Warning : In order to prevent water hammer (surge) always open or close filter handle valves in a gradual motion.
Inlet/outlet connection : 3" (7.62 cm approx) BSP/NPT male thread
Closing System : Stainless Steel / Hybrid Clamp
Distance between End connections : 344 mm
Filter height (With Ball Valve) : 930 mm
Filter width (With End Plug) : 235 mm
Cartridge Diameter : 121 mm
Cartridge Length : 510 mm
Drain Valve (1 no.) : 1½" (3.81 cm approx) Female x Female threaded
End Plugs (1 no.): ¾" (1.905 cm approx) Male Threaded
Applications
:
Pre-filtration
in desalination plants
Surface
water filtration for irrigation
Filtration
in hydroponics systems
Clarification
of wastewater
Tertiary treatment for high-quality
effluent
Cleaning Instructions :
Cleaning of the filter must be done when pressure differential across the disc reaches 0.6 kg/cm2 (8.5psi) or when the clogging indicator red button pops up.
Cleaning the semi-automatic filter must be done while the filter is under pressure
Gradually open the flushing valve below the filter
To start cleaning mode of filter, turn the handle (top of the filter) 900 degree in clockwise direction.
Cleaning operation starts, system pressure might increase during cleaning operation.
When cleaning operation done, first filter handle direction should be at filtration mode. And then flushing valve gradually close.
In case the the filter is still clogged (pressure indicator button is up). Repeat the above steps for effective disc cleaning.
