Brand: Automat

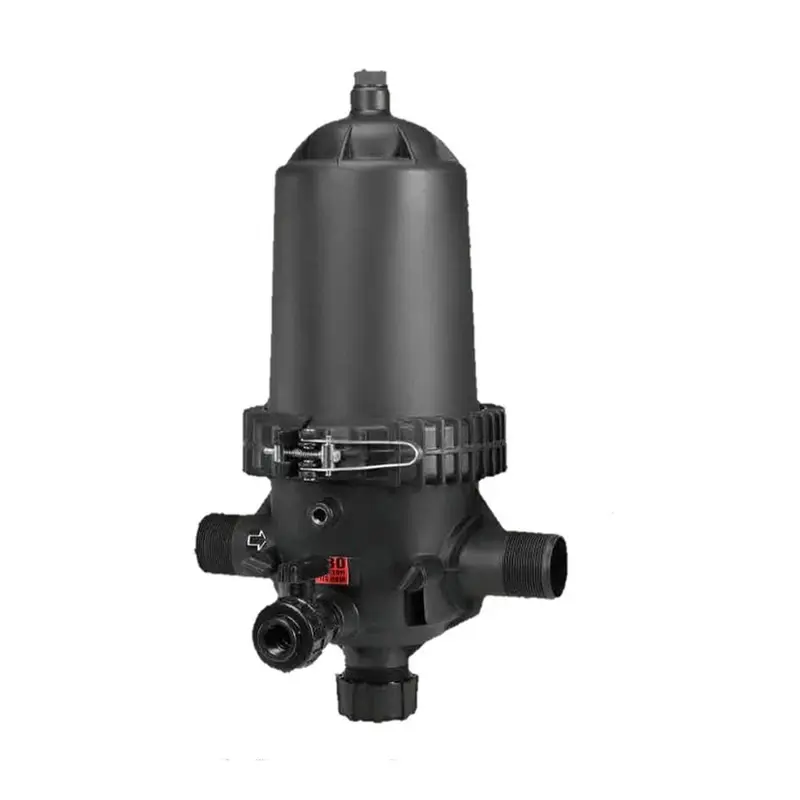

Automat Disc Filter T Type 3 inch for Filtration 40m3 per hr
SKU: JS-HA-2021202
MRP : ₹8160
Offer Price : ₹6800 (Including GST)
Get extra ₹102 Discount (On Checkout)
Delivery By: Dec 29 - Dec 31
Qty:
BUY IN BULK
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
T-Type Disc Filter (40m3/hr)
3 inch (7.62 cm approx) Size
Automat
Country of origin: India
Description
3 Inch (7.62 cm approx) T-Type Disc filter (40m3/hr) in which flow passes from outside to inside of disc stake.
The filters are made from special chemically bonded polymer which are weather resistant.
Disc filter made with special Helix system which gives better performance and results.
The filters are made from special chemically bonded polymer which are weather resistant.
Disc filter made with special Helix system which gives better performance and results.
Features
:- Du point Nylon Hybrid Clamp with SS Lock for high pressure operations.
- PPGF Slip - on flange for easy installation (Optional)
- Bigger drain port with 3/4" (1.905 cm approx) ball valve for quick drainage.
- Disk filters are made with special Helix system which gives better performance and results.
Specification
:- Product Type: Disc Filter
- Brand: Automat
- Model No : HT-135T
- Inlet/ Outlet Connection : 3 Inch (7.62 cm approx) BSP/NPT Male Thread
- Max. Operating Pressure : 6 kg/cm2
- Range of Flow Rate : 35 -45 m3/hr
- Max. Recommended Flow Rate : 40 m3/hr (667 Ltr/min)
- Filtration Surface Area : 1193 cm2
- Material of Construction : Reinforce Polypropylene
- Cartridge Diameter : 14 mm
- Cartridge Length : 400 x 2 mm
- Filter Disc (standard) : 120 mesh PP Red disc (Single Removable cartridge)
Applications
:- Effective in filtering organic as well as inorganic contaminants.
- Mainly used if algae quantum into water is more.
Shipping Weight & Dimensions
: Package Dimensions
(L X W X H)
: 10 cm X 10 cm X 10 cm
Package Weight
:
1.20 Kg
