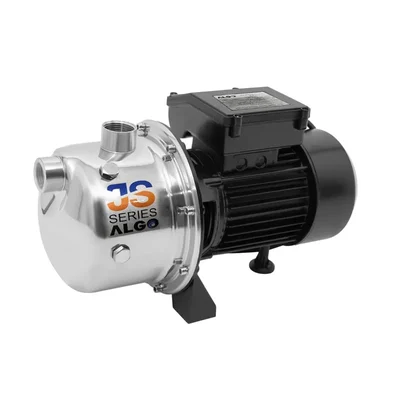

Algo 1.5 Hp Three Phase Self Priming SS Jet Pump 40m Head, 62 LPM Discharge, 25x25mm - 1 Year Warranty (JS-3-11T)
SKU: TI-A1-18824
₹9099 (Including GST)
MRP : ₹13399
Get extra ₹136 Discount (On Checkout)
Delivery By: Apr 15 - Apr 17
Qty:
Easy Return & Refund
Quality Assurance
Trusted Delivery
After Sales Assistance
Buyer Protection
Short Description
Algo 1.5 Hp Three Phase Self Priming SS Jet Pump (JS-3-11T)
40M Max. Head, 62 LPM Max. Discharge
1 Year Warranty
Country of origin: India
Description
A shallow well jet pump is a type of jet pump specifically designed to draw water from shallow wells and to give best hydraulic efficiency and suction lift characteristics. These pumps are mounted above ground and are non-submersible, making them suitable for applications where the water source is relatively close to the surface. Before starting a shallow well jet pump, it must be primed to ensure there is no air in the pump housing. Priming involves filling the priming vent with water until it reaches the top of the vent. Once primed, turn on the power to start the pump. The impeller creates suction that pulls water up through the suction pipe and into the pump, where it is pressurized and then delivered for various applications.
Features
:
Energy Efficient Motor With Tharmal Overload Protection
Large Delivery Lift
High Strength 304 SS Head For Corrosion Resistance & Abrasion
Easy Installation
Lower Noise
Specification
:
Brand: ALGO
Power : 1.5 hp
Weight (Approx.) : 12 kg
Flow Rate : 62 lpm
Head : 40 meter
Model No : JS-3-11T
Product Type : Jet Pump
Brand : Algo
Wattage : 1.1 kW
Rated Voltage : 380-415 Volt, 50 Hz
Electricity Connection : Three Phase
Head Range : 15 to 40 Meter (49.2 to 131.2 Feet)
Discharge Range : 62 to 14 LPM (3720 to 840 LPH)
Pump Size (Suction x Delivery) : 25 x 25 mm (1" x 1")
