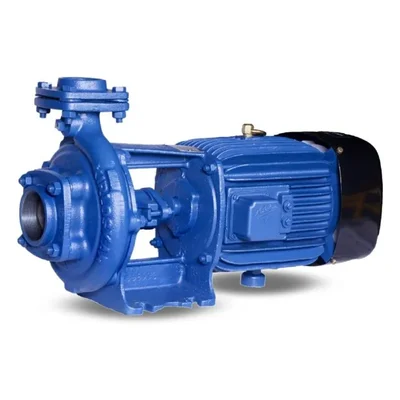

Kirloskar 5 Hp Three Phase Centrifugal Monoblock Pump, 858 LPM, 80X65mm (KDS 527) - 1 Year Warranty

Features

• Flatter Efficiency Curve : Minimum variations in efficiency during entire operating range increases the utility of pumpset for variable conditions.
• Wide Voltage Design : The motor is designed to withstand wide voltage fluctuations from 350 to 440 volts and reduces motor burning in case of low voltage.
• Designed to Prevent Overloading : Lesser chances of motor burning as the motor does not get overloaded even if the pump is operated at a head lower than recommended, thus ensuring substantial cost savings due to low maintenance and breakdown.
• Replaceable Wearing Parts : All wearing parts within the pumps are easily accessible and replaceable which facilitates ease of maintenance thereby extending the life of the pump.
• Dynamically Balanced Rotating Parts : Minimum vibrations protect components from damages during the operations, thus ensuring consistent performance as concentricity is maintained.
• CED – Cathodic Electro Deposition : CED is the latest coating technology for corrosion resistance with uniform coating. It provides 5 times more protection over conventional painting, resulting in longer life. All major CI parts of Kirloskar pumps coming in contact with the water are CED coated.
• Automatic Air Release : Automatically releases air when the pump starts which ensures swifter and smoother operations, thus eliminating the necessity of operating air release cock and ensures swifter and smoother operations.
• High Efficiency And Energy Saving Design : Innovative design manufactured at state-of-the-art plant, delivers optimum efficiency at lower energy consumption resulting in significant cost savings.

Specification

• Model No. : KDS 527
• Product Type : Monoblock Pump
• Brand : Kirloskar
• Motor Power : 5 HP (3.7 kW)
• Power : 415 V, 50 Hz, AC Supply
• Electricity Connection : Three Phase
• Head Range : 16 to 28 Meter (52 to 91 Feet)
• Discharge Rate : 858 to 384 LPM (14.3 to 6.4 LPS)
• Protection : IP 44
• Insulation : B Class
• Pipe Size (Suction x Delivery) : 80 x 65 mm
• Weight : 66 Kg (Approx.)

Applications
