Brand: Kirloskar

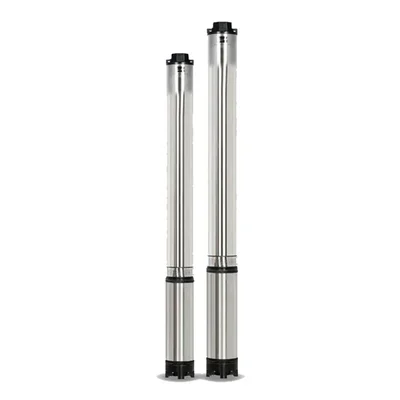

Kirloskar 3 HP 7 Stage 4 inch 3Phase Water Filled Borewell Submersible Pump, 125ft Head - 1 Year Warranty (KS4H-3007)
SKU: DK-KB-2100
MRP : ₹42000
Offer Price : ₹28600 (Including GST)
Get extra ₹429 Discount (On Checkout)
Delivery By: Dec 17 - Dec 19
Qty:
BUY IN BULK
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
Kirloskar (KS4H-3007) 3 HP Borewell Submersible Pump
Three Phase Connection
38M Max. Head
420 LPM Max. Discharge Rate
1 Year Warranty
Country of origin: India
Description
Kirloskar 3 HP 7 Stage 4 inch 3Phase Water Filled Borewell Submersible Pump, 125ft Head - 1 Year Warranty (KS4H-3007)
Features :
- Wide Voltage Design : The motor is designed to withstand wide voltage fluctuations and reduces motor burning in low voltage.
- High efficiency and Energy Saving Design : Innovative design manufactured at state of art plant, delivers optimum efficiency at lower energy consumption resulting in significant cost savings.
- Dynamically Balanced Rotating Parts : Minimum vibrations protect components from damages during the operations, consistent performance as concentricity is maintained.
- Longer and Trouble Free Life : High grade engineering materials like Graded Cast Iron Components, Stainless Steel Shaft, Noryl Impellers, Bronze Bushes, Heavy duty Carbon + SS Thrust Plate. 99.9% pure Copper Rotor and Winding Wires for longer and trouble free life.
- Advanced Water Cooled Motors Designs : The motor is filled with potable water, protects from overheating and facilitates smoother and trouble free operation for the years.
- Wide Voltage Motor Designs with 100% Copper Rotor : Motors are designed with extra overload capacities, more water spaces and engineered with 100% pure Electro Grade Copper performs well in low voltage with minimum discharge drops and suitable for wide voltage applications.
- CED-Cathodic Electro Deposition : CED is the latest coating technology for corrosion resistance with uniform coating, provides 5 times more protection over conventional painting, resulting in longer life. All major Cl parts of Kirloskar pumps coming in contact with the water are CED coated.
Specifications :
- Model No. : KS4H-3007
- Product Type : Borewell Submersible Pump
- Brand : Kirloskar
- Power Source : Corded Electric
- Motor Power : 3 HP (2.2 kW)
- Power Supply : 415 V, 50 Hz, AC Supply
- Electricity Connection : Three Phase
- Cooling Type : Water Filled
- Current Rating : 6.9 Amp
- Boring Size : 4 Inch (100mm)
- Outlet Size : 65 mm
- No. of Stages : 7
- Max. Head Range : 125 Feet (38 Meters)
- Max. Discharge Rate : 420 LPM (25200 LPH)
- Winding Material : Copper
- Weight : 34.4 Kg (Approx.)
Materials of Construction :
- Pump Housing : Stainless Steel
- Pump Shaft : Stainless Steel
- Motor Housing : Stainless Steel
- Motor Shaft : Stainless Steel
- Thrust Bearing : Carbon + Stainless Steel
- Motor/Pump Bushes : Gun Metal
- Impeller : Noryl
- Diffuser : Noryl
- NRV : Cast Iron
- Suction : Cast Iron
Applications :
- Domestic and industrial water supply
- Gardening and small farm irrigation.
- Farmhouse, nurseries and gardens
- Water supplies for high rise building.
- Construction site and Rural area water supply.
Warranty :
- One year on site Warranty
Specifications
:- Product Type: Power - Above 2HP
- Brand: Kirloskar
Shipping Weight & Dimensions
: Package Dimensions
(L X W X H)
: 101 cm X 28 cm X 15 cm
Package Weight
:
35.40 Kg
