Brand: Crompton

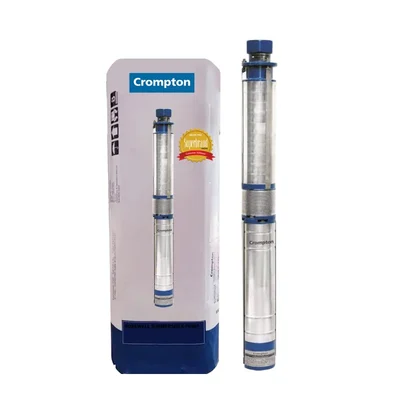

Crompton 1.5 HP 9 Stage 4 inch(V4) 1Phase Water Filled Borewell Submersible Pump - 1 Year Warranty (4W9B1.5J-VX)
SKU: DC-CM-20220498
MRP : ₹21800
Offer Price : ₹17600 (Including GST)
Get extra ₹264 Discount (On Checkout)
Delivery By: Dec 17 - Dec 19
Qty:
BUY IN BULK
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
Crompton 1.5hp 1Ph Borewell Submersible Pump (4W9B1.5J-VX)
73m Max. Head Range
100 LPM Max. Discharge
10 Cm(V4) Borewell Size
1 Year Warranty
Country of origin: India
Description
Crompton 1.5 HP 9 Stage 4 inch(V4) 1Phase Water Filled Borewell Submersible Pump - 1 Year Warranty (4W9B1.5J-VX)
Description :
- A submersible pump is a device which has a hermetically sealed motor close-coupled to the pump body. Electric submersible pumps are multistage centrifugal pumps operating in a vertical position. Liquids, accelerated by the impeller, lose their kinetic energy in the diffuser, where a conversion of kinetic to pressure energy takes place. This is the main operational mechanism of radial and mixed flow pumps. Multiple stage borewell submersible pumps are typically lowered down a borehole, and most typically used for residential, commercial, municipal and industrial water extraction
Features :
- High Grade Electrical Stamping : Reduces electrical losses and improves pump efficiency.
- High Thrust Capacity : Specially designed thrust bearing ensures highest reliability.
- In Built Check Valve : In built check valve prevents pump parts from damage due to sudden back pressure.
- High Quality Noryl : High quality virgin noryl components give longer life.
- Easy for Maintenance : Simple construction, easily replaceable wear and tear parts.
Specifications :
- Model No. : 4W9B1.5J-VX
- Product Type : Borewell Submersible Pump Set
- Brand : Crompton
- Motor Power : 1.5 HP (1.1 kW)
- Electricity Connection : Single Phase
- Motor Type : Water Filled
- No. of Stages : 9
- Outlet Size : 40 mm
- Max. Head Range : 240 Feet (73 Meters)
- Max. Flow Rate : 100 LPM (6000 LPH)
- Weight : 18.7 Kg (Approx.)
Suitable For :
- 4 inch (100 mm) Boring.
Material Of Construction :
- Diffuser : Noryl
- Impeller : Noryl/Delrin
- Pump Shaft : Stainless Steel-SS410
- NRV Body : Cast Iron-Grade FG 200
- Motor Body : Stainless Steel-SS202/SS304
- Pump Jacket : Cast Iron-Grade FG 200
- Upper Housing, Motor Base : Stainless Steel-SS202
- Bush : Bronze LTB-4
- Motor Shaft : Stainless Steel-SS420
- Stamping : CRNGO-M47
- Thrust Bearing : SS Vs Zytel / SS Vs Carbon
- Strainer : Stainless Steel-SS202
- Fastener : Stainless Steel-SS410
- Sealing : Oil seal
Applications :
- Gardening
- Sprinkler irrigation
- Multistoried buildings water supply
- Water supply for domestic and industrial application
- Drip irrigation
- Construction site
Warranty :
- 1 year warranty on manufacturing defects only.
Specifications
:- Product Type: Power - 1.5HP
- Brand: Crompton
Shipping Weight & Dimensions
:Verified Package Dimensions
(L X W X H)
: 68.1 cm X 21 cm X 13 cm
Package Weight
:
19.37 Kg
