Brand: HPM

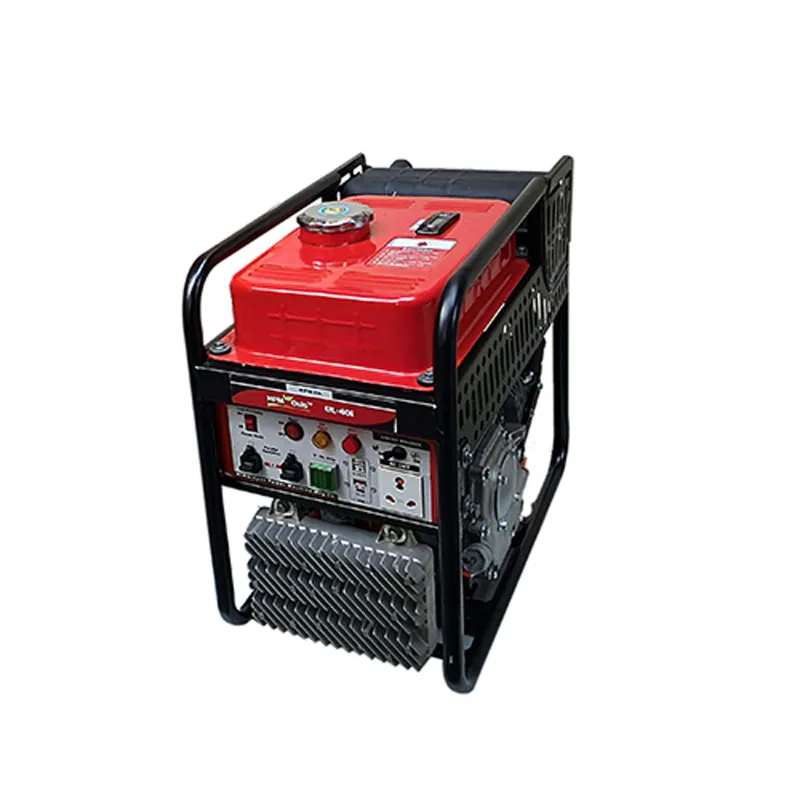

HPM 4 KVA Recoil Start Petrol Inverter Portable Generator (Oasis UL-40i-EV)
SKU: TI-H4-22481
MRP : ₹103030
Offer Price : ₹69230 (Including GST)
Get extra ₹1,038 Discount (On Checkout)
Delivery By: Dec 25 - Dec 27
Qty:
BUY IN BULK
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
HPM 4 KVA Petrol Inverter Generator
Recoil Start
16.5 Amp Rated Current Of Generator
7 Ltr. Fuel Tank Capacity
Country of origin: India
Description
The HPM Oasis UL-40i-EV is a 4 KVA petrol inverter generator with recoil start. It provides clean power, low noise, and high fuel efficiency. Ideal for camping, RVs, and small households, it features automatic voltage regulation, overload protection, and a durable design. Suitable for sensitive electronics.
Features
:- 4 KVA Genset, Ultra-Light Weight, Digital Invertor Based Alternator, Electronic Governor keeps Low Engine RPM at part loads for low fuel consumption.
- Gives a Stable Regulated voltage 230 ± 1% and Stable Frequency 50 Hz ± 1 % & Pure Sine Wave, THD < 2%
- To get more Power to Run Heavy Equipment, 2 or More HP 40i Generator can be made to Run In Parallel, Two HP40i Generators in Parallel will produce 4 KVA + 4 KVA = 8 KVA Power
Specification
:- Product Type: Normal Generator
- Brand: HPM
- Weight (Approx.) : 33 kg
- Model No. : Oasis UL-40i-EV
- Dimensions (L x W x H) : 532 x 312 x 525 mm
- Weight : 33 Kg (Approx.)
Generator :
- Max AC. Output VA : 4000
- Rated AC. Output VA : 3800
- Rated Current Amps : 16.5
- NFB Amps : 17
- AC. Voltage : 230 Volts ± 1%, 50 Hz ± 1%, Single Phase, THD < 2%
- Alternator Type : Multi-Phase – Permanent Magnet (18 Pole) – Self Excitation
- Invertor : 100 KHz, IGBT Based Digital Invertor – 4 Kw
DC Outputs :
- DC Outputs - 5V to 20 V & DC Ports
- USB Output (1 to 2) : 2* 5V DC, 2.4 A (12W Per Port)
- USB Output Fast Charging QC 3.0 (3) : 1* 5V - 12V DC (18W-Max) 5V3A, 9V 2A, 12V 1.5A
- Type - C USB (4) : 1* 'C' Type - 1* USB C PD 2.0 (30W) 5V 3A, 9V 3A, 12V 1.5A 15 V 1.5A 20 V 1.5A
- Model : HM170P
- Type : OHV25°Inclined, Single Cylinder,4 Strokes, S.I, Forced Air Cooling
- Maximum Power : 6.5 HP @ 3600
- Bore x Stroke : 70x58 mm
- Displacement : 223 cc
- Starting System : Recoil Start
- Governor : Electronic Governor (Load Sensitive – Variable Speed) Engine RPM 2200 (No Load) to 3800 RPM (at Full load)
- Fuel : Petrol
- Fuel Tank Capacity : Petrol -7 Ltr.
- Fuel Consumption : Petrol 1.5 ltr/hr Approx.
- Lube. Oil Capacity : 600 ml.
- Lubricating Oil Consumption : 2.5 gm./Hr.
- Sound level (Db) (from 1 meter) : <86Db (as per CBCP - II Norms)
- Continues Running (With One Filling) : 5 Hrs. Approx.
Panel & Other Standard Features :
- Multifunction Digital Meter & Indicator : Digital Control Panel (V, Hz, Amp)
- Oil Alert System : Yes
- Over Load Indicator : Yes
- 2 Genset Paralleling Capability : Yes, Red & Black Pair of Sockets Provided in Control Panel for Paralleling of 2 Generators
- Fuel Level Gauge : Yes
- AC On /Off, Overload Protection (NFB) : Yes
- Electronic Over Load Protection : Yes, Inbuilt with Inverter
Accessories
:- Owner Manual 1 pcs
- Funnel 1 pcs
- Screw Driver 1 pcs
- Spanner 1 pcs
- Three Pin Plug 1 pcs
Applications
:- Being Light Weight and Portable Genset, It is very suitable for serving electrical requirements in remote areas / Field applications and running of sensitive Electronic Products Like Laptops / Computers / Digital Appliances, For charging Inverters, for all types of Frequency & Voltage sensitive Equipment’s, Military & Powering Defense Equipment’s Etc.
