Brand: BTALI

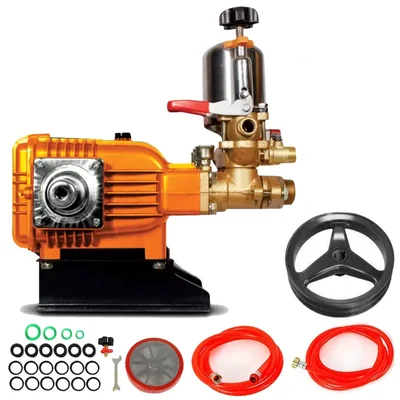

Btali BT 22 ASP, 3 Piston HTP Spray Pump With 2 Outlet For Cleaning & Agricultural Spray
SKU: TI-BB-17008
₹4900 (Including GST)
MRP : ₹7200
Get extra ₹74 Discount (On Checkout)
Delivery By: Feb 10 - Feb 12
Qty:
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
Btali HTP Power Sprayer (BT 22 ASP) With Accessories
40 LPM Max. Discharge
40 Kg/Cm² Max. Pressure
Triple Piston
Country of origin: China
Description
Introducing the "HTP Pump without Motor/Engine" from Toolsvilla - a powerful and efficient solution for all your fluid transfer needs. Engineered with precision and durability, this high-quality pump delivers exceptional performance without the added weight and complexity of a built-in motor. Designed for versatility, the HTP Pump is compatible with a wide range of power sources, allowing you to seamlessly integrate it into your existing setup. Boasting a robust construction and reliable operation, this pump is the ideal choice for industrial, agricultural, and commercial applications. Whether you're transferring liquids, chemicals, or even viscous fluids, the HTP Pump ensures a smooth and controlled flow, making it a must-have addition to your toolbox. Experience the convenience and reliability of the "HTP Pump without Motor/Engine" from Toolsvilla. Order yours today and elevate your fluid management.
Features
:- REMOVES STUBBORN DIRT UNDER TOUGH WORKING CONDITIONS
- RESULTS IN EFFECTIVE CLEANING
- SUITABLE FOR LARGE SPRAYING OPERATIONS
- FITTED WITH STAINLESS STEEL VALVES
Specification
:- Product Type: HTP without Motor
- Brand: BTALI
- Weight (Approx.) : 7.5 kg
- Model No : BT 22 ASP
- Required Motor : 2 HP
- Required Engine : 5 HP - 6.5 HP
- Suction Volume : 30 to 40 LPM
- Speed : 800 to 1400 RPM
- Delivery Output : 15-20 LPM
- Pressure : 10 to 40 Kg/Cm² (142 to 569 PSI)
- Pulley Size : 7 Inch (17.7 cm)
- No. Of Pistons : 3
- No. of Cock (Outlet Connections) : 2
- Suitable Hose Pipe Diameter : 8.5 MM & 10 MM
- Pump Oil Capacity : 700 ml (20W40)
- Spray Range (Vertically) : 15 to 20Feet
- Max Hose Pipe Can Be Connect : 50 to 100 meter
Accessories
:- Suction Hose Pipe
- Overflow Hose Pipe
- Pulley
- Filter
- Tool Kit & Washer
- User Manual
Applications
:Areas Of Application :
- Suitable for large spraying operations in orchards, coffee & tea plantations and ground crop etc.
- Used for spraying in field.
- Suitable for Bike/Car washing.
- Suitable for residential use.
Usage
:- Mount the motor with suitable engine or electric motor
- Attach the inlet pipe, overflow pipe, and hose pipe.
- Connect with electricity if mounted with motor or pour the fuel in fuel tank and the engine oil in engine oil chamber accordingly and start the engine if mounted with an engine
- Be sure about safety precautions.
- Do your work as per your needs.
Always refer to the manufacturer's instructions and safety guidelines when operating an HTP pump without a motor.
Shipping Weight & Dimensions
: Package Dimensions
(L X W X H)
: 36 cm X 29 cm X 35 cm
Package Weight
:
7.93 Kg
