Brand: 4G

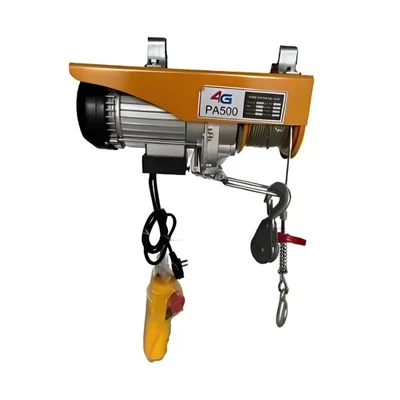

4G PA 500 kg 1020W Mini Electric Hoist, 4 mm diameter & 30 meter long Wire Rope
SKU: TI-45-12148
₹8950 (Including GST)
MRP : ₹16000
Get extra ₹134 Discount (On Checkout)
Delivery By: Apr 25 - Apr 27
Qty:
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
4G 500 kg Mini Electric Hoist
Rated Voltage 220V, 50Hz
Rated Capacity 500 Kg
30 meter Wire rope length, 4 mm diameter
Remote Controlled Electric hoist
Country of origin: China
Description
4G PA 500 kg 1020W Mini Electric Hoist, 4 mm diameter & 30 meter long Wire Rope
Description :
- The raising, lowering, and transferring of objects and goods is done with the use of material handling equipment called electric hoists. They are mounted above the ground, and an electric motor drives them. Electric wire rope and chain hoists are the two primary varieties of electric hoists.
Features :
- With an emergency stop switch
- Reinforced breaking switch with position limit
- Protection class up to IP40
- With a thermal prevention device
Specifications :
- Model No. : PA-500
- Product Type : Mini Electric Hoist
- Brand : 4G
- Phase : Single Phase
- Trolley Option : Without Trolley
- Winding : Copper Winding
- Power Source : Electric
- Working : Remote Controlled
- Frequency : 50 Hz
- Method Of Use : Single & Double Hook
- Single Hook Load Capacity : 250 kg
- Double Hook Load Capacity : 500 kg
- Rated Voltage : 110/220 V
- Rate Lifting : 150 to 300 Kg
- IP Rating : IP40
- Wire Rope Diameter : 4 mm
- Wire Rope Length : 30 mtr (3000 cm)
- Input Power : 1020 W
- Lifting Speed : 8/4 m/min
- Lifting Height : 15/30 m
- Work Rate : 20% 10 min
- Motor Speed : 2800 RPM
- Body Material : Cast Iron
- Usage/Application : Industrial
Application :
- Warehouses, automotive servicing, machine shops, manufacturing facilities, factories, building sites, and railroad construction.
In The Box :
- 1 Electric Hoist.
- 1 Electric Hoist Remote.
- 1 Eye Hook.
- 30-meter Wire Rope.
- Mounting Case
- Nutbolts and Clamps
Note :
- All these accessories are assembled with the machine.
Specifications
:- Brand: 4G
- Power : 1020 w
- Weight (Approx.) : 16.5 kg
- Load Capacity : 500 kg
- Phase : Single
