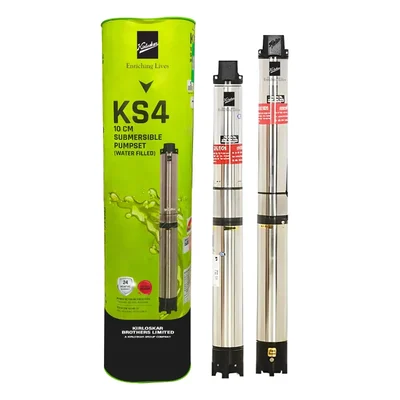

Kirloskar 5HP 17 Stage(4") 3Phase Water Filled Borewell Submersible Pump, 377ft Head - 2 Years Warranty (KS4G-5017)

Features

• Wide Voltage Design : The motor is designed to withstand wide voltage fluctuations from 280 to 440 volts and reduces motor burning in low voltage
• High efficiency and Energy Saving Design : Innovative design manufactured at state of art plant, delivers optimum efficiency at lower energy consumption resulting in significant cost savings.
• Dynamically Balanced Rotating Parts : Minimum vibrations protect components from damages during the operations, consistent performance as concentricity is maintained
• Longer and Trouble Free Life : High grade engineering materials like Graded Cast Iron Components, Stainless Steel Shaft, Noryl Impellers, Bronze Bushes, Heavy duty Carbon + SS Thrust Plate, 99.9% pure Copper Rotor and Winding Wires for longer and trouble free life.
• Advanced Water Cooled Motors Designs : The motor is filled with potable water, protects from overheating and facilitates smoother and trouble free operation for the years.
• Wide Voltage Motor Designs with 100% Copper Rotor : Motors are designed with extra overload capacities, more water spaces and engineered with 100% pure Electro Grade Copper performs well in low voltage with minimum discharge drops and suitable for wide voltage applications.
• CED-Cathodic Electro Deposition : CED is the latest coating technology for corrosion resistance with uniform coating, provides 5 times more protection over conventional painting, resulting in longer life. All major Cl parts of Kirloskar pumps coming in contact with the water are CED coated.

Specification

• Model No. : KS4G-5017
• Product Type : Borewell Submersible Pump
• Brand : Kirloskar
• Motor Power : 5 HP (3.7 kW)
• No. of Stages : 17
• Power Supply : 415V, 50 Hz, AC Supply
• Electricity Connection : Three Phase
• Cooling Type : Water Filled
• Outlet Size : 50 mm
• Current Rating : 10.6 Amp
• Boring Size : 100mm (4 inch)
• Max. Head : 115 Meter (377 Feet)
• Max. Discharge Rate : 240 LPM (14400 LPH)
• Insulation : B Class
• Protection : IP 68
• Winding Material : Copper
• Weight : 45.64 Kg (Approx.)
