Brand: Harshyam Techno

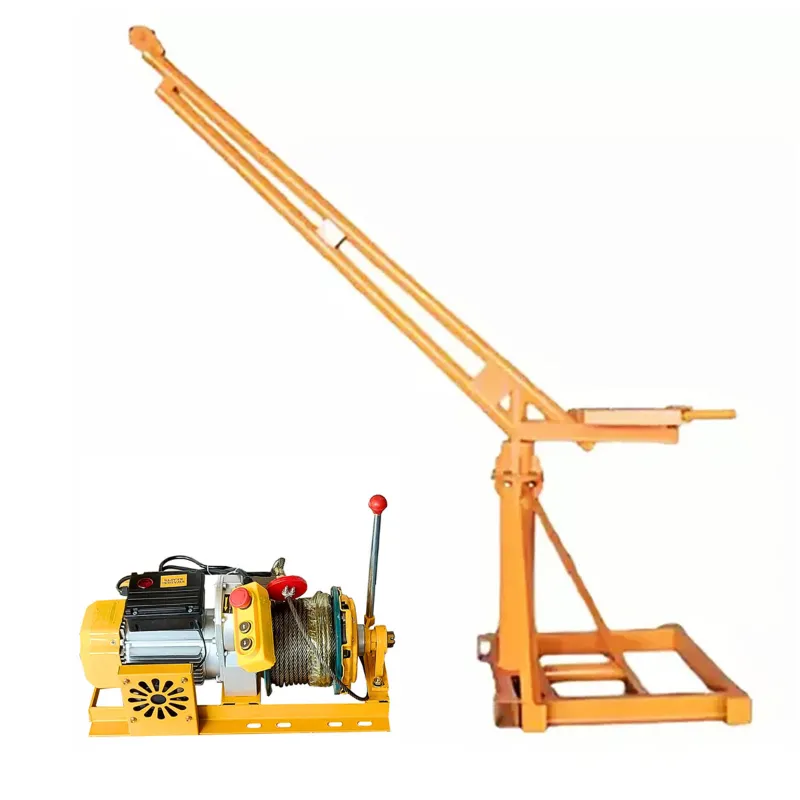

Harshyam Techno 500 kg Capacity Mini Crane With Electric Clutch Winch, 3 HP Copper Winding Motor, 50 Meter Long Wire Rope
SKU: TI-HT-15656
MRP : ₹50000
Offer Price : ₹33600 (Including GST)
Get extra ₹504 Discount (On Checkout)
Delivery By: Dec 31 - Jan 2
Qty:
BUY IN BULK
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
Electric Hoist Structure Mini Crane With 500KG Capacity
It comes with an Electric Clutch Winch (50-meter rope and 3 HP motor)
Easy to use
Single Phase
Country of origin: India
Description
Harshyam Techno 500 kg Capacity Mini Crane With Electric Clutch Winch, 3 HP Copper Winding Motor, 50 Meter Long Wire Rope
Description :
- The 360° Mini Crane Electric Hoist Structure is a device that has been made to function well with little upkeep. Users of the 360° Mini Crane Electric Hoist Structure receive magnetic lifting strength, including the ability for one side to expand and retract utilizing straightforward, user-friendly mechanics.
- This machine is small and compact in size.
- Easy to operate and can be used in smaller areas.
- Widely used in Civil constructions, restricted areas, rooftop work, steel erection, residential construction, tunnel and underground, forestry, uneven groundwork, marine construction, etc. for lifting materials.
Features :
- This machine is small and compact in size.
- Easy to operate and can be used in smaller areas.
- Strong and heavy motor.
- Heavy and Thicker wire rope.
Specifications (Crane with Electric Clutch Winch) :
- Product Type : Lifting Mini Crane with Electric Clutch Winch
- Rotation Angle : 360°
- Phase: Single Phase
- Motor : 3 HP
- Winding : 100% Copper Winding
- Load Capacity : 500 kg
- Input Power : 2000 W
- Rated Voltage : 220V
- Clutch System : Yes
- Wire Rope Length : 50 meters
- Wire Rope Diameter : 8 mm
- Maximum Lifting Height : 50 meters
- Continuous Working Capacity : 2 hrs. (Approx.)
- Speed : 15-20 meter per mins
- Weight : 100-115 Kg (Approx.)
Specification ( Electric Clutch Winch ) :
- Product Type : Electric Winch Machine
- Winding : 100% Copper
- Clutch System : Yes
- Motor power : 3 HP
- Phase : Single
- Voltage : 220 V
- Wire Rope Length : 50 meter
- Wire rope Thickness : 8 mm
- Lifting Capacity (Single/Double-Wire Rope) : 500/1000 kg
- Lifting Height Single Hook : 25 meters
- Lifting Height Double Hook : 50 meters
- Lifting speed (Single/Double -Wire Rope) : 15-20 meter per minute
- Continuous Working Capacity : 2 hrs. (Approx.)
Application :
- Widely used in Civil constructions, restricted areas, rooftop work, steel erection, residential construction, tunnel and underground, forestry, uneven groundwork, marine construction, etc. for lifting materials.
Package contains :
- 1 x Crane
- 1 x Electric Clutch Winch
- 1 x Eye Hook
- 1 x Wire Rope
- 1 x Remote
- 1 x Voltmeter
Note :
- Crane (Made In India)
- Electric Clutch Winch (Imported)
- This product comes with a 6-month support assurance. And, we provide after-sales support any time after purchase.
Specifications
:- Product Type: Floor Cranes
- Brand: Harshyam Techno
