Brand: KBS

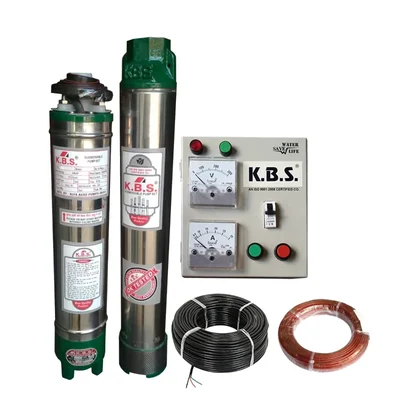

KBS 1.5 HP 18 Stage(3 inch) V3 Single Phase Water Cooled Submersible Pump With Control Panel, 30M Submersible Cable, Safety Wire & 1 Year Warranty
SKU: TI-K1-16871
₹10300 (Including GST)
MRP : ₹15000
Get extra ₹155 Discount (On Checkout)
Delivery By: Apr 7 - Apr 9
Qty:
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
KBS 1.5 Hp 1 Phase 18 Stage Submersible Pump With Control Panel
180ft. Max. Head, 70 LPM Max. Flow Rate
3 inch Bore, V3 Type
1 Year Warranty
SPECIAL NOTE : THIS BOREWELL SUBMERSIBLE PUMP WORKS ON AC ELECTRIC POWER SUPPLY AND IS NOT COMPATIBLE WITH SOLAR PANEL SYSTEMS.
Country of origin: India
Description
KBS 1.5 HP 18 Stage(3 inch) V3 Single Phase Water Cooled Submersible Pump With Control Panel, 30M Submersible Cable, Safety Wire & 1 Year Warranty
Features :
- Corrosion resistant stainless steel body
- Specially designed for low voltage working
- High Electrical and Mechanical efficiency
- Higher heat dissipation
- Dynamically balanced rotor and other rotating parts for uniform clearance
- Specially designed bearing to withstand axial thrust loads
- Designed for high voltage fluctuation
- High efficiency, low power consumption.
- Thrush Bearing
Specification :
- Product Type : Submersible Pump
- Brand : KBS
- Wattage : 1.1 kW
- Supply Voltage : 150-240 Volt, 50 Hz, AC Power Supply
- Electricity Connection : Single Phase
- No Of Stages : 18 Stage
- Pump Type : V3 Type
- Suitable Bore Size : 3 inch (76 mm)
- Cora : 3
- Max. Head Range : 180ft. (54 Meter)
- Max. Flow/Discharge Rate : 70 LPM (4200 LPH)
- Pipe Size (Suction x Delivery) : 25 x 25 mm (1 x 1 inch)
- Stamping : 200 mm
Accessories :
- Control Panel
- 30 Meter Submersible Cable
- Safety Wire
Material Of Construction :
- Motor Body : Stainless Steel
- Pump Bowl : PVC
- Motor Shaft : Steel
- Thrust Bearing : Carbon Vs Stainless Steel
- Rotor : Die Cast
Application :
- Drinking water supply. Domestic & community water supply.
- Drip irrigation, Sprinkler irrigation and gardening.
- Housing-Complexes, Hospitals, High rise building.
- Fire fighting, Landscaping, Fountains, Service stations.
- De-watering of mines, Cooling water circulation and Booster application.
Warranty :
- 1 Year WARRANTY on manufacturing defects only.
Warranty Terms :
- Dry Run Accidental Damages Are not covered in the warranty
- For claiming the warranty please drop a mail at support@toolsvilla.com with proper bill or Order ID
- You have to send the product to the sellers warehouse.
- Buyer has to bear the courier charges of both side for sending the product.
Specifications
:- Brand: KBS
- Power : 1.5 hp
- Weight (Approx.) : 16.5 kg
- Flow Rate : 70 lpm
- Head : 54 meter
