Brand: GRAMSTRONG

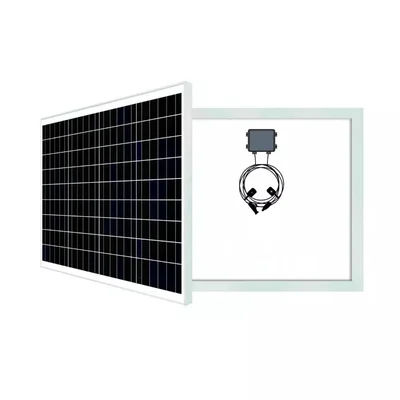

75W 36 Cell Monocrystalline Class A Solar Panel With Tempered Glass (1 Year Warranty) for home, Industrial Purpose
SKU: TI-7M-26119
₹3150 (Including GST)
Get extra ₹47 Discount (On Checkout)
Delivery By: Apr 9 - Apr 11
Qty:
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
Application Class Class-A (Safety Class II)
1 Year Warranty Applicable for Manufacturing Defect
Superstrate 3.2mm High Transmission Low Iron Tempered Glass
Back Sheet PET
Country of origin: China
Description
75 W Polycrystalline solar cells can help you generate up to 75 W of electricity on a single charge. This panel is very easy to install and is not at all heavy. This panel can be dismantled and reinstalled at any other location very easily.
Built with Heavy-duty silver anodized aluminum frame with Pre-drilled holes on the back of the panel for easy & fast Installation.
Features
:- Increased module power output.
- Higher area efficiency Reduced BOS cost and Excellent low light performance .
- Reduced electricity bills, maximized power generation, better performance in hot climates, low maintenance cost, high durability and diverse applications.
- Easy installation & handling for various application.
Specification
:- Brand: GRAMSTRONG
- Weight (Approx.) : 7.6 kg
- Model Name : WP RPS 75 W MONO
- Wattage : 150 W
- Rated Voltage (V) : 18.6V
- Maximum Current Impp (A) : 4.16 A
- Open Circuit Voltage V (V) : 20.5 V
- Short Circuit Voltage lc (A) : 4.7 A
- Module Efficiency (%) : 23
- Number of Cell : 36
- Frame Material : Anodized Aluminium Alloy
- Junction Box : IP 65 rated with 2 bypass diodes
- Cell Encapsulant : PID Free EVA (Ethylene Vinyl Acetate)
- Back sheet : Composite Film - White ( Black & Transparent Optional )
- Frame : Silver Anodized Aluminum frame with twin wall profile
- Mechanical Load Test : Sustain heavy static load (5400 Pa)
- Dimension (L x W x H) : 510 x 765 x 30 mm(± 10mm)
Applications
:- Perfect solar panel for your home solar rooftop systems, Solar water pumps, Caravans, Large solar projects, EV charging stations etc.
- Excellent performance in low light & cloudy sky condition
