Brand: Generic (Imported)

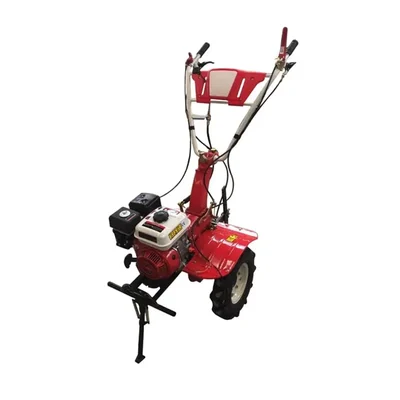

Heavy Duty 7HP Petrol Power Weeder Gear Drive with PTO Shaft
SKU: SG-PT-2020
₹28800 (Including GST)
MRP : ₹36000
Get extra ₹432 Discount (On Checkout)
Delivery By: Feb 9 - Feb 11
Qty:
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
Heavy Duty Petrol Power Tiller for Agriculture (7 HP Power) which is suitable for Wet, Dry and Muddy Lands its Tilling Width is 18 - 40 inch ((45.72~101.6 cm) Approx) which can be adjustable and can Till upto 3-9 ((7.62~22.86 cm) Approx) Inch Depth in Soil with Speed of 3600 rpm having 3 Gears like 2 Forward 1 Reverse. It Consume fuel from 550 to 650 ml/hr (Depend upon Usage).
Country of origin: China
Description
This heavy-duty petrol powered tiller (7 HP power) is ideal for use in wet, dry, and muddy soil. Its tilling width is adjustable from 18 to 40 inches ((45.72~101.6 cm) Approx) , and it can till up to 3 to 9 inches ((7.62~22.86 cm) Approx) deep. Its speed is 3600 rpm, and it has three gears: one for forward and one for reverse. Fuel consumption ranges from 550 to 650 ml per hour, depending on usage.
Features
:- Light weight & low vibration
- Mature technology, durable in using
- Easy turning (360 degree) steering design
- Suitable for Horticulture & plantation crops
- Useful for Inter-Cultivation & step cultivation
Specification
:- Product Type: Weeder 7HP Petrol
- Brand: Generic (Imported)
- Power : 7 hp
- Weight (Approx.) : 82 kg
- Fuel Used : Petrol
- Displacement : 212 cc
- Stroke : 4
- Product Type: Power Weeder
- Brand: Generic (Imported)
- Engine HP : 7 HP
- Displacement : 212 CC
- RPM : 3600
- Engine Type : Petrol
- Lubricating System : Splash Type
- Stroke : 4
- Starting : Recoil Start
- Chassis Size : 905 x 460 x 780 mm
- Gear Shift : 2 Forward , 1 Reverse
- Shaft : PTO Shaft
- Gear Box : Constant Mesh Type
- Transmission : Gear Drive
- Fuel Tank Capacity : 3.6 L
- Fuel Consumption : 550-650 ml/hr
- Engine oil - 0.60L(20w40/ 15w40)
- Gearbox oil - 1.5 L(SA90 )
- Cultivation Width : 18 - 40 inch (45.72~101.6 cm) Approx (Adjustable)
- Cultivation Depth : 3 - 9 inch (7.62~22.86 cm) Approx
- No of Blades : 32 Blades
- Depth Adjustment : Multistage Adjustable Market

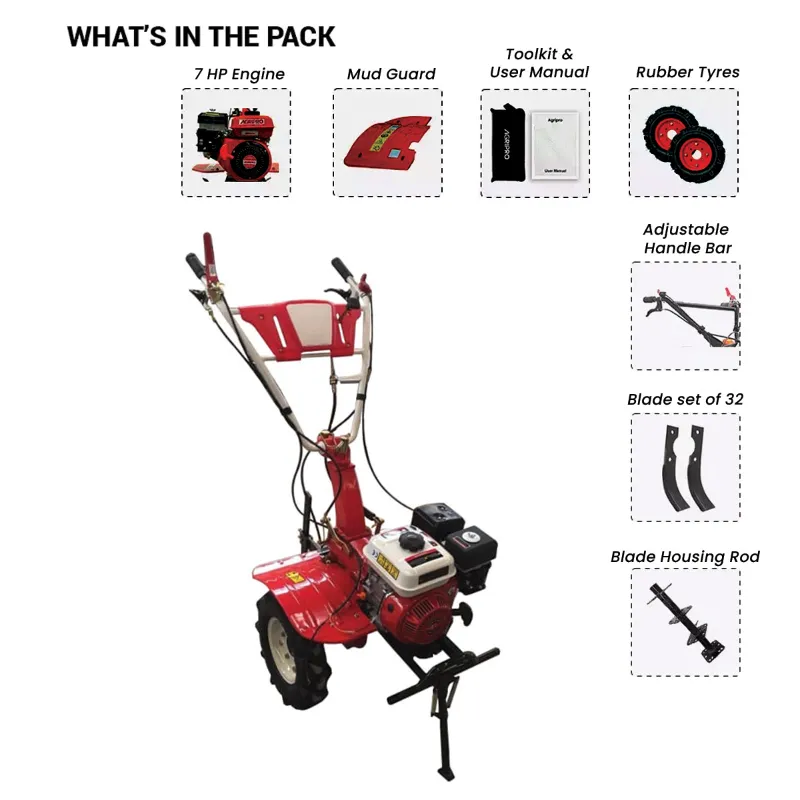

Accessories
:- One set of Tyre
- 32 Pcs Blades
- 2 Pcs of Rotary Shaft
- 1 Pc of of Back Rod
- 2 Pcs of Side Disc
- Tool Kit
Note : Color may vary
Usage
:Before you start :
- Read the Manual Properly.
- Ensure that all parts are securely assembled, including wheels, handles, and blades. Check for any loose bolts or connections.
Starting the machine:
- Fill the tank with petrol (No 2T oil needed) there is a separate chamber for pouring the engine oil.
- Pull the starter rope briskly to start the engine.
- Squeeze the clutch handle to engage the blades. This will start rotating them, allowing you to begin tilling.
- To move forward, hold down the clutch while guiding the tiller in your desired direction. Adjust your grip on the handles to control depth and direction; pulling up on one handle can help turn or pivot.
- For deeper tilling, allow the tines to dig in place before moving forward. You can also reverse if needed by shifting into reverse gear while holding down the clutch.
- To stop, release the clutch handle. Ensure that you shift back into neutral before shutting off.
- Turn off the engine following proper procedures outlined in your manual. This usually involves switching off fuel supply and allowing it to idle for a moment before turning off completely.
Shipping Weight & Dimensions
:
Verified Package Dimensions
(L X W X H)
: 83.82 cm X 45.72 cm X 60.96 cm
Package Weight
:
84.60 Kg
