Brand: Boltz

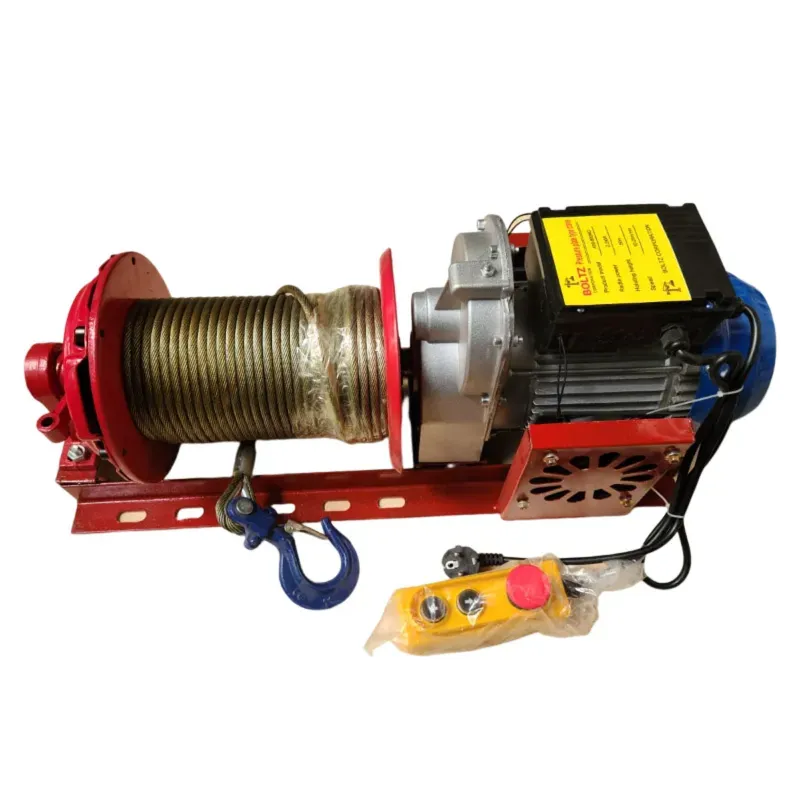

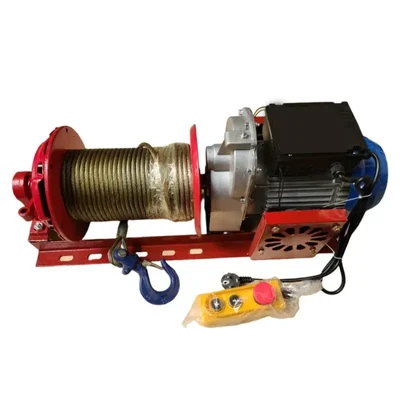

Boltz 3 hp Long Drum Electric Clutch Winch With 8 mm, 50 meter Wire Rope, 400-800 kg load capacity
SKU: TI-B3-13806
MRP : ₹28210
Offer Price : ₹21700 (Including GST)
Get extra ₹326 Discount (On Checkout)
Delivery By: Jan 1 - Jan 3
Qty:
BUY IN BULK
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
Electric Winch Machine
400-800 kg load capacity
3 hp copper winding motor, 220 V
8mm, 50-meter wire rope
Country of origin: China
Description
Boltz 3 hp Long Drum Electric Clutch Winch With 8 mm, 50 meter Wire Rope, 400-800 kg load capacity
Description :
- Includes the best bearings, a heavy-duty motor clutch
- For safety, there is a pre-installed travel switch and a time-saving clutch.
Features :
- Electric Hoist Structure Monkey Crane With 400-800 KG Capacity
- 2 cooling fans that stop the winch from overheating
- This motor ensures smooth and reliable operation, enabling precise control during both lifting and pulling operations.
- Clutch Mechanism : The inclusion of a clutch mechanism enhances the winching process, allowing operators to easily engage or disengage the winch as needed.
- 100% Pure Copper Motor
- 8 mm 50 meter Wire Rope
- Big Cooling Fans
Specification :
- Product Type : Electric Winch Machine
- Brand : Boltz
- Winding : 100% Copper
- Clutch System : Yes
- Motor power : 3 hp
- Phase : Single
- Voltage : 220 V
- Frequency : 50 Hz
- Gear Lubrication : Grease
- Wire Rope Length : 50 meter
- Wire rope Thickness : 8 mm
- Lifting Capacity (Single/Double-Wire Rope) : 400/800 kg
- Lifting Height Single Hook : 25 meters
- Lifting Height Double Hook : 50 meters
- Lifting speed (Single/Double -Hook) : 7/14 meters per minute
- Continuous Working Capacity : 2 hrs. (Approx.)
- Dimension (L*B*H) - 70*30*30 cm
Applications :
- Widely used in Civil constructions, restricted areas, rooftop work, steel erection, residential construction, tunnel and underground, forestry, uneven groundwork, marine construction, etc. for lifting materials.
In the Box :
- 1 x Electric Clutch Winch
- 1 x Eye Hook
- 1 x Wire Rope
- 1 x Remote Control
- 1 x Voltmeter
Note :
- The video shown is for illustration purposes only and may not be an exact representation of the product. The color and Shape of the product may vary.
Specifications
:- Product Type: Electric Winch
- Brand: Boltz
- Weight (Approx.) : 40 kg
