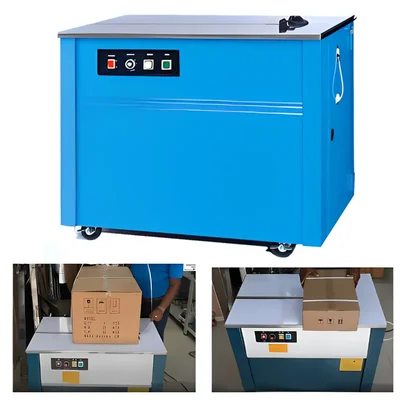

Semi-Automatic 0.25 KW Strapping Machine

Features

• High engineering standard and simple design
• Easy to operate
• Simple maintenance
• Mechanical outside tension control
• Rigid castors with break
• Reliable P.C. board control

Specification

• Model No. : TP 201
• Product Type : Strapping Machine
• Strapping Speed : 2.5 Sec

• Power Source : Electric
• Power Consumption : 0.25 Kw
• Voltage : 220 V
• Frequency : 50/60Hz
• Minimum Packaging Size : 20(H) x 80(W)
• Strap Core Inner Dia : 200 mm
• Strap Width : 6-15 mm ( Adjustable )
• Strap Thickness : 0.5-0.75 mm
• Strapping Tension : 15-45 kg (Max)
• Max Package Weight : 100 Kg
• Weight : 100 Kgs (Approx.)

Applications

• E-commerce Fulfillment : With the rise of e-commerce, businesses require efficient packaging solutions to ensure products are securely bundled for shipping.
• Packaging in Warehousing : This model is particularly effective in environments where large volumes of packages need to be secured quickly. It can strap cartons, boxes, and other types of packaging that are commonly handled in warehouses.
• Consumer Goods Industry : To protect goods like electronics, appliances, apparel, and other retail products, retailers in this sector rely on strapping devices, such as box strapping machines. These devices aid in preventing harm to items during storage and transit, guaranteeing that they arrive at their destination in ideal condition.
• Printing and Publishing : In industries such as printing and publishing, where newspapers or books are bundled together for delivery, the semi-automatic strapping machine provides a reliable method for securing these items efficiently.

Usage

• Preparation Before Use : Ensure that the machine is connected to a suitable power source. Check all components of the strapping machine for any signs of damage or wear.
• Setting Up the Strapping Material : This machine is  designed for straps ranging from 9 mm to 15 mm in width. Choose a strap that fits within this range based on your packaging needs. Then load the strap roll onto its holder. After that pull a length of strap from the roll and thread it through the feeding mechanism.
• Operating the Machine : Place your package securely on the machine’s platform, ensuring it is stable and aligned with where you want to apply strapping. With everything set up, press the start button to initiate strapping.
• Post-Strapping Procedures : Once you have completed strapping all packages, turn off the machine if not in continuous use.
