Brand: Imperium

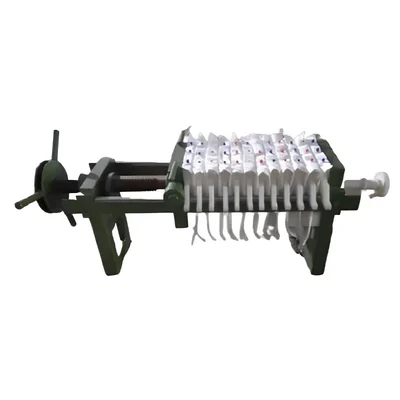

Commercial 12 Plates Oil Filter Machine, 50-60 Liters per Hour Capacity
SKU: SD-IV-20231309
₹98240 (Including GST)
MRP : ₹99999
Qty:
Get Best Price
Short Description
12 Plates Oil Filter Machine
5 bar operating pressure
Country of origin: India
Description
The Commercial 12 Plates Oil Filter Machine is used for carrying out the oil filtration process upon following a series of steps. This machine basically removes the impurities and sediments present in the oil, ensuring the production of high quality oil suitable for consumption and operates through a series of steps, including pre-treatment, filtration, collection of impurities and obtaining purified oil. It has a working pressure of 5 Bar and it consists of 12 pieces of filter plates and has a filtration capacity of 50-60 liters per hour and it is designed to withstand heavy duty usage which makes it perfectly suitable for commercial usage.
Features
:- Compact Structure : The design of the machine is compact, making it suitable for various operational spaces without requiring excessive room.
- High Filtration Speed : This machine is engineered to provide a high filtration speed, ensuring that the filtering process is efficient and time-effective.
- Quality Filtration : The filtered oil produced by this machine is of high quality and no sediment left in the final product.
- Simple Operation : The operation of the 12 plates oil filter machine is straightforward, allowing users to easily manage the filtering process without extensive training.
Specification
:- Brand: Imperium
- Material : Cast Iron
- Model No. : IMP-PF12
- Capacity : 50-60 lit/hr
- No. of Plates : 12
- Plate Size : 470 x 470 mm
- Filtration Area : 0.25 m2
- Operating Pressure : 5 Bar
- Dimension (L x B x H) : 112 x 58 x 69 cm
- Weight : 200 kg (Approx.)
Note : Suitable for extracting oil from edible seeds only.
Usage
:Step 1: Preparation
- Clean the Machine : Before using the filter press, ensure that all components are clean. Any residue from previous uses can contaminate the oil.
- Inspect the Filter Plates : Check for any damages or wear. Replace any damaged plates to ensure optimal performance.
Step 2: Setup
- Position the Machine : Place the filter press on a stable surface away from any water source or direct sunlight.
- Connect the Pump : Attach the pump to the inlet of the filter press. Ensure that all connections are secure to avoid leaks.
Step 3: Loading the Oil
- Fill the Oil Tank : Pour the unfiltered oil into the oil tank connected to the pump.
- Check for Air Leaks : Ensure there are no air leaks in the system that might affect the pressure during operation.
Step 4: Operation
- Start the Pump : Turn on the pump to begin circulating the oil into the filter press.
- Apply Pressure : Activate the hydraulic system to apply pressure to the filter plates. This pressure forces the oil through the plates, where it will be filtered.
- Monitor the Process : Keep an eye on the flow rate and pressure readings. Adjust the hydraulic pressure as necessary to maintain efficient filtration without overloading the plates.
Step 5: Collecting Filtered Oil
- Check the Outlet : Once the oil has been filtered, it will exit through the outlet port. Collect the filtered oil in a clean container.
- Inspect Filter Residue : After completing the filtration process, check the residue on the filter plates. This will give you an idea of the impurities removed.
Maintenance :
- Clean the Machine : After every batch operation, clean the press plates, filter cloths, and surrounding areas to prevent buildup of residue.
- Lubrication : Weekly lubricate moving parts according to the manufacturer’s specifications. Use the correct type of lubricant to avoid contamination.
- Check Electrical Components : Inspect electrical connections, controls, and indicators for any signs of wear or malfunction.
- Professional Inspection : Schedule a comprehensive inspection by a qualified technician to assess the condition of the machine. This includes checking all mechanical and electrical components.
Applications
:- Food Industry : In the production of edible oils such as olive oil, sunflower oil, and canola oil, oil filter presses are utilized to remove impurities like sediment and suspended solids from crude oil. This purification process enhances the quality and safety of the final product, making it suitable for consumption.
- Cosmetics : The cosmetic industry employs oil filter presses to refine oils used in skincare products. By filtering out impurities, these machines ensure that the oils are safe and effective for use in creams, lotions, and other beauty products.
- Waste Oil Recycling : The filter press is pivotal in the recycling of waste oils, separating valuable oil from sludge and other unwanted materials. This process not only conserves resources but also mitigates environmental impacts associated with oil waste.
