Brand: MILK MASTER

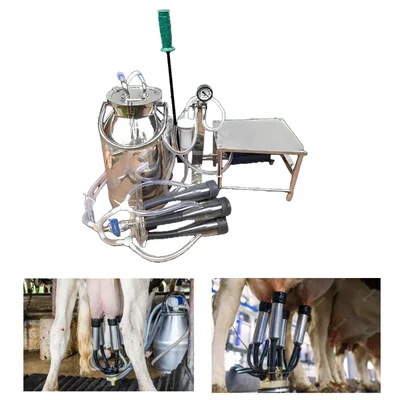

Commercial 20 Liter Manual SS Milking Machine with Sitting Arrangement
SKU: DM-KE-20236133
MRP : ₹15999
Offer Price : ₹14920 (Including GST)
Get extra ₹224 Discount (On Checkout)
Delivery By: Dec 28 - Dec 30
Qty:
BUY IN BULK
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
Commercial 20 Liter Manual SS Milking Machine with Sitting Arrangement
20 Liter Capacity
Single Bucket Milking Machine
Sitting System for the Milkman
Country of origin: India
Description
The Commercial 20 litres Manual Milking Machine is a premium quality machine designed for the purpose of extracting milk from cows and buffaloes reducing both time and labour and making the milking process hassle free without causing any discomfort to the livestock. The machine is manually operated, has a single stainless steel bucket with a capacity of 20 litres and ample vacuum suction which makes it easier to carry the milk extracted from the udders to the milking tank while maintaining a smooth flow.
Features
:- User-Friendly Operation : Equipped with intuitive controls, trolley type milking machines are designed for straightforward operation, reducing training time for new users.
- Efficient Milking Process : The integration of advanced technology leads to a faster milking process, reducing the time spent per cow while maximally extracting milk.
- Hygienic Milking Process : The milking process is hygienic because the user doesn't come in direct contact with the milk which reduces the chances of contamination, improving the hygiene standards.
Specification
:- Product Type: Single Bucket
- Brand: MILK MASTER
- Operation Mode : Manual
- Milk Bucket Material : Stainless Steel
- Applicable to : Cow and Buffalo
- Number of Buckets : Single Bucket
- Vacuum Speed : 350mm Hg max
- Milk Bucket Capacity : 20 Liters
- Time for milking : 4 to 7 min/cow (After habituating the cow/buffalo for some time)
- Weight : 16 Kg (Approx.)
Accessories
:- Ball Valve
- Claw
- Cluster
- Liner Cap
- Milking Pipe
- Pump Maintenance Kit
- Stool
- Vacuum Gauge
- Vacuum Pipe
- Vacuum Pump
Note :
- The liners have a snug fit on the cow's udders because of the food-grade flexible rubber material used.
- The cows and buffaloes need to be habituated for some time.
Usage
:Step 1 : Preparation
Before milking, ensure that you have all necessary items ready :
- Milk containers : Clean, sanitize containers to collect the milk.
- Udder preparation : Wash the udder with warm water to remove dirt and bacteria, and then dry it with a clean cloth to prevent contamination.
Step 2 : Setting Up the Machine
- Assembly : Assemble the milking machine according to the manufacturer's instructions. The machine comes with a base unit, a milk container, and teat cups.
- Positioning : Make sure the machine is placed on a stable surface near the animal you are milking.
- Adjustments : Check if there’s an adjustable vacuum control, and set it to the manufacturer’s recommended level to avoid causing discomfort to the animal.
Step 3 : Milking Process
- Calm the Animal : Ensure the animal is calm. You can do this by talking softly or offering a treat.
- Attach Teat Cups : Gently attach the teat cups to the animal's teats (udders). Make sure they fit securely but are not too tight, as this could cause pain.
- Start Milking : Begin operating the machine using the hand pump. Practice a steady and rhythmic motion to maintain milking pressure without abrupt changes.
- Monitor the Process : Keep an eye on the milk flow and duration. You may need to adjust the position of the teat cups occasionally to ensure all teats are adequately milked.
- Finish Up : Once milk flow slows down considerably, detach the teat cups carefully. Avoid jerking to prevent discomfort to the animal.
Step 4 : Storage
- Immediately after milking, transfer the collected milk into pre-prepared containers and store them in a cool, refrigerated area to preserve freshness.
Maintenance :
- Clean After Each Use : After every milking session, disassemble the machine and wash all components that come into contact with milk. Use warm, soapy water and a soft brush, paying special attention to the teat cups and milk container. Rinse thoroughly and allow to air dry.
- Lubrication : If applicable, apply a food-safe lubricant to any moving parts that facilitate operation, as recommended in the user manual.
- Inspect the Machine : Examine all parts for wear, including hoses, clamps, and the base unit. Make any repairs or replacements as necessary.
- Check Alignment and Functioning : Test the machine to ensure everything operates smoothly without unusual noises or resistance. This is also a good time to readjust the vacuum control if needed.
- Professional Servicing : Depending on your usage frequency, consider having a professional service the machine at least once a year to ensure its operational efficiency and safety.
Applications
:- Small-Scale Dairy Farms : Manual milking machines are particularly beneficial for small-scale dairy farms where farmers may have only one or two cows, goats, or sheep. These machines allow for efficient milking without the need for extensive infrastructure associated with larger dairy operations.
- Improved Milk Quality and Hygiene : Using a manual milking machine helps ensure cleaner milk by minimizing contamination risks that can occur during hand milking. The enclosed system reduces the likelihood of dirt, debris, or manure entering the milk, which is crucial for maintaining high-quality standards in dairy production.
- Time Efficiency in Daily Operations : Manual milking machines enhance time efficiency by allowing farmers to milk multiple animals simultaneously or quickly milk one animal at a time. This efficiency is particularly valuable during busy seasons when farmers need to manage various tasks on the farm.
