Brand: Phoenix
Phoenix 3 HP ( 2.2 KW) Double Stage Ring Blower for Agitating and Aerating Water in Spa ,Whirlpool, Swimming Pool, etc(Type-Single Phase)
SKU: SD-PB-20234887-C1
MRP : ₹53880
Offer Price : ₹44900 (Including GST)
Get extra ₹674 Discount (On Checkout)
Delivery By: Dec 27 - Dec 29
Qty:
BUY IN BULK
Type:
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
Phoenix Double Stage 3 HP Ring Blower comes with 185 M3/H capacity
Engine comes with 3 HP power
Maximum air pressure : 440 Mbar
Country of origin: India
Description
Descriptions :

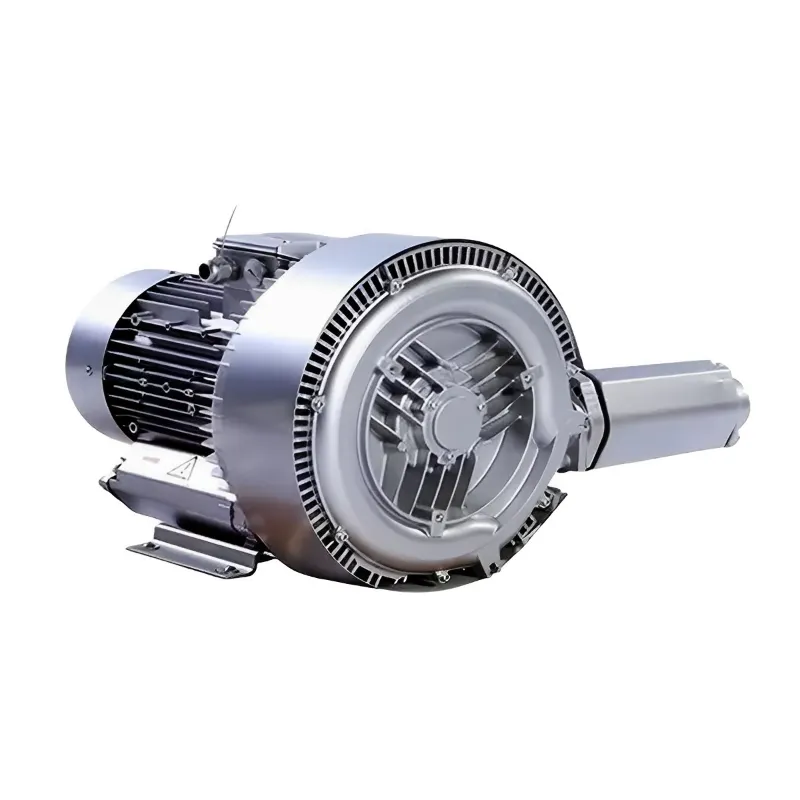

- Phoenix 3 HP (2.2 KW) Double Stage Ring Blower also known as a regenerative blower or side channel blower, is a type of positive displacement blower used to generate air or gas flow in various applications.
- It operates by utilizing the principle of centrifugal force and regenerative energy to create high-pressure or high-volume airflow. The key components and working principle of a ring blower include: Impeller: The blower contains a rotating impeller with multiple blades or vanes. As the impeller rotates, it draws in air or gas through the inlet port. Side Channels: The impeller pushes the air or gas outward into side channels or channels located on the periphery of the blower housing. These channels are often curved or spiral-shaped.
- It operates by utilizing the principle of centrifugal force and regenerative energy to create high-pressure or high-volume airflow. The key components and working principle of a ring blower include: Impeller: The blower contains a rotating impeller with multiple blades or vanes. As the impeller rotates, it draws in air or gas through the inlet port. Side Channels: The impeller pushes the air or gas outward into side channels or channels located on the periphery of the blower housing. These channels are often curved or spiral-shaped.
- Discharge: The pressurized air or gas is then discharged from the blower through the outlet port. Ring blowers offer several advantages in various applications: Compact Design: Ring blowers are often compact and lightweight, making them suitable for installations where space is limited
- Oil-Free Operation: Unlike some other types of blowers, ring blowers operate without the need for oil lubrication. This makes them ideal for applications where oil-free air or gas is required. Low Noise Level: Ring blowers typically produce less noise compared to other types of blowers, contributing to a quieter working environment. Wide Range of Pressure and Flow.
Features :
- Vacuum Pressure : 320 Mbar
- Air Pressure : 440 Mbar
- Power : 3 HP (2.2 KW)
Specifications :
- Product Type : Double Stage Ring Blower
- Brand : Phoenix
- Displacement : 185 M3/H
- Sound : 64 dB
- Weight: 32 K.g
Notes :
- Single Phase Ring Blower uses for Domestic purposes only.
- Three Phase Ring Blower uses for Industrial Purposes only.
Specifications
:- Product Type: Ring Blower
- Brand: Phoenix
