Brand: Generic (Imported)

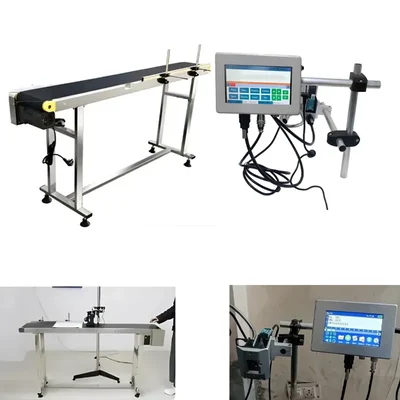

Smart Electric 59 x 7 inch Conveyor Belt Machine with Inkjet Printer
SKU: SD-SR-20232877
₹44000 (Including GST)
MRP : ₹48999
Get extra ₹660 Discount (On Checkout)
Delivery By: Apr 6 - Apr 8
Qty:
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
SMART Conveyor Belt Machine with Inkjet Printer
Belt Width 190 mm
Power Source Electric
Country of origin: China
Description
This conveyor system is a fast and efficient mechanical handling apparatus for automatically transporting loads and materials within an area. This system minimizes human error, lowers workplace risks and reduces labor costs — among other benefits. They are useful in helping to move bulky or heavy items from one point to another. A conveyor system may use a belt, wheels, rollers, or a chain to transport objects.
Features
:- The machine helps to make product ready to pack by forwarding the package or material to another end sometimes with printing if printer is attached with this machine.
- Reasonable structural design and simple and quick replacement of easily-worn parts can realize the combination of functions according to the options of the user.
- This machine is suitable for automatic printer to be attached for automated date, expiry, batch code, MRP etc.
- Product marked as Intelligent Advance Packing Machinery section with best appropriate performance.
Specification
:- Brand: Generic (Imported)
- Weight (Approx.) : 44 kg
Conveyor Belt Machine :
- Body Material : Mild Steel
- Power Source : Electric
- Power : 60 W
- Voltage : AC 220V / 50 Hz
- PVC Belt Width : 190 mm
- PVC Belt Thickness : 2 mm
- Transport Speed : 0-30 m/min
- Dimension (L x W x H) : 1500 x 250 x 750 mm
Printer :
- Printing Technology : Online Thermal Inkjet Printer
- Connector Type : USB
- Printer Output : Monochrome
- Resolution : 5 inch display / 12.7cm.
- Printing Area : 12.7 inch / 32.258cm
- Printing Sensor Available
- Temperature: 0 - 42 Celsius
- Capacity : 42 ml Ink Cartridge
- Printing Material : Board, carton, stone, pipe, cable, metal, plastic product, electronic, etc.
- Maximum Print Speed (Colour) : 10 Pages per second
- Max Print speed Monochrome : 6 Pages per second
- Power Consumption : Single Phase 220 V
- Special Feature : Portable
Note : If you make full advance payment on this product then you will get instant discount on your purchase.
Usage
:Setup :
- Position the conveyor belt in the desired location and ensure it’s properly aligned.
- Connect the inkjet printer to the machine, ensuring correct positioning over the conveyor path.
Load Items :
- Place the items (e.g., packaging or products) onto the conveyor belt for printing.
Adjust Settings :
- Set the conveyor speed using the machine's control panel, matching the speed to the print job.
- Adjust the inkjet printer settings, including print type, date, or code to be printed.
Start the Process :
- Activate the machine. The conveyor belt will move the items, while the inkjet printer prints desired information (such as batch codes, dates, or barcodes) onto the items as they pass under the printer.
Monitor and Finish :
- Monitor the print quality and adjust if necessary. Once printing is complete, the items will continue moving along the conveyor for collection or further processing.
Maintenance :
- Clean the Conveyor Belt : Regularly clean the belt to remove dirt, debris, or ink residues. Use a soft cloth or brush with mild detergent to avoid damage.
- Check Electrical Connections : Inspect and tighten electrical connections periodically to avoid malfunctions. Look for any damaged wires or components.
Applications
:- Packaging : Printing batch codes, manufacture dates, and barcodes on products or packaging materials as they move along the conveyor.
- Labeling : Applying labels or product information directly onto goods during production or before shipping.
- Food Industry : Printing expiry dates, lot numbers, and safety information on food packaging.
- Manufacturing : Marking serial numbers, logos, and other identifiers on components or finished products.
