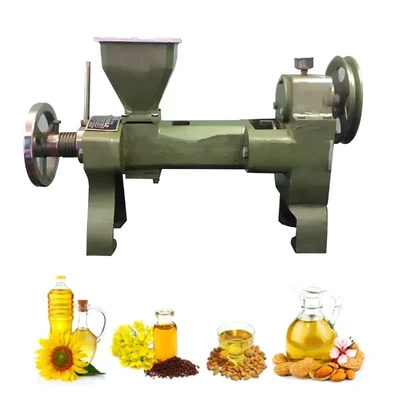

Heavy Duty 12 Patti Oil Seeds Press/Expeller Machine, 10-15Kg Per Hour with 3 Hp Motor
SKU: DM-IR-20235927
₹57565 (Including GST)
MRP : ₹59999
Qty:
Get Best Price
Short Description
Heavy Duty 12 Patti Oil Seeds Press/Expeller Machine With Table
Machine Speed 350 Rpm
Capacity 10-15 Kg Per Hour
Country of origin: India
Description
The Patti Oil Press Machine, also known as an Oil Expeller, is a device used to extract oil from a variety of seeds. This machine is intended to efficiently crush and press oil-bearing seeds to extract the oil content. This machine has capabilities to meet a wide range of production needs, from small-scale operations to huge manufacturing facilities. The machine is equipped with a 3 HP motor and has a semi automatic operation with a capacity of 10-15 kilograms per hour. The machine is made using durable materials to make it withstand the commercial usage requirements.
Features
:- Automatic Operation : The machine is fully automatic, allowing for continuous operation without the need for manual intervention, thus enhancing productivity.
- Ease of Maintenance : The machine is designed for easy maintenance with accessible components, which helps in reducing downtime during repairs or servicing.
- Powerful Motor : The machine is equipped with a 3 HP powerful motor which helps in carrying out oil extraction operations with ease.
- Production Capacity : The machine has a production capacity of up to 15 kg per hour, making it suitable for both small-scale and medium-scale oil extraction operations.
Specification
:- Brand: Generic ( Made in India )
- Material : Cast Iron
- Motor Power : 3 HP
- Rotation Speed : 350 RPM
- Operation Type : Semi-Automatic
- Machine Type : Cold Press
- Usage/Application : Multi Seed Oil Extraction
- Capacity : 10-15 Kg/ Hr
- CB Size : 6 inches
- Phase : Single
- Dimension : ( LXWXH ) 26 X 8 X 14 inches (66.04 x 20.32 x 35.56 cm)
Percentage of Oil Content in Seeds :
- Ground Nut Without Husk 40 - 42 %
- Groundnut With Husk 25 - 32 %
- Linseed 35 - 39 %
- Mustard 34 - 39 %
- Till 40 - 50 %
- Coconut (Khopra) 60 - 65 %
- Karadi 20 - 25 %
- Sunflower 28 - 35 %
- Jagani (Karia) 35 - 38%
- Cotton Seed 14 - 16 %
- Castor Seed 32 - 35 %
- Neem Seed 03 - 05%
- Karanja 24 - 28%
- Mohwa (Toli) 32 - 38 %
- Palash 8 - 10%
- Kusum 30 - 34%
- Undi 50 %
- Pissa 30 - 32 %
- Jathtropha 25 - 32 %
- Almonds 40 %
Note :
- Suitable for extracting oil from edible seeds only.
- The video is for reference purposes. The stand is included with the machine.
Usage
:Step 1: Preparation
- Choose Your Seeds : Select the seeds or nuts you wish to extract oil from. Common choices include sesame, sunflower, and groundnut.
- Clean the Seeds : Ensure that the seeds are clean and free from impurities. Remove any dirt, stones, or foreign materials.
Step 2: Adjusting Settings
- Feed Adjustment : Depending on the seed size and type, adjust the feed rate to ensure a smooth extraction process.
Step 3: Oil Extraction
- Loading the Seeds : Place the cleaned seeds into the hopper at the top of the machine. Be cautious not to overload it, as this can hinder performance.
- Starting the Machine : Switch on the motor and let the machine begin the extraction process. The seeds will be crushed and oil will start flowing out.
- Monitoring the Process : Keep an eye on the extraction process. Ensure the oil is being expelled correctly and check for any unusual noises or issues.
Step 4: Collecting Oil
- Oil Collection : As the oil flows out, collect it in a clean container placed under the spout.
- Filter the Oil : Once you have collected the oil, consider filtering it to remove any remaining seed particles or impurities.
Maintenance :
- Clean the Machine : Regular cleaning is essential for the longevity of the machine. Use a soft cloth to wipe down the exterior and ensure all residues are removed from the hopper and press chamber.
- Maintenance Check : Periodically check for wear and tear in components, lubricate moving parts as required, and ensure all electrical connections are intact.
- Regular Lubrication : Lubricate the machine’s moving parts as per the manufacturer's recommendations. Use high-quality lubricants that are compatible with the machine's specifications.
- Annual Servicing : Schedule professional servicing at least once a year. Technicians can identify and address potential issues that may not be apparent during regular maintenance.
Applications
:- Extraction of Cooking Oils : The primary application of the 12 Patti Oil Press Machine is to extract cooking oils from various oilseeds such as mustard, sunflower, peanut, sesame, and cottonseed. The machine efficiently presses the seeds to yield high-quality oil suitable for culinary uses.
- Production of Edible Oils : Beyond just cooking oils, this machine can be used to produce refined edible oils that meet health standards for consumption. The extracted oil can undergo further refining processes to enhance its quality and shelf life.
- Animal Feed Production : The by-products generated from the oil extraction process (such as cake or meal) can be repurposed as high-protein animal feed, providing nutritional benefits for livestock.
