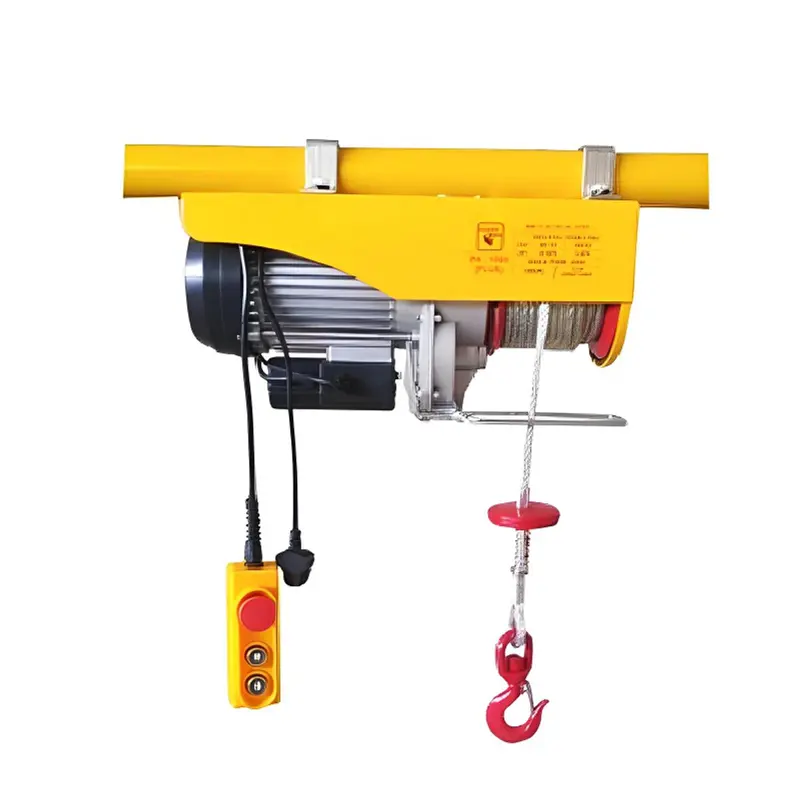

HT 500 kg Electric Hoist with 1.5 HP Copper Winding Motor, 5 mm diameter & 20 meter long Wire Rope

4.7 star

Easy Return
& Refund

Quality
Assurance

Trusted
Delivery

After Sales
Assistance

Buyer
Protection

Short Description

HT 500 kg Electric Hoist ( PA 500 )

Rated Voltage 220V, 50Hz

Input Power : 1050 W

Motor Power : 1.5 HP

Rated Capacity 500 Kg

20 m Wire rope, 5 mm diameter

Remote-controlled electric hoist

Country of origin: China

Description

HT 500 kg Electric Hoist with 1.5 HP Copper Winding Motor, 4 mm diameter & 20 meter long Wire Rope

Description :

• The raising, lowering, and transferring of objects and goods is done with the use of material handling equipment called electric hoists. They are mounted above the ground, and an electric motor drives them. Electric wire rope and chain hoists are the two primary varieties of electric hoists.
• Mini Electric Hoist 250/500kg with Double Hook is capable of lifting 500kg of weight with the aid of double hook. It is designed to operate electrically, with an emergency push button in red to prevent any casualty.


Features :

• With an emergency stop switch
• Reinforced breaking switch with position limit
• Protection class up to IP54
• With a thermal prevention device
• Compact and small size design

• Long life span and high efficiency
• Applicable for most industry, business, handicraft industry and service industry
• Can be used in conjunction with many types of electric or manual cranes such as the single-girder crane, the double-girder crane, the cantilever crane and the gantry crane

Specifications :

• Product Type : Electric Hoist

• Brand : HT

• Model Number : PA 500
• Phase : Single Phase
• Winding : Copper Winding
• Working : Remote Controlled

• Rated Voltage : 220V, 50Hz

• Input Power : 1050 W
• Motor Power : 1.5 HP
• Single Hook Load Capacity : 250 kg
• Double Hook Load Capacity: 500 kg
• Lifting speed : Single Hook & Double Hook - 15 m/mins (1500 cm/min)
• Lifting Height : Single Hook - 20m, Double Hook - 10m
• Wire Rope Diameter : 5 mm
• Wire Rope Length : 20 Meter  (2000 cm)
• Continuous Working Capacity : 2 hours (Approx.)

Applications :

• Warehouses, automotive servicing, machine shops, manufacturing facilities, factories, building sites, and railroad construction.


In The Box :

• 1 Electric Hoist.
• 1 Electric Hoist Remote.
• 1 Eye Hook.
• 1 Pulley Hook.
• 20-meter Wire Rope.
• Mounting Case
• Nut bolts and Clamps

Note :

• All these accessories are assembled with the machine.
• The video shown is for illustration purposes only and may not be an exact representation of the product. The color and Shape of the product may vary.

Specifications

 :

• Brand: HT
• Power : 1.5 hp
• Weight (Approx.) : 16.2 kg
• Load Capacity : 500 kg
