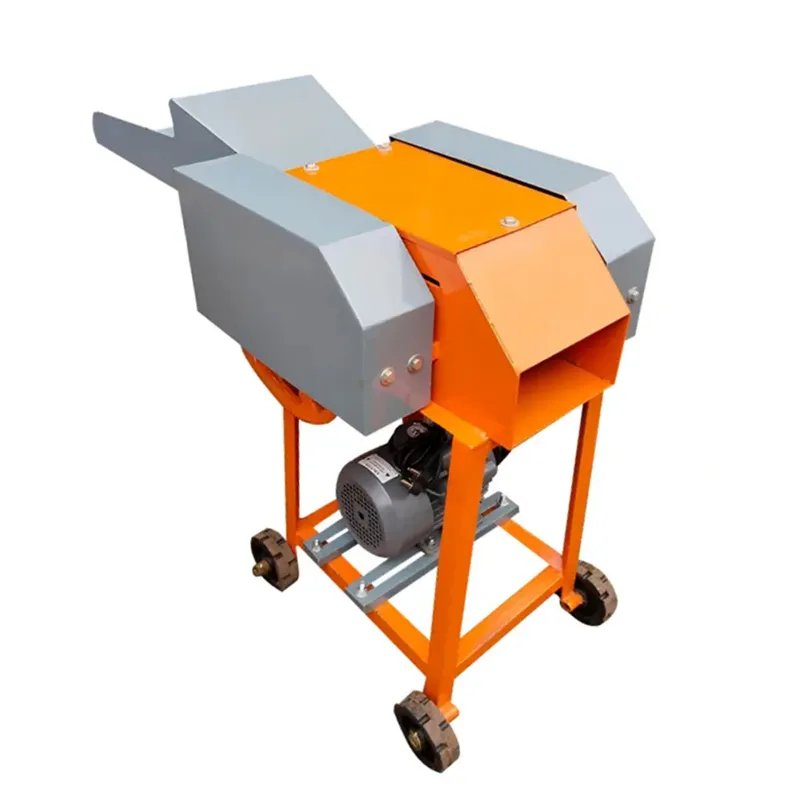

Heavy-Duty Horizontal Chaff Cutter/Grass Cutter 800-1000 Kg/hr With 2 HP Motor and 1 Year Warranty
SKU: SD-HC-20232575
₹31890 (Including GST)
MRP : ₹47500
Get extra ₹478 Discount (On Checkout)
Out of Stock
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
Horizontal Chaff Cutter/Grass Cutter Machine with 2HP Motor
800-1000 kg/hr production Capacity
Useful for Animal Feed, Dairy Farming, Goat Farming, Sheep Farming, etc.
Country of origin: India
Description
Chaff/Grass cutters are essential equipment in agriculture because they allow farmers to process vast amounts of fodder efficiently. By cutting straw or hay into smaller pieces, chaff cutters make it easier for animals to digest the fodder, resulting in improved nutrient absorption. In addition to their basic function of cutting fodder, chaff cutters can be used to shred corn stalks, sugarcane tops, and other crop leftovers into animal feed. This machine is equipped with a 2HP copper winded motor and it consists of 3 sharp cutting blades which helps in achieving uniform cutting results aiding the digestion process in animals and preventing them from rejecting any part of their meal.
Features
:- Cutting Mechanism: This Chaff cutter is equipped with high quality blades that are designed for longevity. These blades can efficiently cut through various types of fodder, including green and dry materials.
- Energy Efficiency: Designed to minimize energy consumption while maximizing output, these machines save time and labor costs associated with manual cutting.
- Simple Controls: Most modern chaff cutters have straightforward controls that make them easy to operate even for individuals with minimal training.
Specification
:- Brand: HARI OUM
- Material : Mild Steel
- Model No. : H-100
- Motor Power : 2 HP
- Motor Winding : Copper
- Speed : 576 RPM
- Power Source : Electric
- No. of Blades : 3 (2 Carbon Steel and 1 Fixed)
- Output Capacity : 800-1000 kg/hr
- Weight : 90 Kg (Approx.)
Warranty Parts : Motor
Note :
- Covered in Warranty : Manufacturing Defects
- Not Covered in Warranty : Physical Damage
- Color of the machine may vary.
Usage
:1. Preparation and Setup:
- Location: Choose a flat, stable surface for the chaff cutter. Ensure that the area is clear of any obstacles or flammable materials.
- Power Supply: The user needs to connect a motor to an appropriate power source, in order to start working.
- Safety Gear: Wear appropriate safety gear, including gloves, goggles, and ear protection, as operating machinery can be noisy and potentially hazardous.
2. Loading Material:
- Prepare the material (straw or hay) you wish to cut. It should be dry and free from foreign objects like stones or metal pieces.
- Feed the material into the hopper of the chaff cutter slowly and steadily. Avoid overloading the machine as this can cause jams or damage.
3. Starting the Machine:
- Turn on the power switch of the motor-operated chaff cutter.
- Allow the machine to reach its full operational speed before feeding in more material.
4. Cutting Process:
- As you feed material into the hopper, monitor its progress through the cutting mechanism.
- Adjust your feeding speed based on how quickly the machine processes the material; do not force too much at once.
5. Collecting Chaff:
- The cut chaff will exit from a designated outlet. Position containers or bags underneath this outlet to collect the chopped material efficiently.
- Ensure that no one stands directly behind or near this outlet during operation.
6. Shutting Down:
- Once you have finished cutting, turn off the motor using its designated switch.
- Wait for all moving parts to come to a complete stop before attempting any maintenance or cleaning.
Maintenance:
- Regular Inspections: Conduct regular checks on the chaff cutter parts. Pay particular attention to bolts and nuts; if any are loose, tighten them immediately to prevent operational issues.
- Lubrication: Every part of the chaff cutter requires lubrication. Clean the components thoroughly before adding lithium grease. Ensure that the gearbox is lubricated with oil every season, while the main bearing should be lubricated at least once a year.
- Dust Removal: When adding lubricating oil, it is crucial to remove any dust or debris to avoid contamination that could impair functionality.
- Wear and Deformation Checks: Regularly check all parts for signs of wear or deformation. If any issues are identified, replace those parts promptly to maintain safe operation.
Applications
:- Fodder Preparation & Nutritional Enhancements: The Chaff cutter helps in the preparation of fodder for animals. The materials are cut into uniform pieces which retain the required nutrients in it.
- Waste Reduction: It helps in efficient waste management as no plant product is left out as waste. They are utilized by converting them into fodder for cattle.
- Time & Labor Savings: This machine not only helps in fodder preparation but also saves a lot of time by automating the process of cutting fodder and saving both time and labor.
- Ensures Animal Health: As the chaff cutter helps in achieving uniform cutting size of the plant products which are used as fodder for the animals. It ensures that the animals don't reject any part of their meal which aids the digestion of the animals and is considered appropriate for their health and well-being.
- Feed Cost Management: The cost incurred behind purchasing feed for cattle is saved by using the chaff cutter, as it acts as a lone fodder production machinery and helps in converting green waste into fodder for cattle and other animals.
