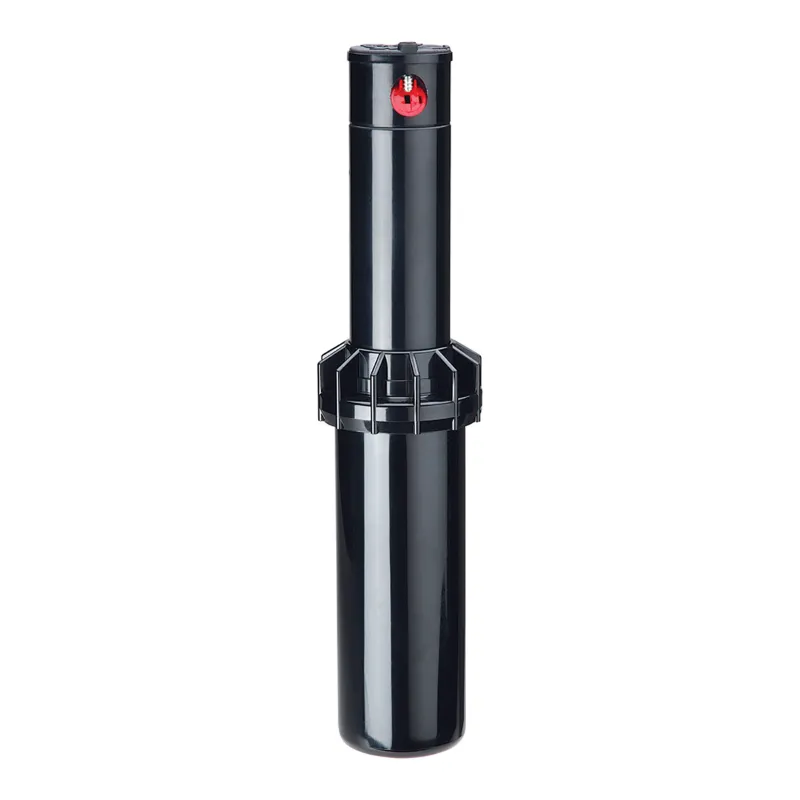

RPS75 3/4 Inch Gear Drive Rotor 4 Inch Pop-Up with Spray Distance 6.7 to 15.5 mtr

Features

• Right Position start rotor rotates counterlock wise feom fixed right start position.
• Flow control for reducing the redious by retaining the uniformity of distribution.
• Riser fits in existing hunter PGP cans simply unscrew the existing riser from the PGP can and replace with the RPS075 riser.
• Top adjustment-no training necessary, the RPS075 has the same adjustment procedure as the hunter PGP.
• Full and part circle rotation provides a full range of adjustment from 400-3600.
• Non Flusing wiper seal reduces leaks caused by debris trapped under seal.
• 3/4" (1.905 cm approx) Inlet replaces all standard rotors.
• Ideal for low flow application.
• Universal adjustment tool-compatible with exiting hunter products .
• Rubber cover seals out dirt and increases product durability.
• Wide selection of nozzles including standard and low angle, provides flexibility in system design.
• Available with anti drain check valve option.

Specification

• Model : RPS075
• Thread : 3/4” (1.905 cm approx) Female Threaded
• Arc Adjustment Range : 40º to 360º
• Flow Range : 1.9 - 32.6 l/m 2
• Pressure Rating : 2 - 4.8 kg/cm2
• Precipitation Rate : 3 to 10 mm/h
• Overall Height (Popped Down) : 7 3/8” (18.7325 cm approx)
• Recommended Spacing :  7.6 to 13.7 mtr
• Radius :  6.7 to 15.5 mtr
• Nozzle Trajectory : 25º
• Low Angle Nozzle Trajectory : 11º
• 8 Standard and 4 Low Angle Nozzles Included : Yes
• Riser Height : 4” (10.16 cm approx)

Applications

• A RPS075 gear drive rotor, primarily manufactured by K-Rain, is primarily used for residential and light commercial irrigation systems
