Brand: Generic (Imported)

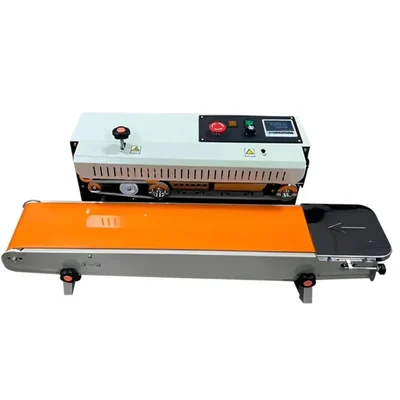

Economical 3 Kg Horizontal Continuous Band Sealer
SKU: SD-SP-20233775
Price : ₹13399 (Including GST)
Get extra ₹201 Discount (On Checkout)
Delivery By: Dec 27 - Dec 29
Qty:
BUY IN BULK
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
Horizontal Continuous Band Sealer
Sealing Speed 0-12 meter per min
Sealing Width 6-12 mm
Country of origin: China
Description
This continuous band sealer can seal continuously the high graded pouches such as laminated pouches. It is very easy to operate and it is widely used in medicine shops, merchandise shops, food packaging factories and other food industries. All the operator needs to do is feed bags into the machine. Filled bags move along on a motorized conveyor belt. The machine guides the top of each bag through the sealing process.
Features
:- Adjustable Temperature Range : The temperature range of the Horizontal MS Continuous Band Sealer is adjustable from 0°C to 300°C. This flexibility enables the sealing of a wide variety of materials, accommodating different thicknesses and compositions.
- Variable Speed Regulation : This machine offers variable speed regulation, with a sealing speed that can reach up to 12 meters per minute.
- Easy Operation : The design of the sealer facilitates easy operation; operators simply need to feed bags into the machine, which automatically guides them through the sealing process on a motorized conveyor belt.
- User-Friendly Interface : The design includes an intuitive user interface that simplifies operation. Users can easily make quick adjustments to settings without extensive training, which enhances productivity and reduces downtime.
Specification
:- Product Type: Horizontal
- Brand: Generic (Imported)
- Power Source : Electric
- Voltage : 220 V
- Frequency : 50 Hz
- Power : 500 W
- Material : Mild Steel
- Sealing Speed : 0-12 meter per min
- Sealing Width : 6-12 mm
- Temperature Range : 0-300°C
- Package Material : High Graded Pouches such as Laminated Pouches
- Max. Conveyor Loading : 3 kg
- Weight : 13 Kgs (Approx.)
Usage
:- Preparation : Ensure the machine is placed on a stable, flat surface. Plug in the sealer and turn it on, allowing it to heat up for a few minutes.
- Setting Temperature : Adjust the temperature setting according to the type of material being sealed.
- Feeding the Material : Place the bags or pouches that need sealing on the conveyor belt. Ensure they are aligned properly for consistent sealing.
- Sealing Process : As the bags move through the sealer, they will be heated and sealed automatically. Monitor the process to ensure proper sealing without overheating.
- Cooling : After passing through the sealing area, allow sealed bags to cool down before handling them further.
Maintenance :
- Regular Cleaning : Ensure that the sealing area is cleaned regularly to prevent contamination and buildup of residues.
- Electrical Components Inspection : Periodically inspect electrical connections, wires, and components for any signs of wear or damage.
- Routine Testing : Conduct routine tests with sample materials to ensure that the machine is functioning correctly and producing quality seals.
Applications
:- E-commerce Packaging : With the rise of online shopping, it is increasingly used for sealing packages efficiently during fulfillment processes.
- Industrial Products : The machine can also be employed in sealing industrial goods such as chemicals or hardware items that require secure packaging.
- Food Packaging : It is commonly used to seal bags containing snacks, grains, and other food products to ensure freshness and prevent contamination.
- Pharmaceuticals : The sealer can be utilized to package pharmaceutical products, maintaining sterility and extending shelf life.
Shipping Weight & Dimensions
:
Verified Package Dimensions
(L X W X H)
: 86 cm X 40 cm X 33 cm
Package Weight
:
18.55 Kg
