Brand: Nobel

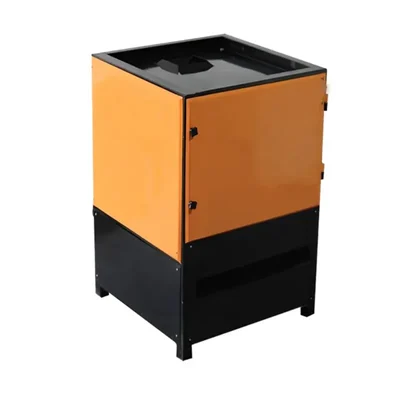

Semi Automatic Multiple Supari Cutting Machine
SKU: SI-MA-10249
₹110000 (Including GST)
MRP : ₹135000
Get extra ₹1,650 Discount (On Checkout)
Delivery By: Feb 13 - Feb 15
Qty:
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
Semi Automatic Cutting Machine
Capacity : 12 to 18 Kg /Hr
Cutting Thickness : 1-5 mm
Country of origin: India
Description
This supari cutting machine, also known as a betel nut cutting machine, is specially designed for the purpose of slicing or cutting betel nuts (supari) into smaller pieces. That cutting machines are commonly used in betel nut processing units, where large quantities of betel nuts need to be cut efficiently and uniformly. This machine help streamline the production process, increase efficiency, and ensure consistent product quality. Additionally, they contribute to labor savings by automating the betel nut cutting process.
Features
:- Cutting Capacity : The machine has a production capacity that typically ranges from 12 to 18 kg per hour, making it suitable for small to medium-scale operations.
- Operation Mode : It operates in a semi-automatic mode, which means that while it automates certain processes, some manual intervention is still required during operation.
- Electricity Connection : The machine runs on a single-phase electricity connection, allowing it to be used in various settings where such power supply is available.
- Cutting Method : It employs a blade cutting method, ensuring precise and clean cuts of supari.
Specification
:- Product Type: Dry Fruit/Supari Cutting Machine
- Brand: Nobel
- Weight (Approx.) : 95 kg
- Material : Mild Steel
- Power Source : Electric
- Voltage : 220 V
- Phase : Single
- Motor : 0.5 HP
- Motor Speed : 1440 RPM
- Capacity : 12 to 18 Kg /Hr
- Cutting Speed : 360 RPM
- Power Consumption : 1 kwh
- Cutting Function : Semi Automatic
- Cutting Method : Blade
- Blade Material : COSMO (Made in Germany)
- Cutting Thickness : 1-5 mm
- Max Cutting Length : 75mm
- Max Cutting Thickness : 5mm
- Blade Dimensions : 175 x 3.5 x 50 mm
- Dimension (L x W x H) : 18 x 25 x 22 inch (45.72 x 63.5 x 56 cm)
- Weight : 95 Kg (Approx.)
Usage
:1. Preparation :
- Ensure the machine is placed on a stable and flat surface.
- Check that the power supply is compatible with the machine’s requirement of 220 volts.
2. Setup :
- Connect the machine to a power source using the appropriate electrical outlet.
- Make sure all safety guards and covers are securely in place before operating.
3. Loading Supari :
- Load the betel nuts (supari) into it.
- Do not overload; ensure there is enough space for proper cutting.
4. Operation :
- Turn on the machine using the main power switch.
- Activate the cutting mechanism as per instructions (usually via a start button).
- Monitor the process to ensure consistent cutting and prevent jams.
5. Post-Operation :
- Once cutting is complete, turn off the machine and unplug it from the power source.
Maintenance :
- Regular Cleaning : Ensure the machine is cleaned after each use to prevent residue buildup. Use a soft brush and cloth to remove any particles from the blades and cutting area.
- Electrical Checks : Inspect electrical connections for any signs of wear or damage. Ensure that all wiring is secure and that there are no exposed wires.
Applications
:- Snack Production : The machine can also be employed in the production of snack items that incorporate betel nuts. By cutting supari into specific shapes or sizes, manufacturers can create products like flavored betel nut chips or other snack variations that appeal to consumers.
- Commercial Betel Nut Processing : The primary application of this machine is in commercial settings where large quantities of betel nuts need to be processed efficiently.
- Catering Services : Catering companies that provide traditional Indian cuisine often include supari as part of their offerings. The mini diamond cutting machine enables these services to prepare large quantities of finely cut supari quickly, ensuring they can serve fresh products at events.
- Exporting Businesses : For businesses involved in exporting betel nuts or related products, having a reliable cutting machine ensures they can meet international standards regarding product size and quality, making them competitive in global markets.
Shipping Weight & Dimensions
: Package Dimensions
(L X W X H)
: 579.12 cm X 518.16 cm X 1036.32 cm
Package Weight
:
105.00 Kg
