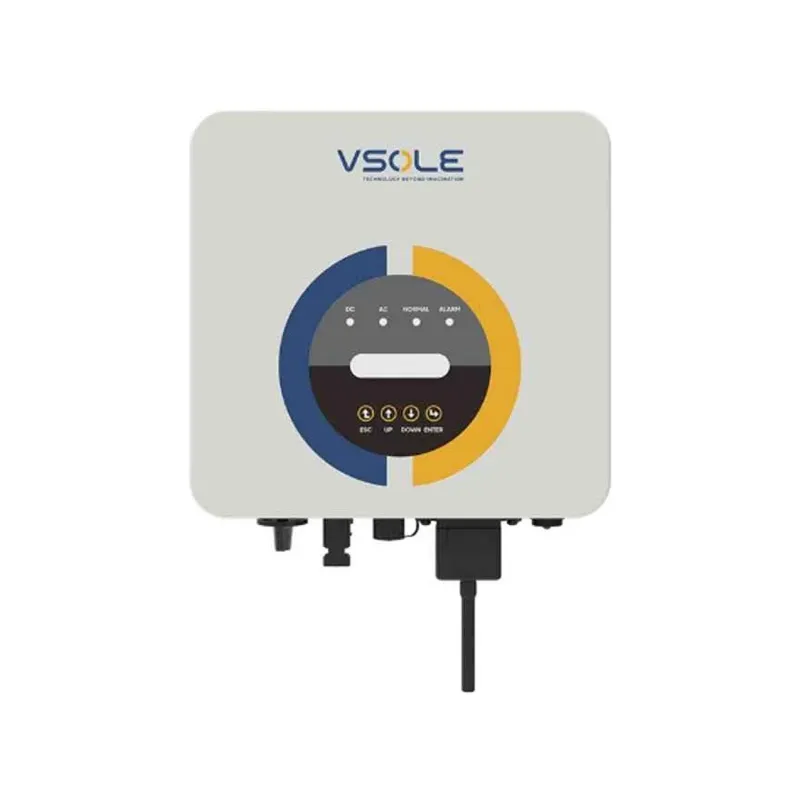

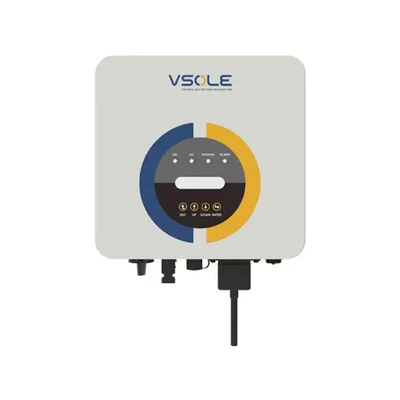

Vsole 3kW Single Phase MPPT Grid Tie Inverter With 10 Years Warranty for Residential and Commercial Solar Panel Systems

Easy Return
& Refund

Quality
Assurance

Trusted
Delivery

After Sales
Assistance

Buyer
Protection

Short Description

3 KW Solar Inverter

Single Phase

Country of origin: India

Description

The Vsole 3 Kw Single Phase MPPT Grid Tie Inverter (VS-301S) is a cutting-edge solar inverter designed to optimize the performance of your solar power system. As part of the Vsole brand, known for its advanced technology and reliability, this inverter features MPPT technology. This technology ensures that your solar panels operate at their maximum efficiency, converting sunlight into usable energy with an impressive MPPT efficiency of over 99%.

With its grid tie functionality, this inverter seamlessly integrates with your existing power grid, allowing you to not only save energy but also potentially sell excess power back to the grid. The Vsole VS-301S is a single-phase inverter, suitable for use in residential and small commercial settings.

Operating humidity is not a concern with this inverter, as it is designed to operate flawlessly in environments with humidity ranging from 0% to 100%. The LED display combined with the LCD display provides clear and comprehensive information about the operating status and performance of your solar power system. Furthermore, the frequency range of 50 Hz, with a deviation of just +/- 5%, ensures stable and reliable power output.

Overall, the Vsole 3 Kw Single Phase MPPT Grid Tie Inverter (VS-301S) is a top-of-the-line solar inverter that delivers exceptional performance and efficiency. With its advanced MPPT technology, high-rated output current of 14.3 Amps, and user-friendly display, it is an excellent choice for anyone looking to harness the power of solar energy.

Features

 :

• On grid inverter.
• DC Overloading Upto 10%.
• Fan-Less Natural Cooling Models.
• High DC/AC Ratio for more Yields.
• RS485, Remote Monitoring (Wi-Fi/GPRS).
• User Friendly Web & Mobile App Monitoring.
• Zero Export Enabled Models (External CT Required).
• Inbuilt Surge Protections at both AC & DC Side.
• Compact & Light Weight Design for an Easy Installation.
• Multiple MPPT Design with IDA Technology (Intelligent Disturbance Algorithm).
• Special External Colour with Epoxy Novolac Coating for Better Heat Management.
• H-Bridge & T-Type Three-Level Topology & Enhanced SPWM (Space Pulse Width Modulation).

Specification

 :

• Brand: Generic ( Made in India )
• Weight (Approx.) : 4.8 kg

• Ambient Temperature Range : -25 to 65 deg C
• Capacity : 3 kW
• Display : LED with LCD Display
• MPPT Efficiency :  >99 %
• Max. Euro Efficiency : 97.3 %
• Max. Conversion Efficiency : 97.5 %
• Frequency Range : 50 Hz (+ -5%)
• Model : VS-301S
• Number of MPPT :1
• Number of Phases : Single Phase
• Operating Humidity : 0-100 % Operating Voltage Range : 140-285 V
• Output Power : 3 kW
• Power Output : 0.8 Leading to 0.8 Lagging
• Protection : IP65
• Rated Grid Voltage : 230 V
• Rated Output Current : 14.3 Amp
• Short Circuit Current MPPT :  20 & 30 Amp
• THDI : <3 %
• Technology : MPPT
• Type of Product : Grid Tie/On Grid
